HRTP160 Hedge Cutter - NEW STOCK ARRIVING LATE SEPTEMBER - PRE ORDER NOW !

SKU: HRT-HRT160
Regular price $8,990.00 Inc. GST
Model Number

Multiple Delivery Options
Reliable Customer Support
Quality You Can Trust
CE Certification Standards

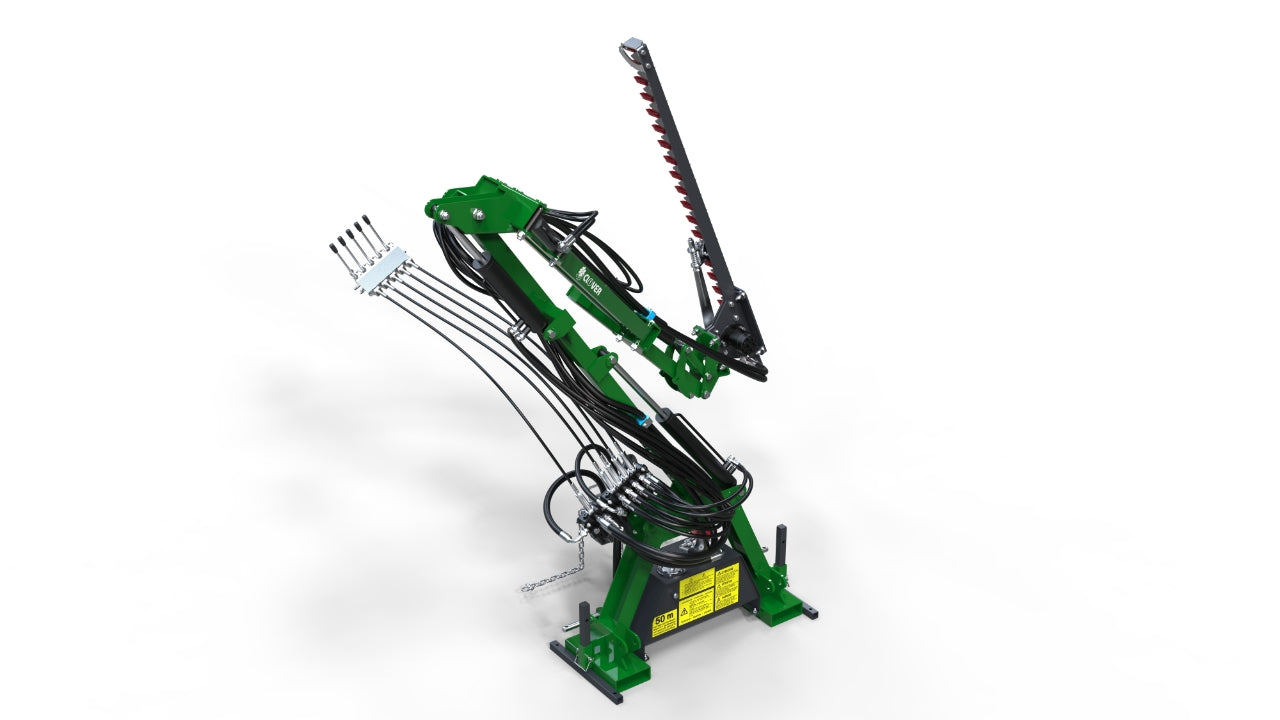

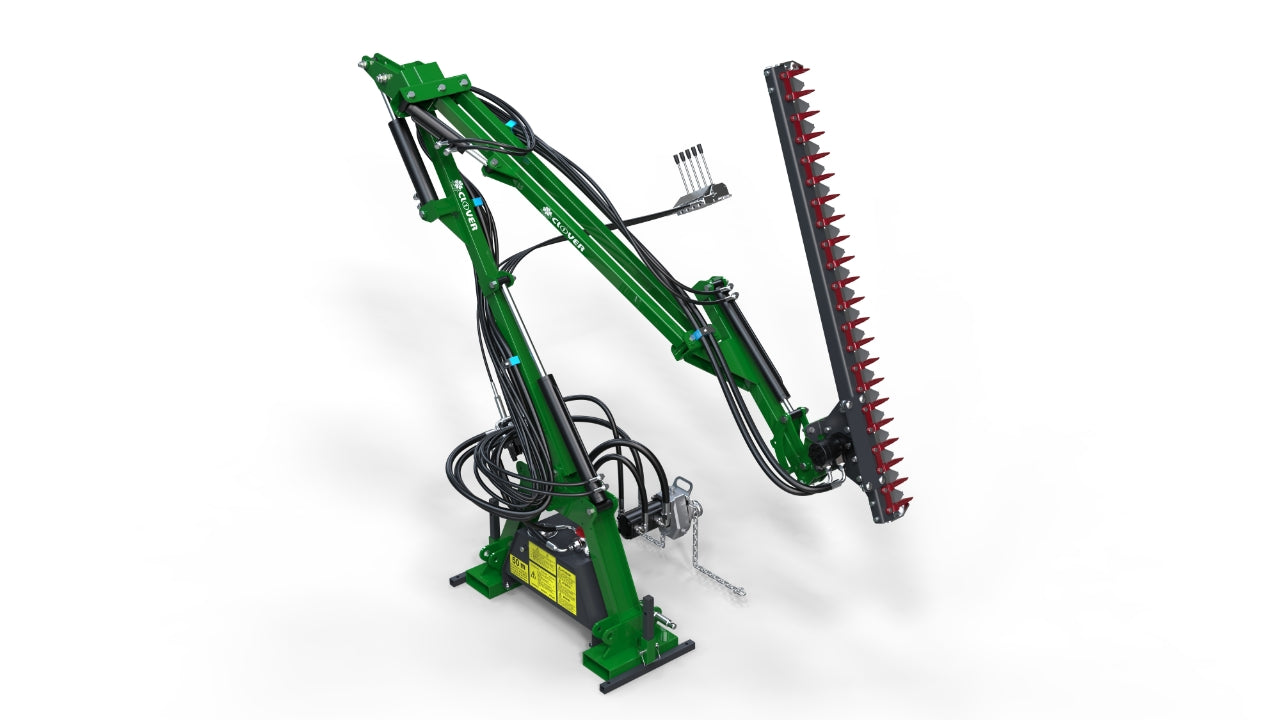

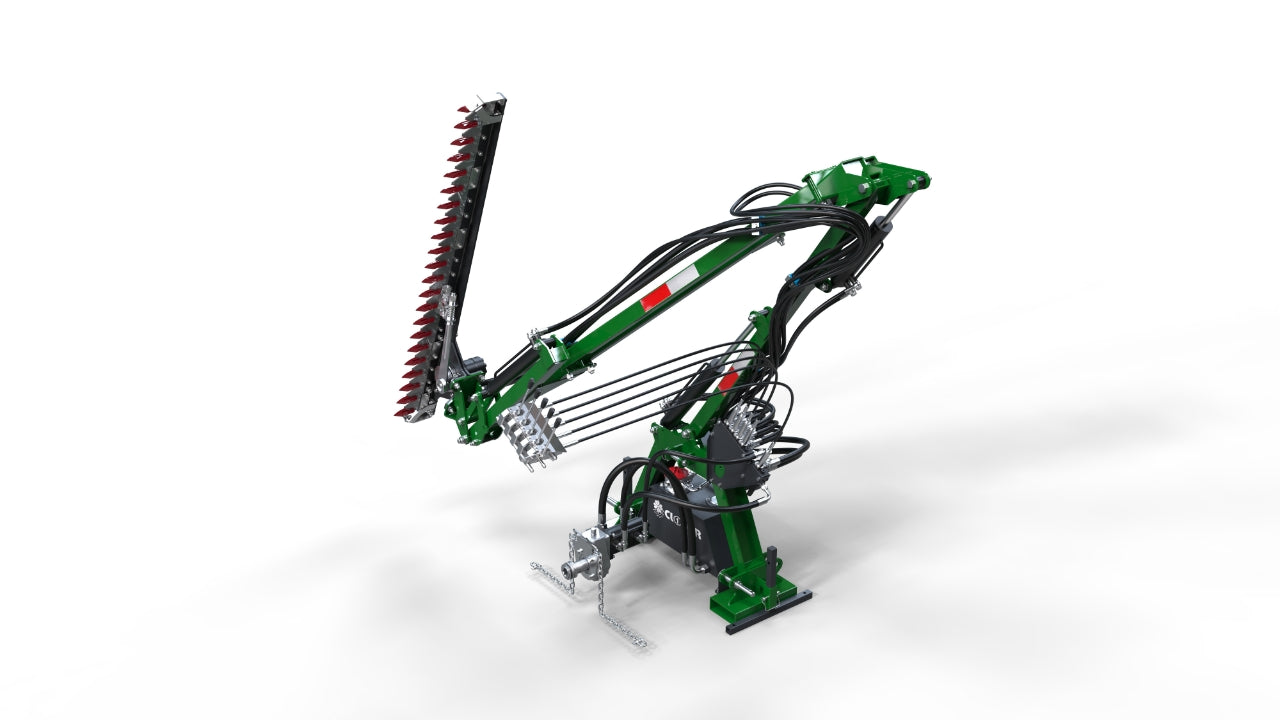

HRTP160 Hedge Cutter For 25-130 HP Tractors, Two-Arm Boom, Bidirectional Cutting, Hydraulic System - Cloveragri



NEW MODEL : NOW WITH HYDRAULIC FORWARD MOVEMENT THAT IMPROVES SIDE VIEW VISIBILITY, ENHANCING SAFETY AND EASE OF OPERATION FOR THE USER

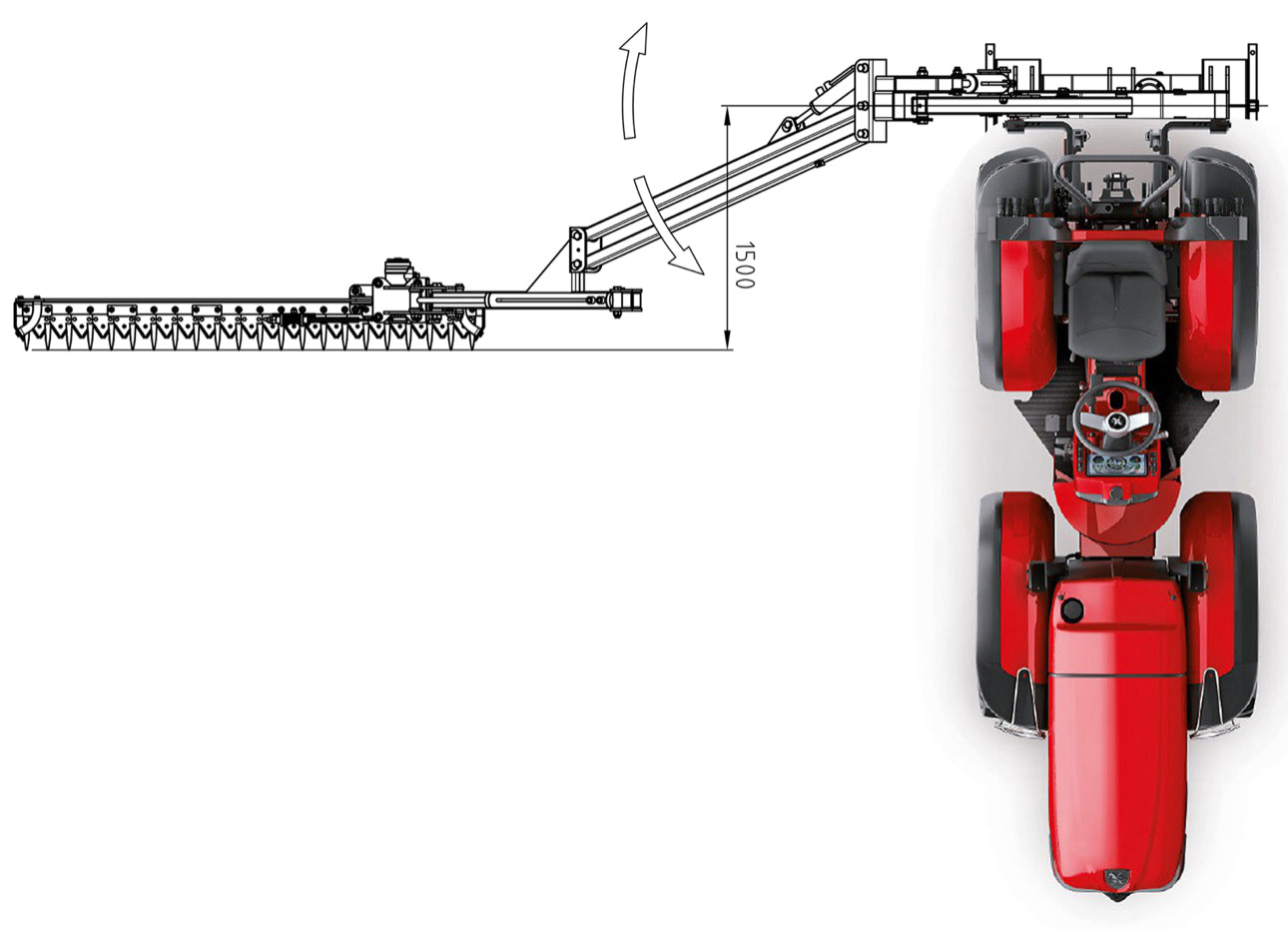

The HRTP160 has an incredible long 5m hydraulic arm reach and is the most versatile machine for cutting orchard trees, hard to get to hedges and many types of shrubs/bushes. Designed for compact and farm size tractors with a minimum gross weight of 1500kg. The HRTP160 features a reversible frame with a . This is a highly adaptive, easy to operate machine that cuts cleanly and environmentally without flailing your hedges to death.



OVERVIEW

The HRTP 160 innovative design has a reversible frame that allows the 160cm cutting bar with 21 blades to be operated on the right or left hand side of the tractor. No external hydraulics are required as the HRTP160 has its own hydraulic pumps and reservoir.  This is a simple to use Implement that will save time and money. Very safe to operate as it does not have high speed flying obstacles from the cutter bar head, unlike a flail therefore it can be used safely without a cab.

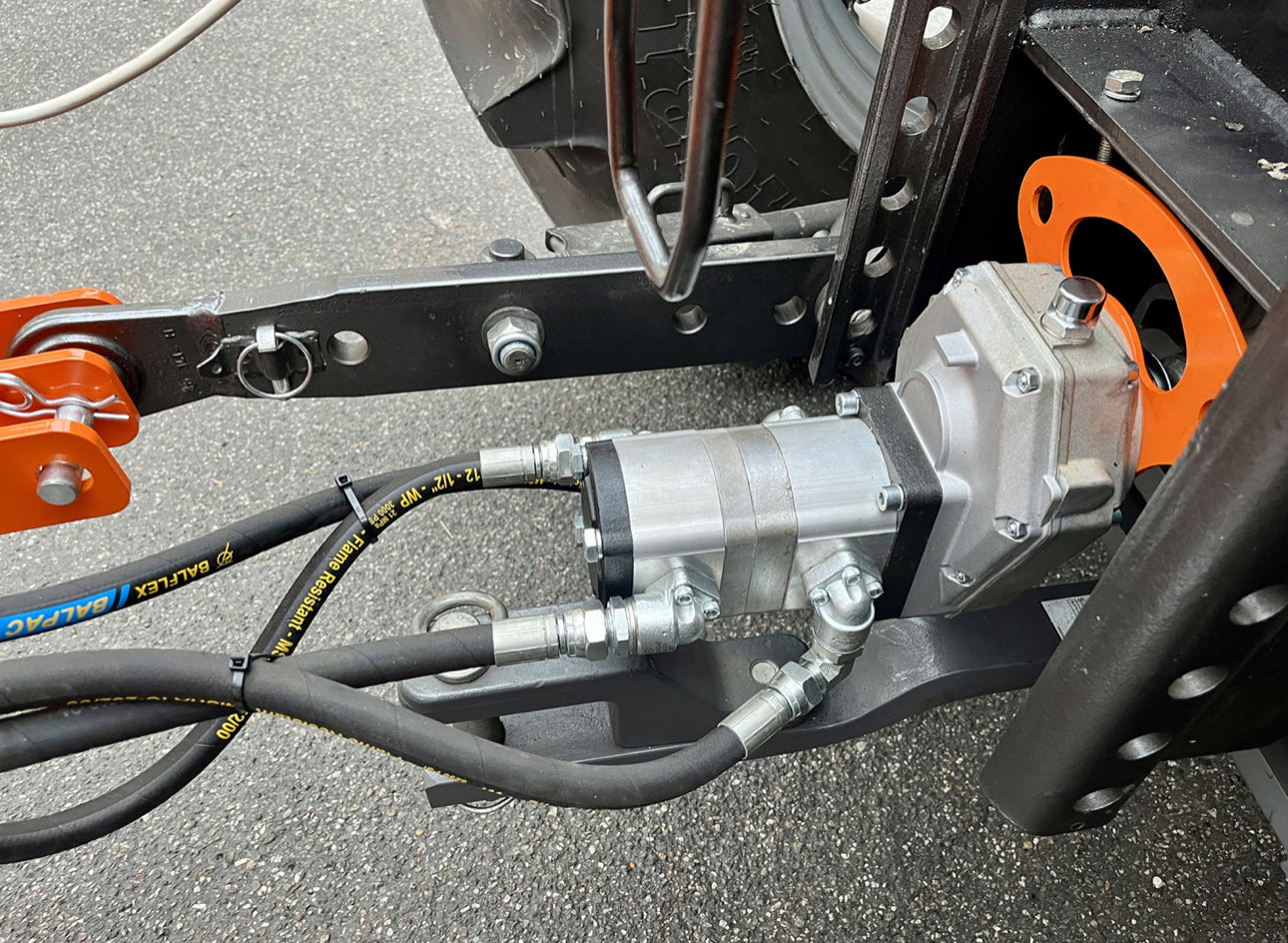

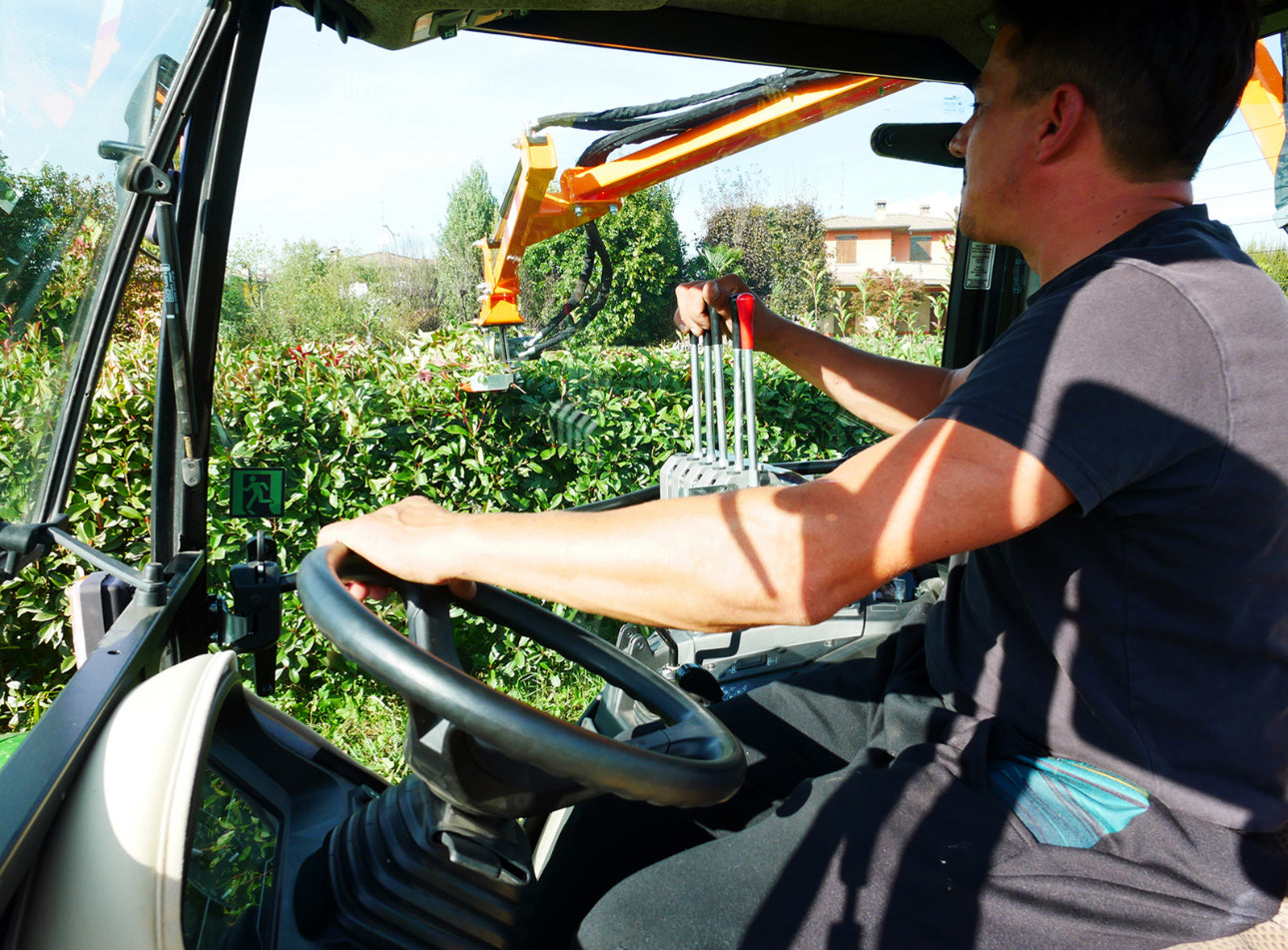

The HRTP160 has its own Hydraulic system (HYDROCONTROL - Made in Italy): it runs completely off the PTO, no need to connect the tractors hydraulics. The double hydraulic pump system allows to move together the arm and the cutter bar via the control valve with 5 levers and flexible 3.5m cables  mounted on tractor fender.

As a low weight machine, the HRTP160 fits tractors universally, small to large, eg from small compact Kubota, Iseki and John Deere's, right up to 100hp tractors.

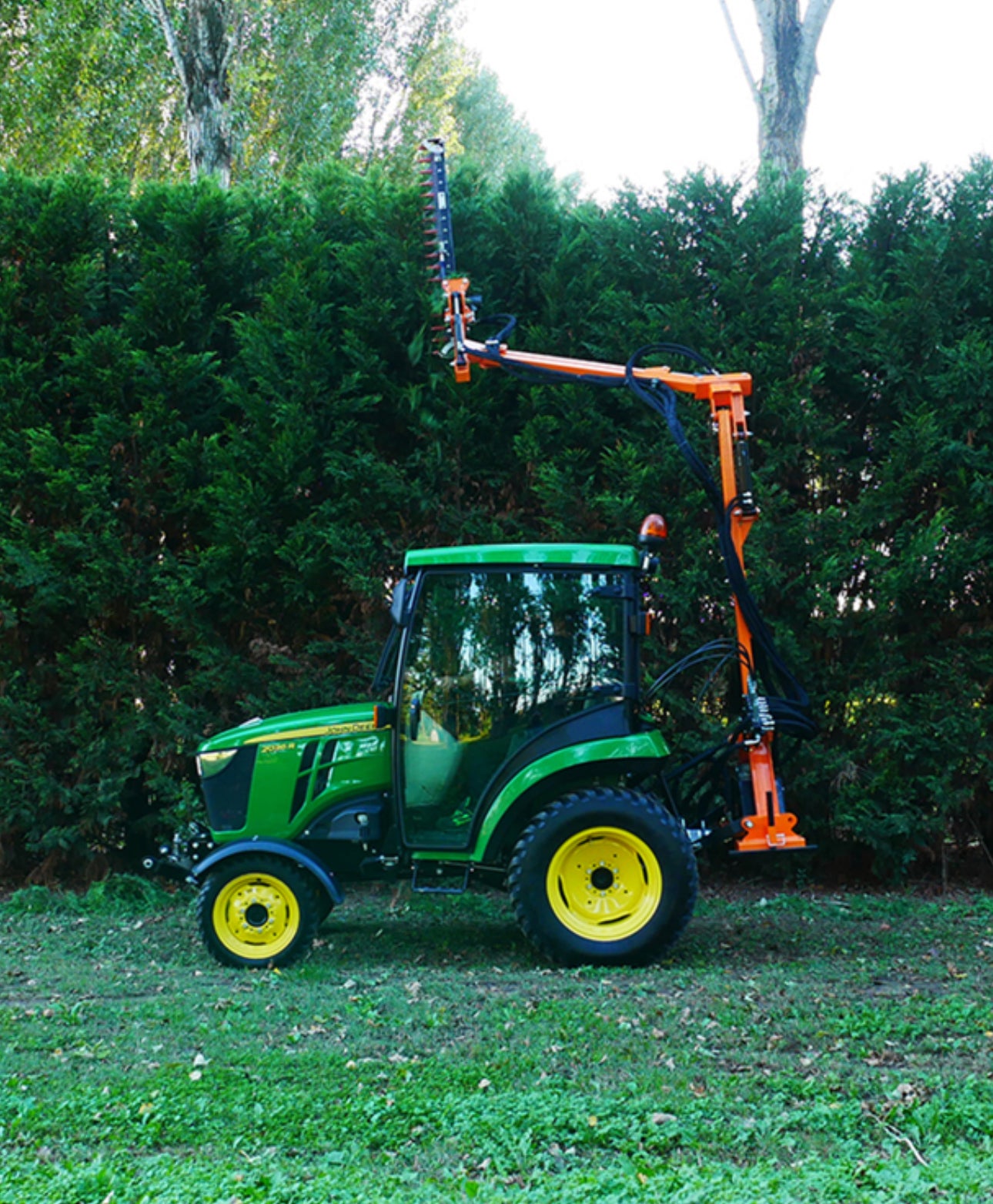

Ideal for tasks such as hedging fruit trees, vineyard pruning, maintaining privacy - wind break type hedges, and orchard pruning. the HRTP160 hedge cutter is perfectly suited for tractors within the 25-100 HP power range, making it a dependable choice for a wide range of agricultural applications.



BENEFITS & FEATURES

  • Very safe to operate as it does not have high speed flying obstacles from the cutter bar head, unlike a flail therefore it can be used safely without a cab on even the smallest tractors.

  • Has its own Hydraulic system (Brand HYDROCONTROL made in Italy): it runs completely off the PTO, no need to connect the tractors hydraulics.

  • The double hydraulic pump system allows to move together the arm and the cutter bar.

  • As a low weight machine, this cutter fits tractors universally from compact to Farm Tractors including  Kubota, New Holland, Kioti, Mahindra & John Deere's Tractors.

  • Approx. 20L oil capacity ( ISO 46 Hydraulic Oil )

  • The versatile HRTP160 hedge cutter offers enhanced safety and ease of operation with its hydraulic forward movement to bring the cutter bar in line with the operator for better side view visibility.
  • Depending on the circumstances and requirements, we recommend an operational speed of approximately 2 to 7 km/h.



Hedger / Sickle Cutter Bar (* Included in price )

Working width: approx. 160 cm

Hydraulic Flow: min. 15 L/min.

Hydraulic pressure: 16 MPa

Weight: approx. 67 kg



Please Note: Due to transport reasons, the main arm is temporarily fixed at a lower point, to limit the overall height. The assembly in  working position will be carried out by the customer before the first use.



# OPTIONAL - S340 model Saw Head Attachment Suitable for HRT160 Rear Mounted Hedger.

The Cloveragri S340 saw easily cuts though branches up to 100 mm thick. The saw is smooth running with a very clean cut pattern, making it excellent for pruning shrubs and trees. Important note: Always cut thick branches from the top down to prevent the blades from jamming.It has 3 saw blades (72 teeth each) and a diameter of 400 mm. The saw has an effective working width of approx. 900 mm. The S340 saw blades are driven hydraulically. V-belts distribute power to ensure smooth saw blade operation.

This is ONLY the saw head attachment (incl. hydraulic motor and hydraulic hoses).  $3500.00 inc gst


S340 Technical specifications:

  • Saw blades: qty. 3
  • Saw blade diameter: Ø 400 mm
  • Saw drive: hydraulic
  • Hydraulic flow rate: min. 40 - 50 L/min.
  • Operating pressure: 160 bar
  • Required hydraulic connection: 1x double acting.
  • Saw blade drive: V-belt
  • Saw blade thickness: 3 mm
  • Saw teeth: 72 teeth per saw blade
  • Effective cutting width: 900 mm
