C Series Excavator Mower Head (Hydraulic)

BUY ONLINE AND RECEIVE A FREE SET OF BLADES AND DRIVE BELTS

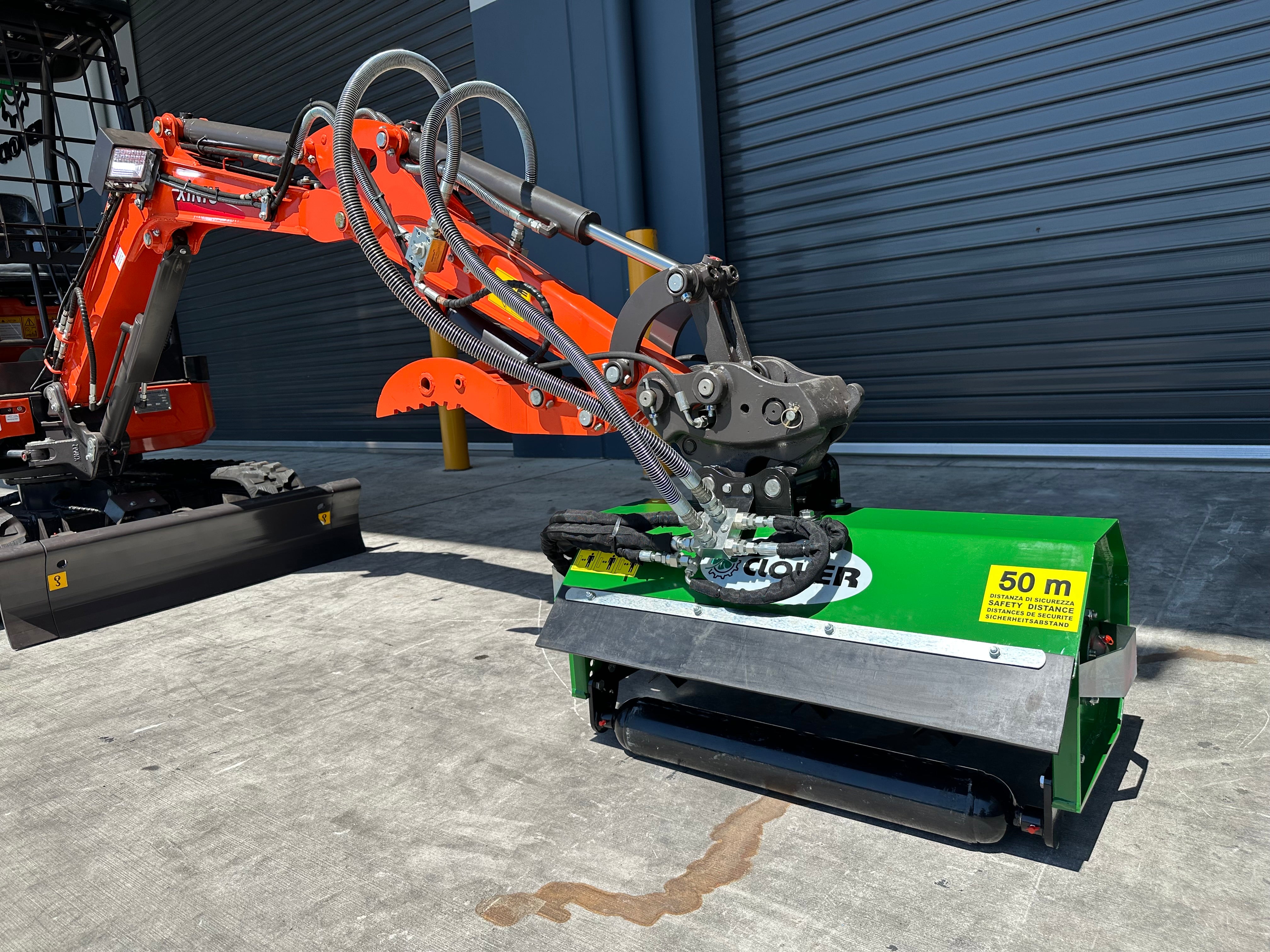

C Series Excavator Mower Head, Hydraulic,  3-Way Flow Control Valve  - Cloveragri

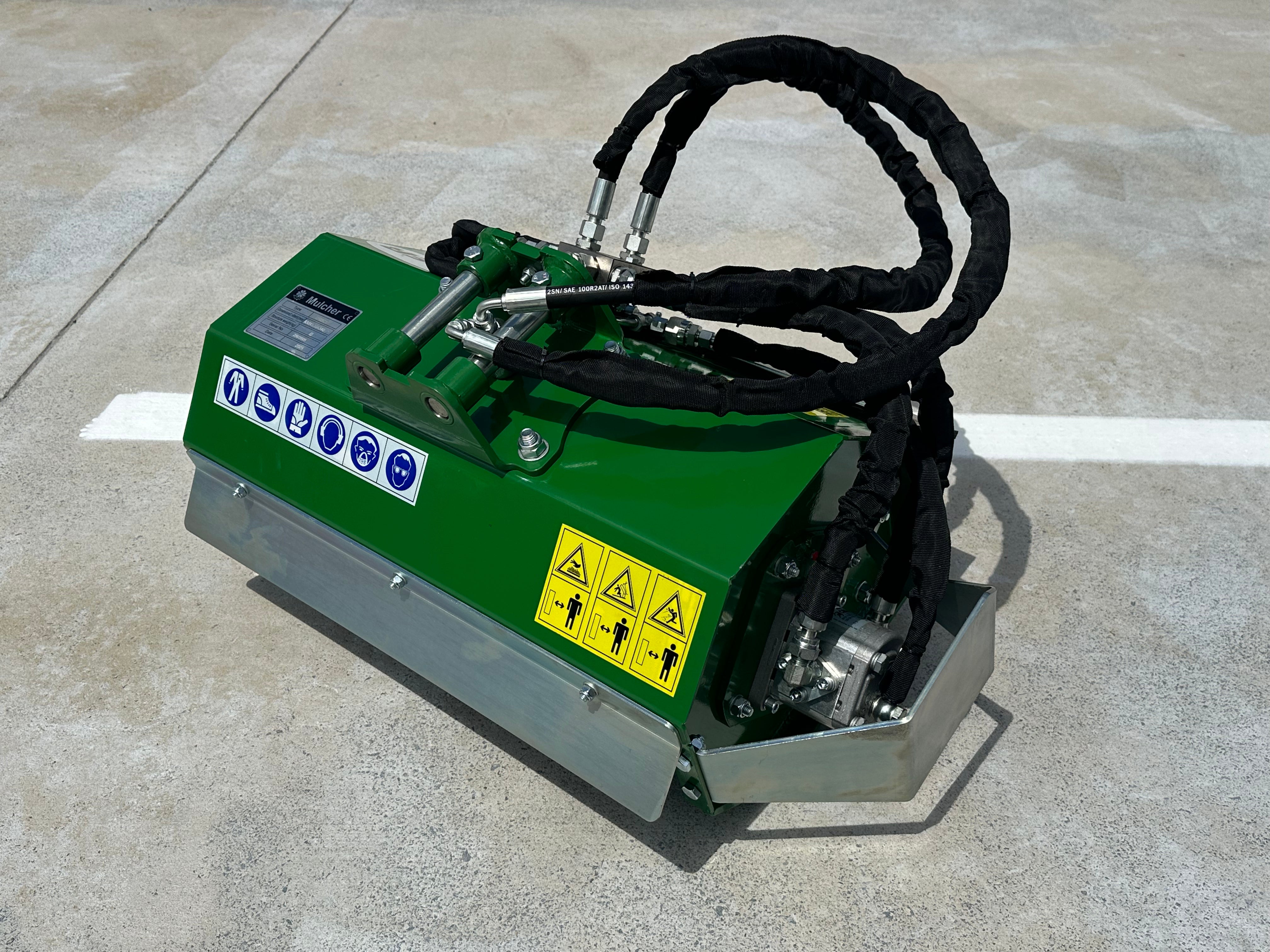

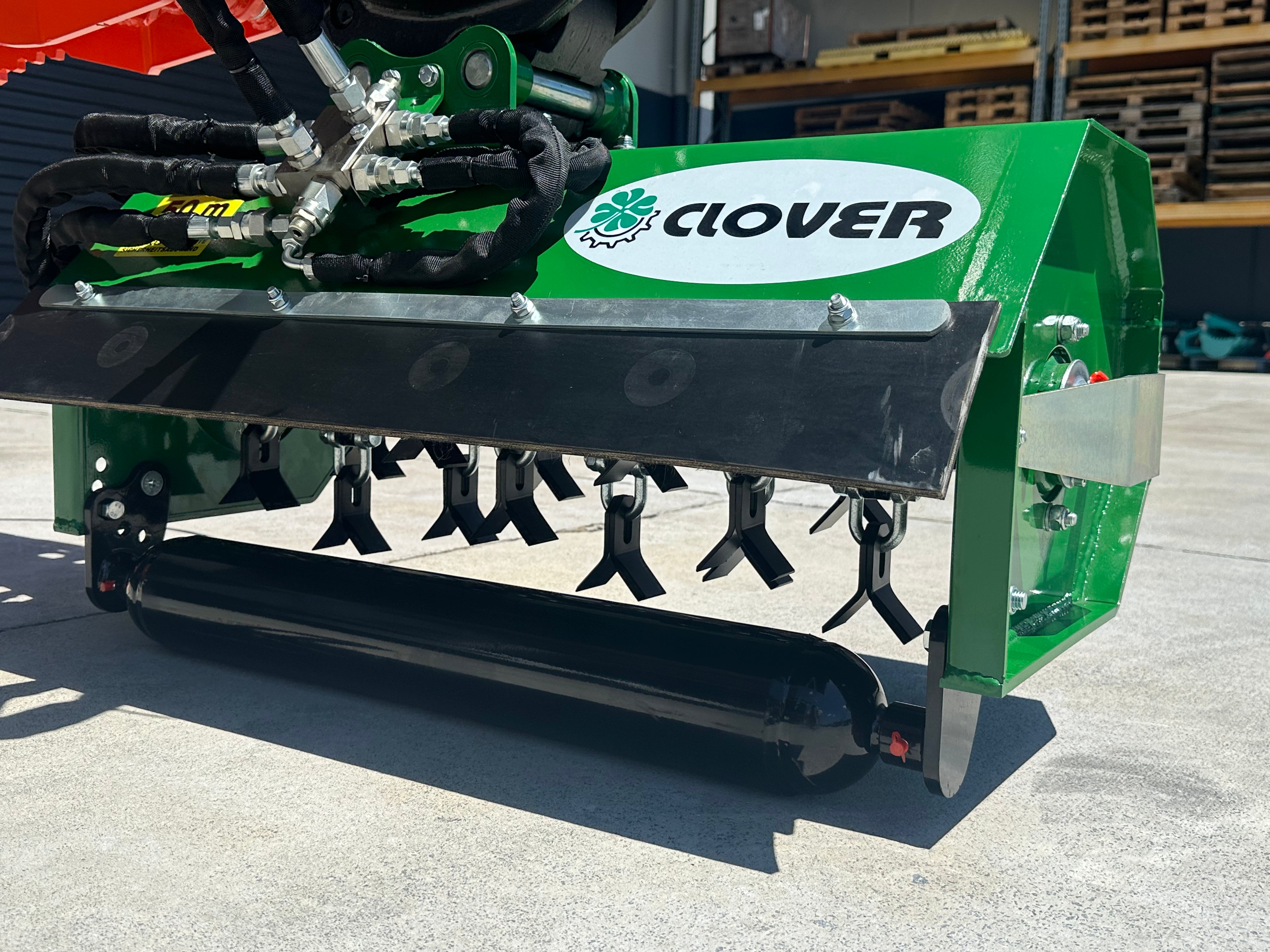

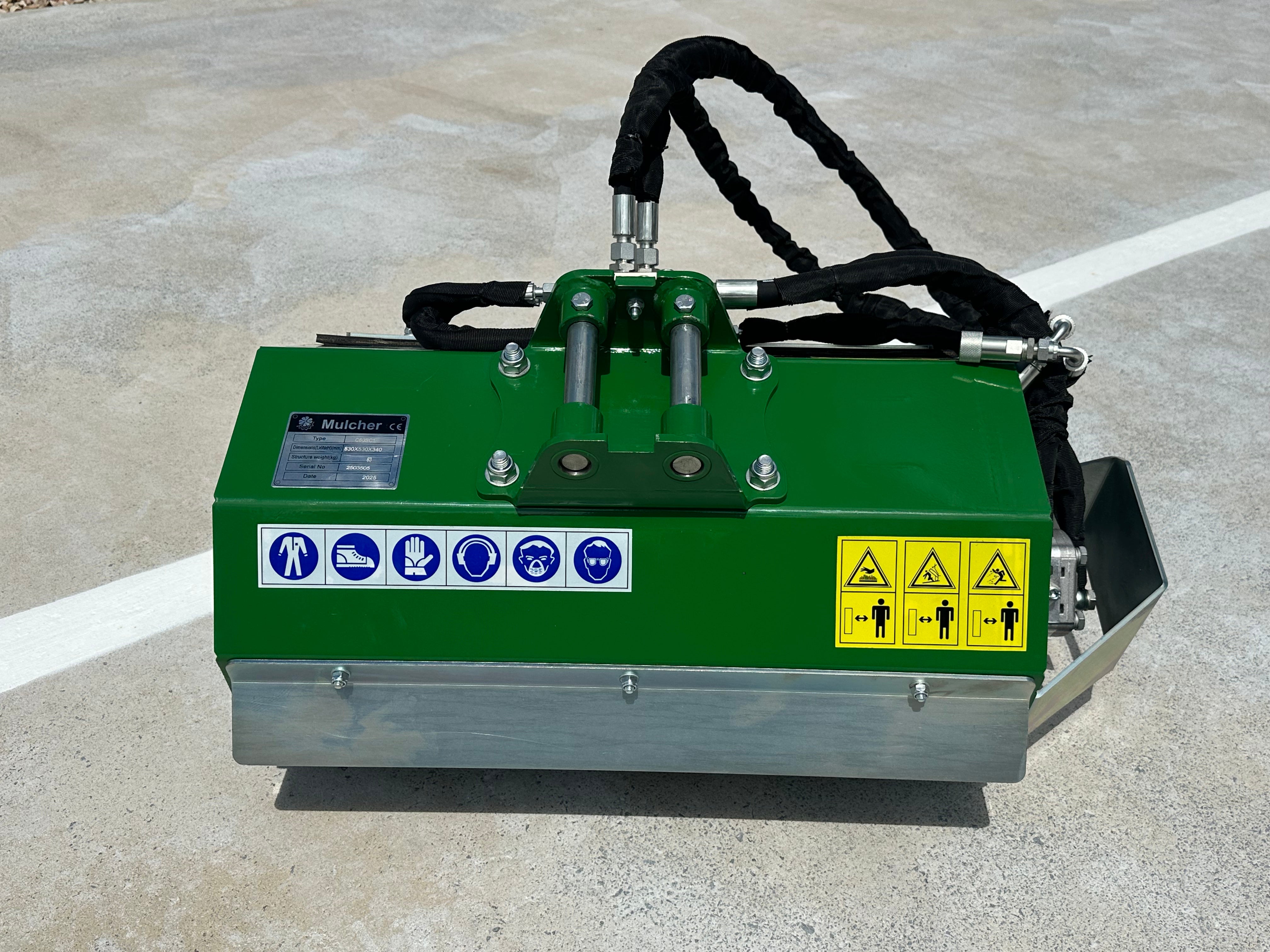

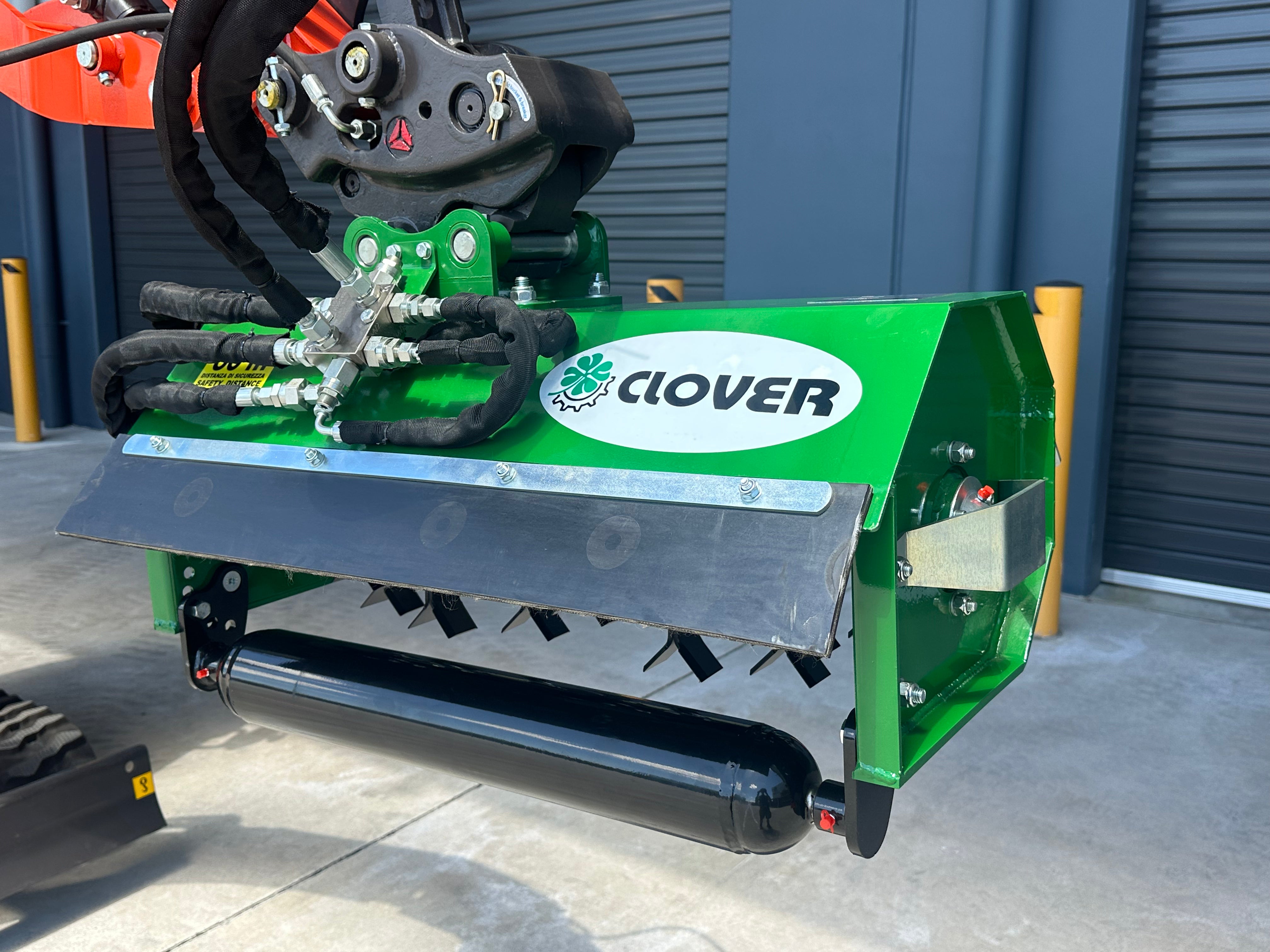

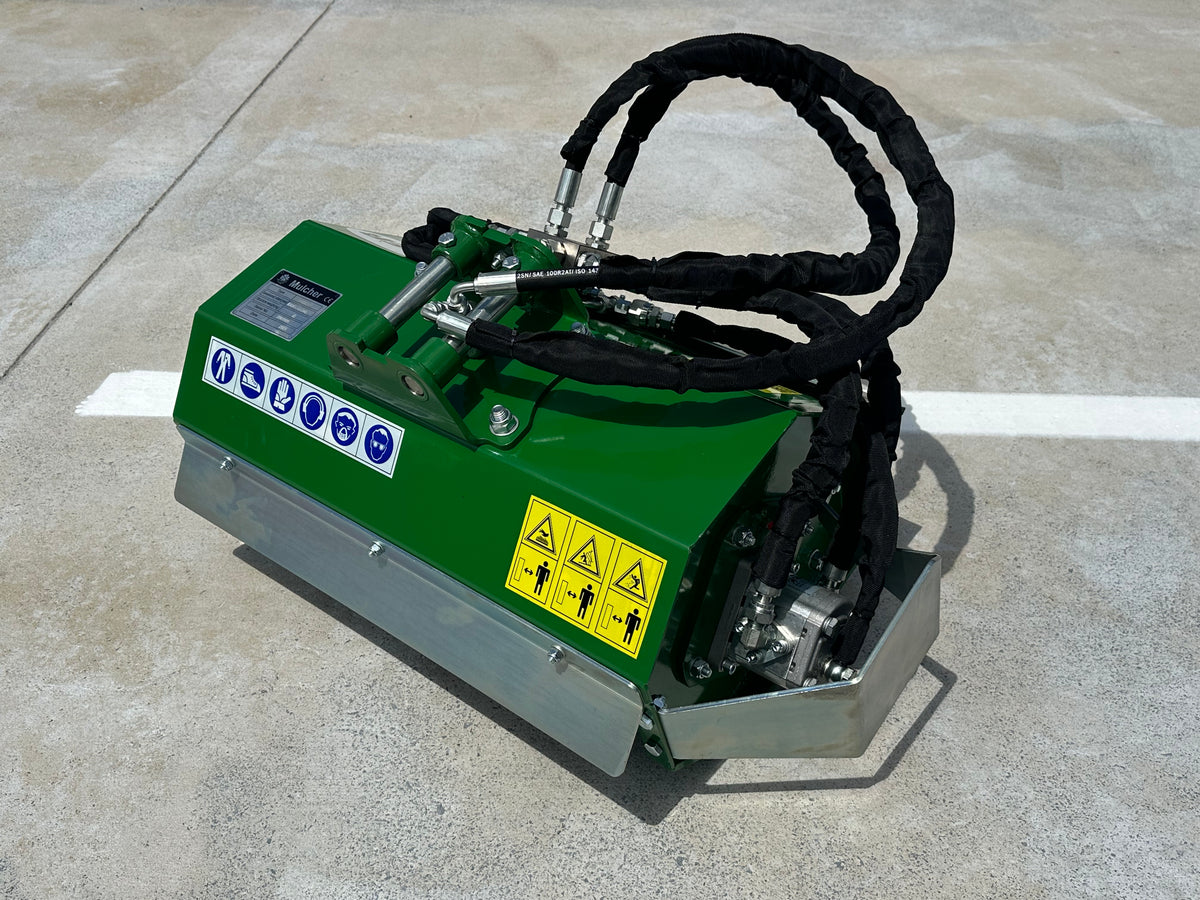

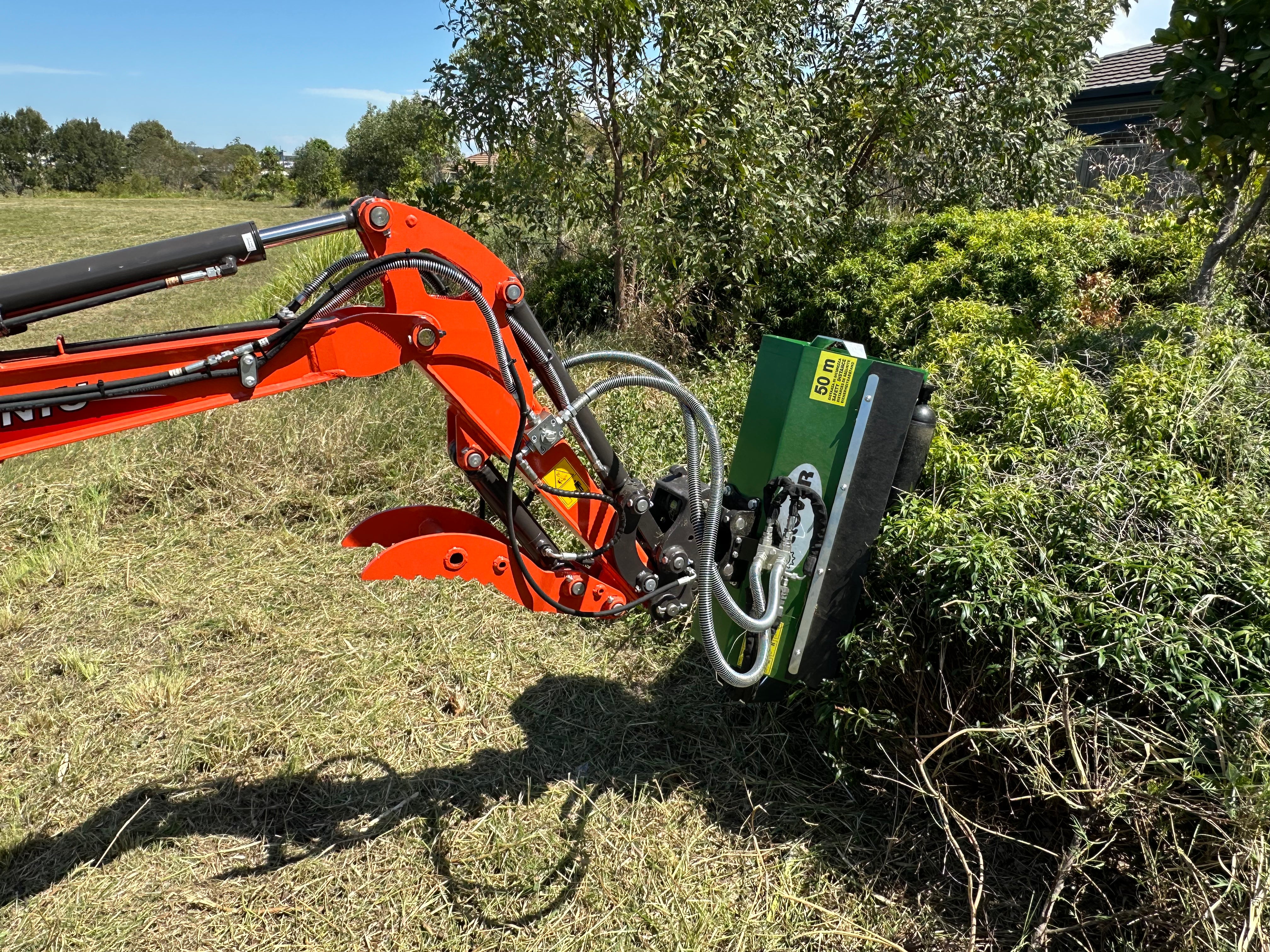

The C Series Light Flail Mower Heads offer versatile compatibility with various excavators up to 1.8t, ensuring adaptability for a wide range of applications. They feature a self-levelling parallelogram device with mechanical locking, advanced hydraulic components, and robust protections, making them a reliable choice for efficient and precise operations in diverse conditions.

Mower Head for mini excavators of 0.8-1.8 tons.

Suitable for : brush-cutter for brambles, bushes, ditches, banks, embankments, branches etc.

Suitable for Mini-excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, Rhinoceros etc.

Requirements for the operating machine:

a) Preferable with double pump:

    1 for tracking

 .  1 for operation of the mulcher (pump capacity at least 25/30 l / min)

b) The rotation of the knives goes in both directions (a double-acting pedal is necessary).

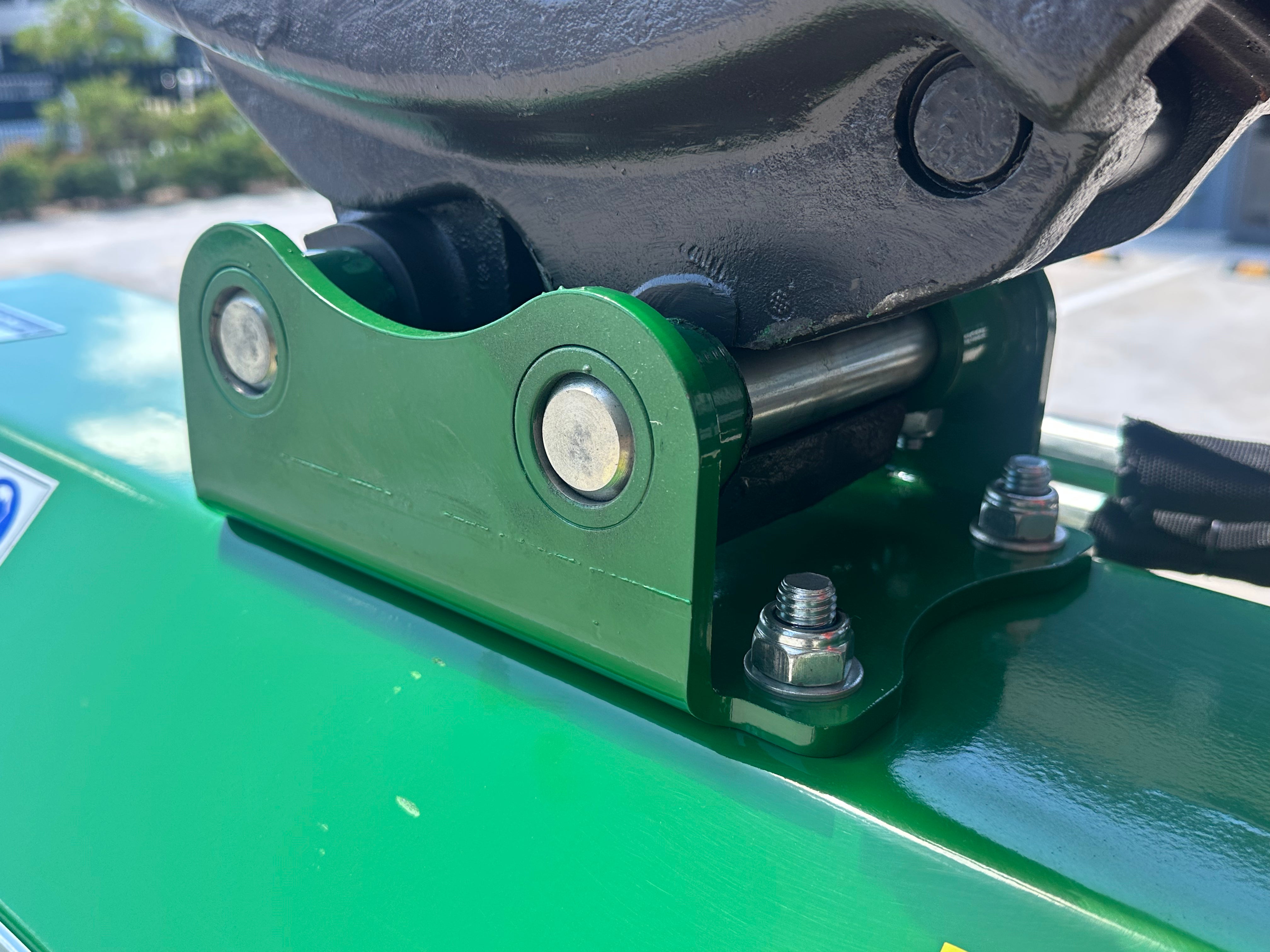

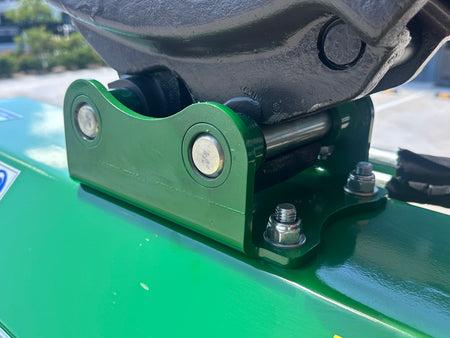

 c) C80 connecting hitch supplied suit 30mm pins / 127mm pin centres / 105mm between the ears.

OVERVIEW

The C Series Light Flail Mower Heads offer remarkable versatility by seamlessly connecting to a wide array of excavators, making them an invaluable tool for a diverse range of applications. Whether you're working with compact or larger excavators, these flail heads adapt with ease. One of their standout features is the self-levelling parallelogram device, which not only ensures stability during operation but also offers the convenience of mechanical locking, allowing you to maintain a consistent working angle. This level of control is essential for tackling different terrains and achieving precise results.

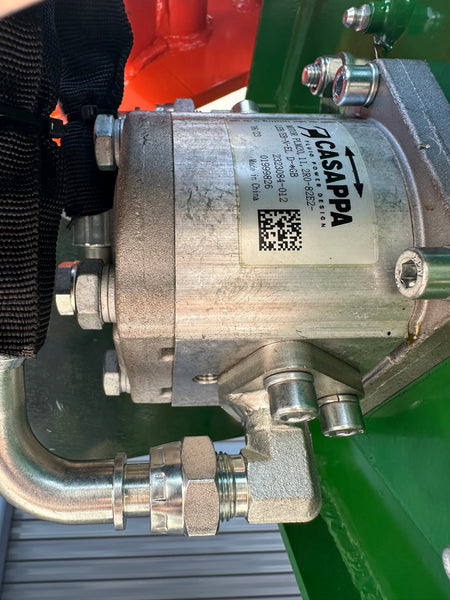

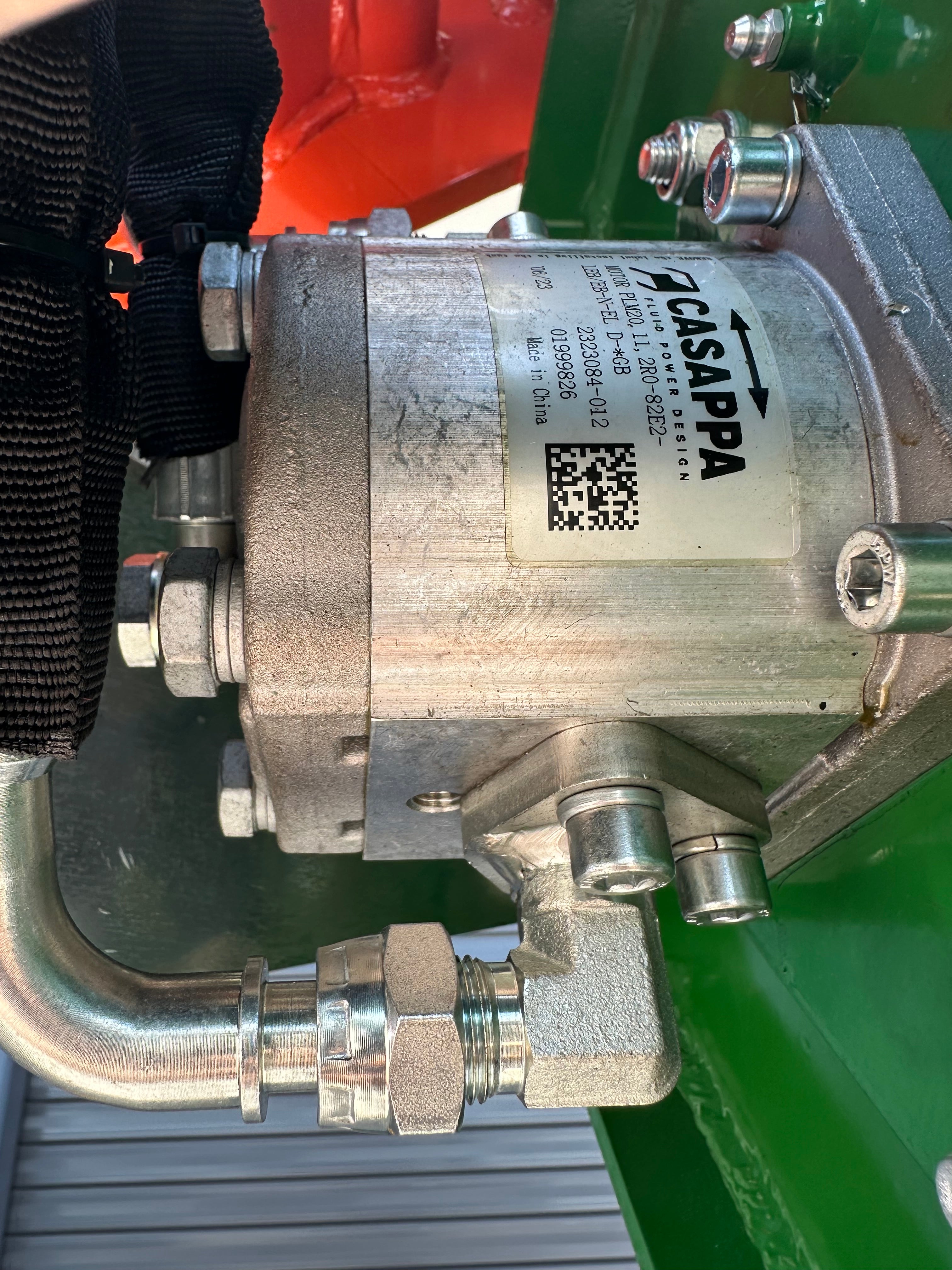

In addition to their adaptability, light flail heads incorporate a host of advanced features designed to enhance their performance and longevity. These features include a pressure relief and anti-cavitation valve, which safeguards the hydraulic system from potential damage, ensuring uninterrupted operation. Furthermore, a 3-way flow control valve with pressure compensation provides you with precise control over the flail head's movements, allowing you to tailor its performance to specific tasks. Hydraulic pipes and connections are protected to prevent wear and tear, extending the flail head's service life even in rugged environments. With a hydraulic gear motor capable of handling up to 30 bar of back pressure during discharge, you can confidently tackle challenging tasks.

BENEFITS & FEATURES

• Versatile compatibility with various excavators up to 1.8t  for diverse applications.
• Seamless adaptation to compact or larger excavators.
• Stable operation and precise control with a self-levelling parallelogram device.
• Enhanced performance and system protection with a pressure relief and anti-cavitation valve.

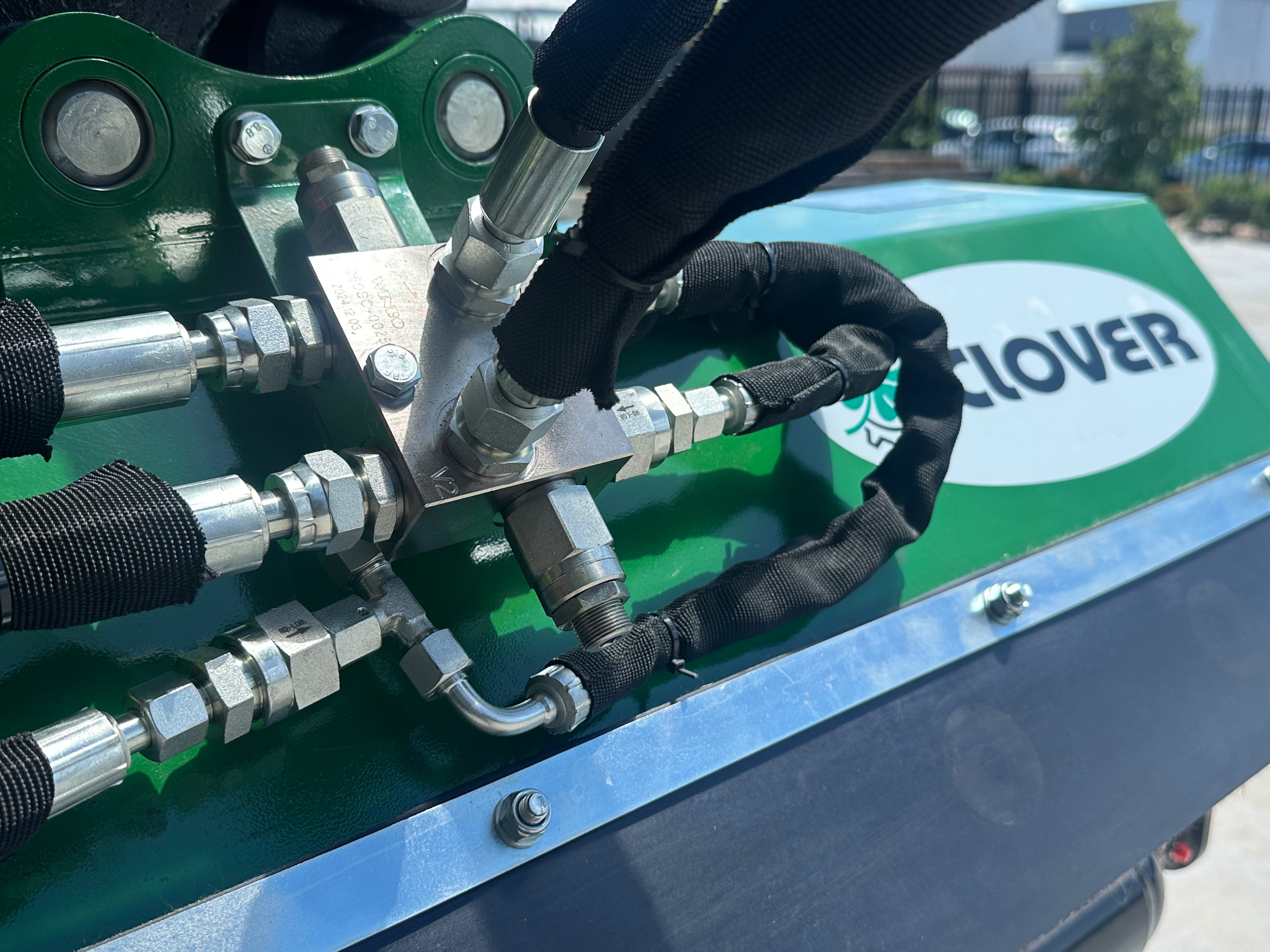

• Customisable movements using a 3-way flow control valve with pressure compensation.

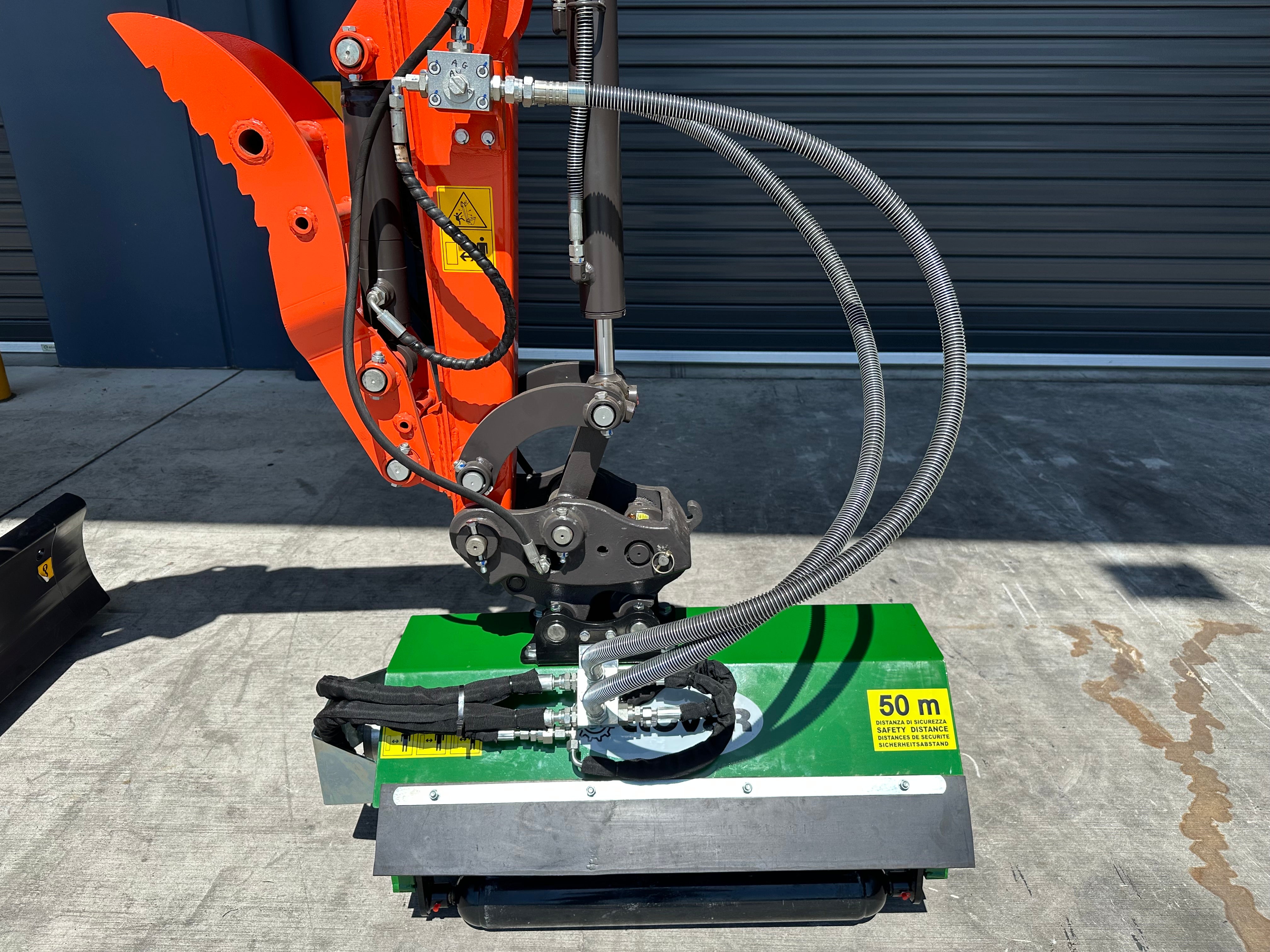

• Durability in rugged environments with protected hydraulic components.
• Efficient handling of challenging tasks, thanks to a robust hydraulic gear motor.

MODEL SPECIFICATIONS

Model	A mm	B mm	C mm	Gear motor displacement ml/r	Rated flow L/min	Motor speed r/min	No. of Blade	Weight Kg	Type Of Blade
C60	830	530	330	12	40	2000	24	58
C80	1030	530	330	12	40	2000	32	75
C100	1230	530	330	12	40	2000	40	88
C95	1250	700	430	22	70	1900	24	170
C115	1450	700	430	22	70	1900	24	188
C130	1550	800	500	34	100	1800	26	260
C150	1750	800	500	34	100	1800	32	297

PRODUCT DIMENSIONS DIAGRAM
