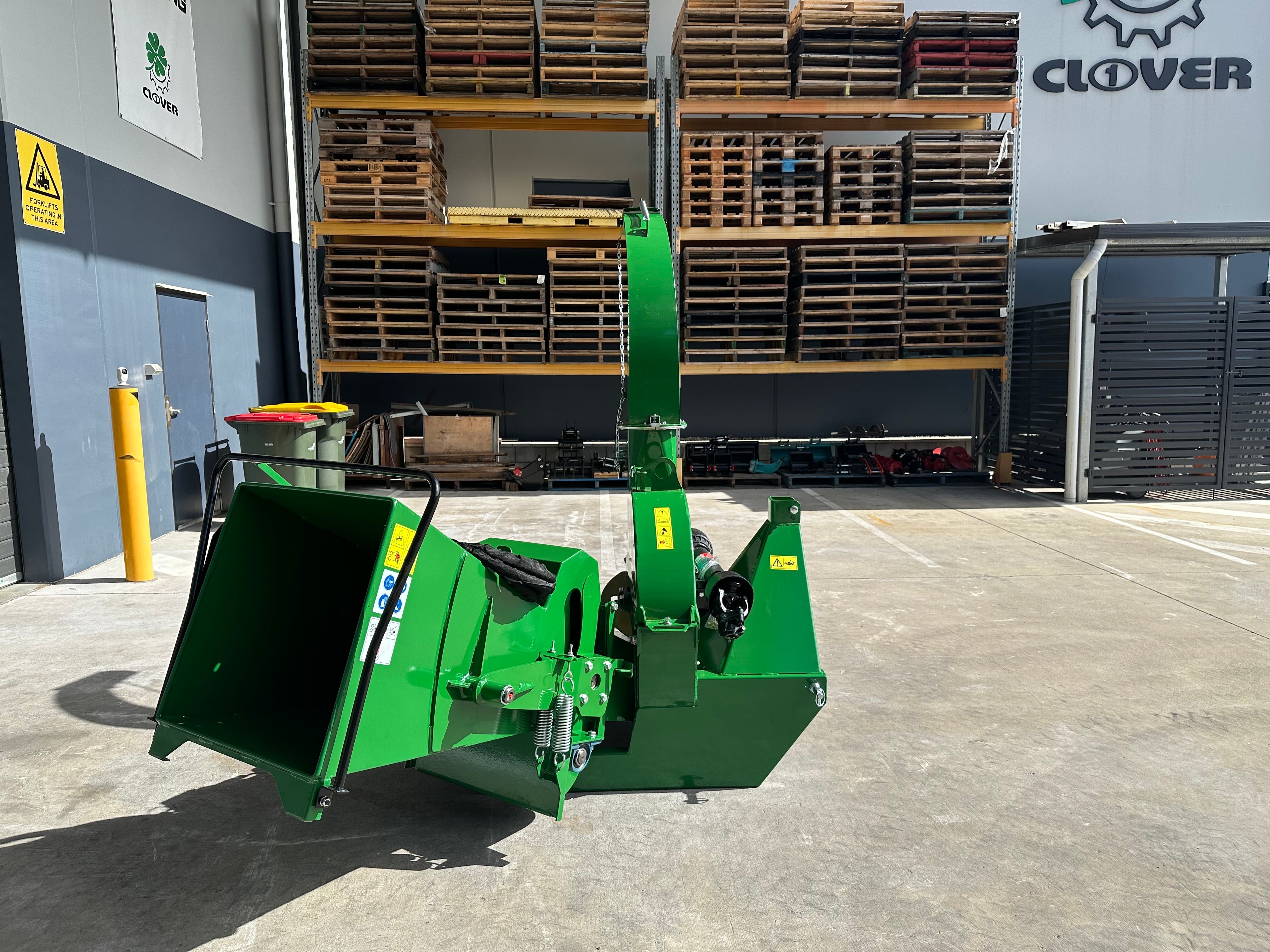

BX Series Hydraulic Feed Wood Chippers
Couldn't load pickup availability
.BX Wood Chipper, Hydraulic Feed System, 3-Point Linkage - Cloveragri
The BX series Wood Chipper stands out for its efficiency, driven by an advanced hydraulic feed system that automates feeding and pushing tasks with two large, independent rollers. Offering precise control over feed roller speed, easy maintenance, and blockage prevention, it's an ideal choice for tractor attachment, providing unmatched convenience and performance in wood chipping operations.
OVERVIEW

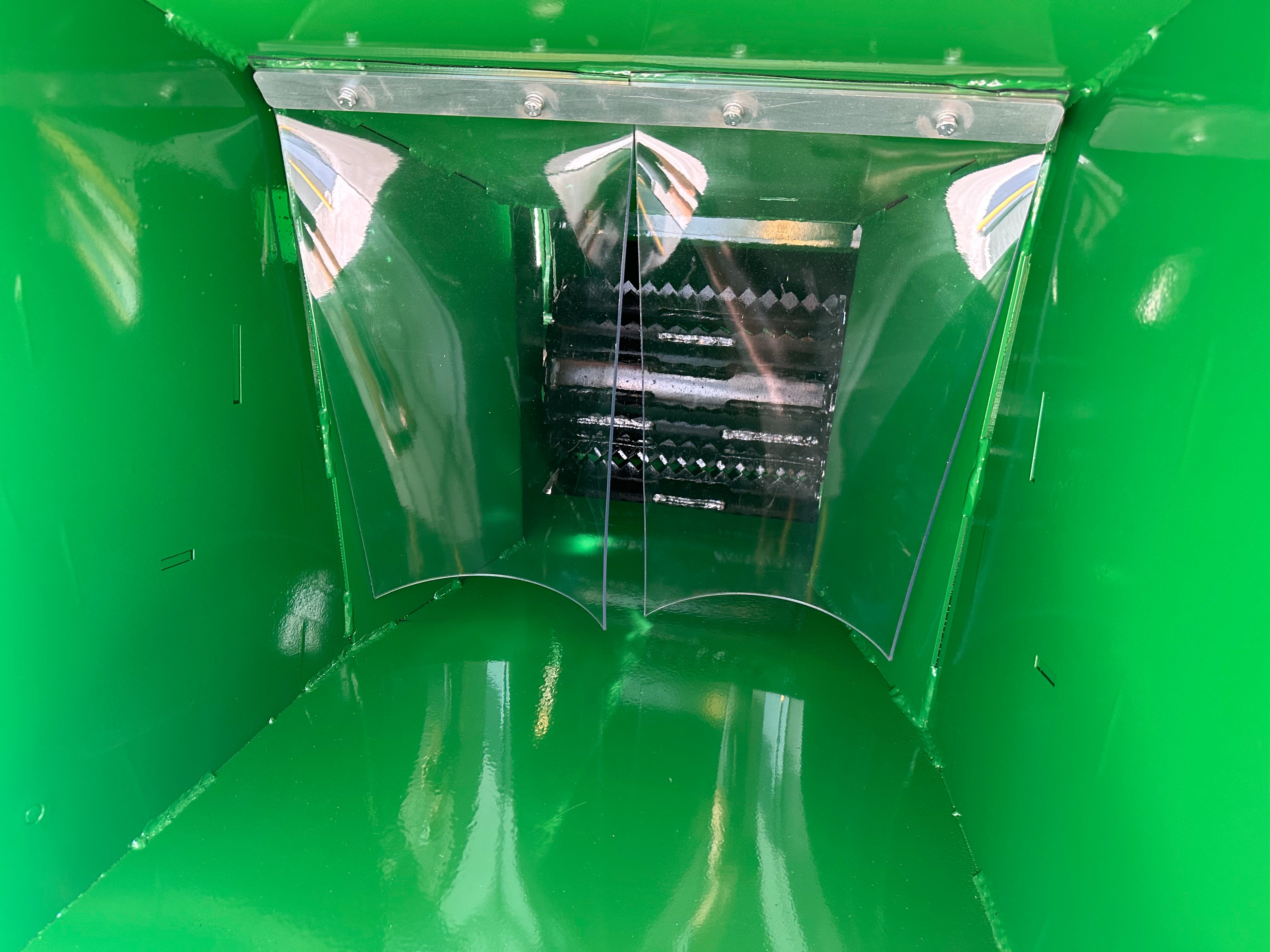

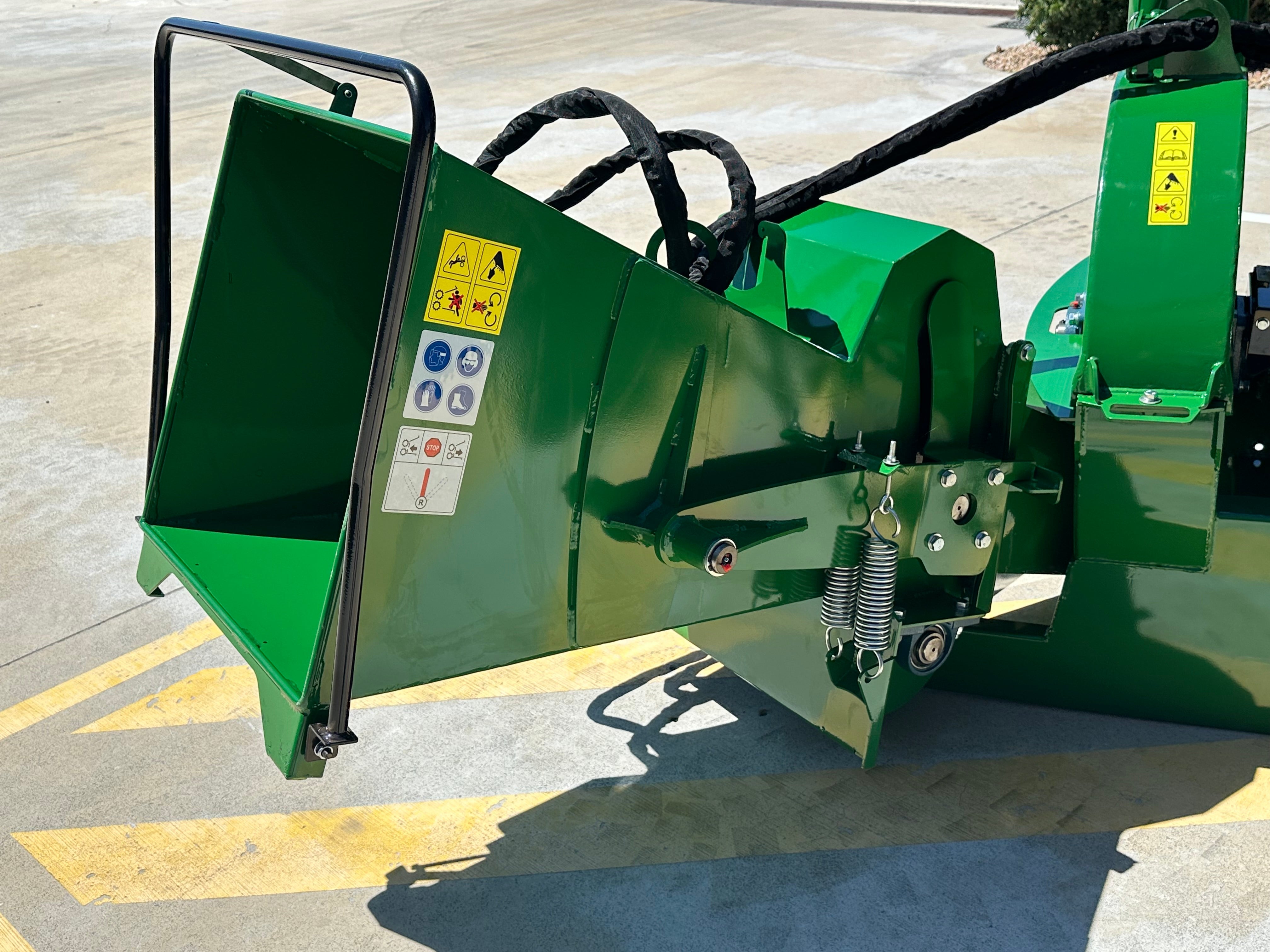

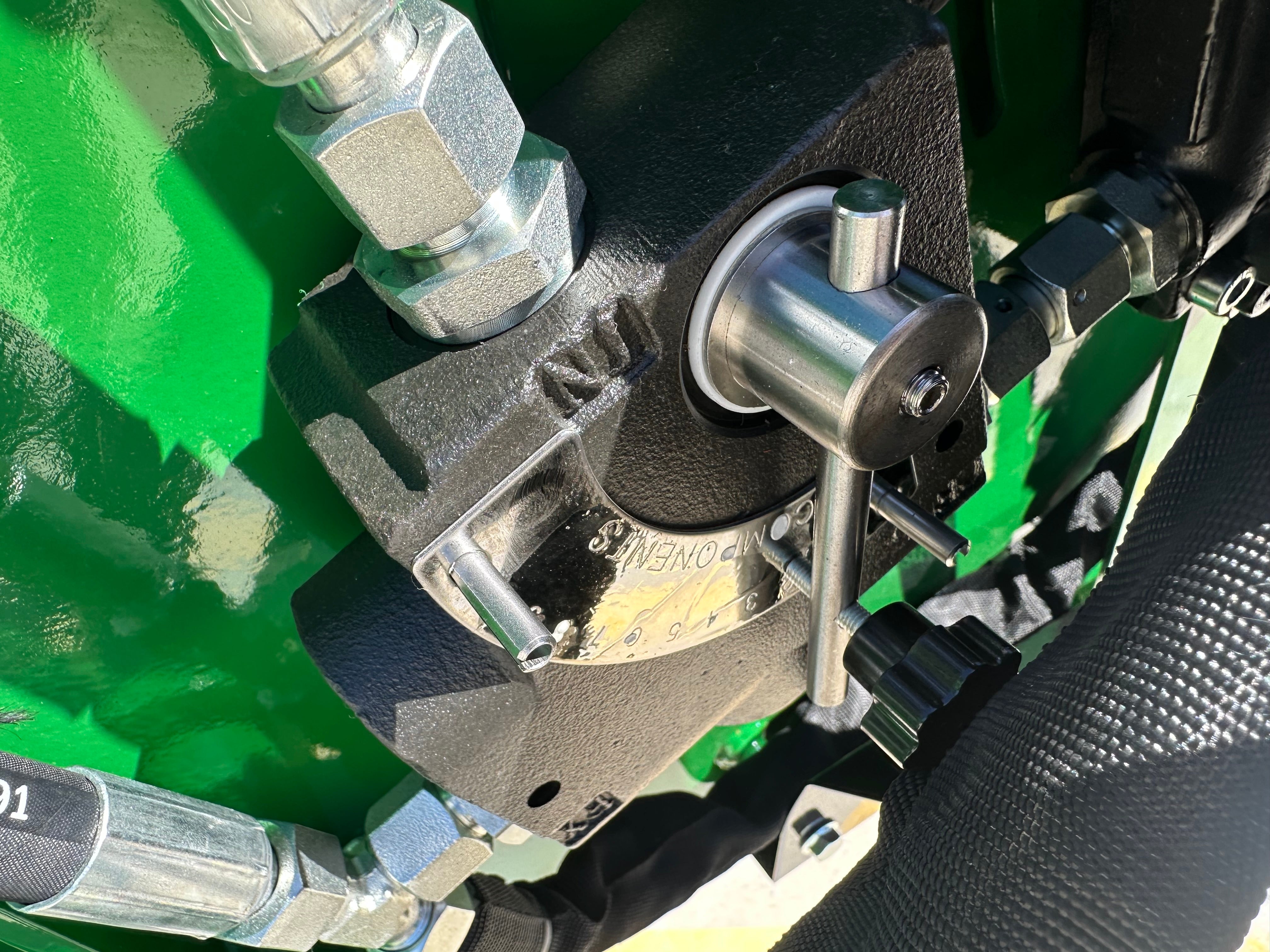

The BX series Wood Chipper sets the standard for efficiency with its advanced hydraulic feed system. This model revolutionises the way you work by automating feeding and pushing tasks through the use of two large, independent feed rollers. You have precise control over the feed roller speed, enabling you to tailor it to the material's diameter; smaller diameters can be processed at higher speeds. Should a blockage occur, a convenient large handle on the hopper allows you to effortlessly reverse the feed or switch it off for quick resolution.

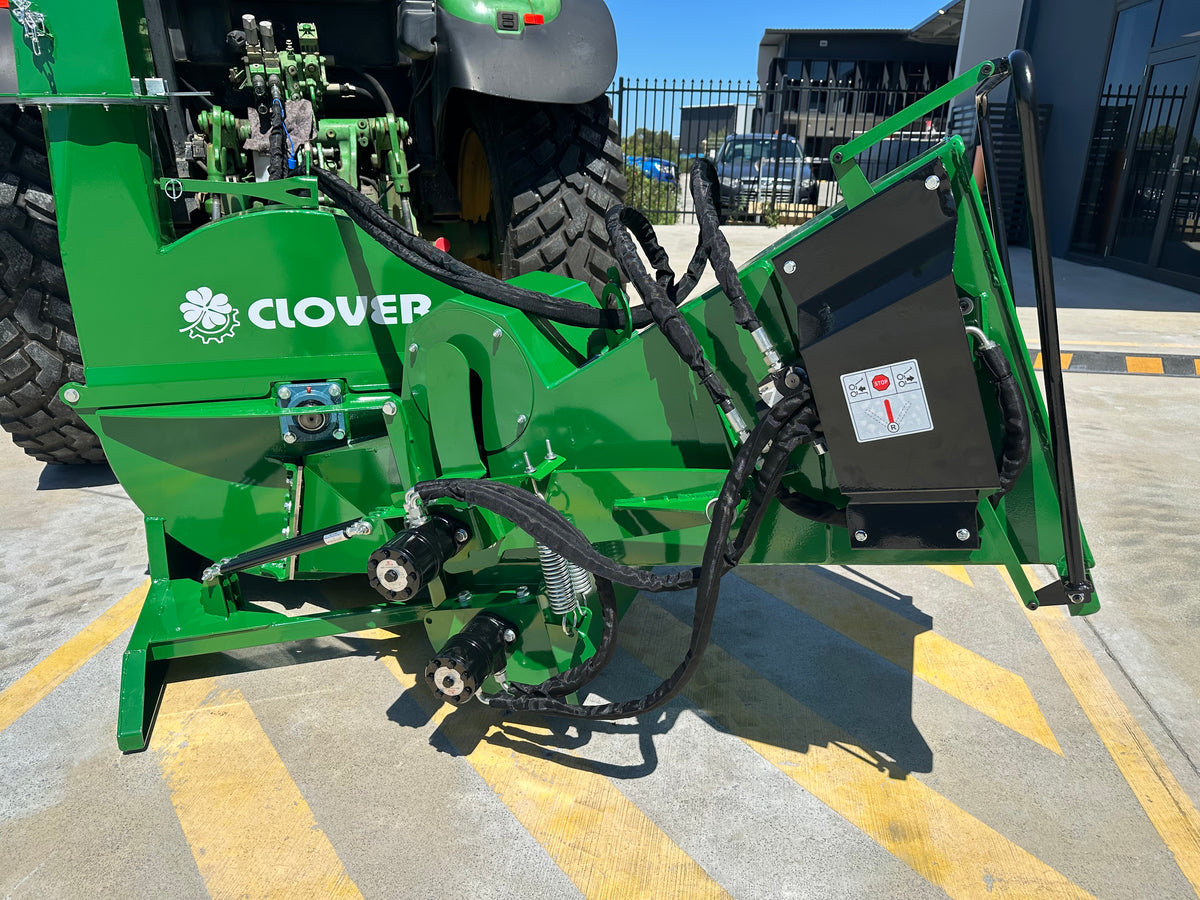

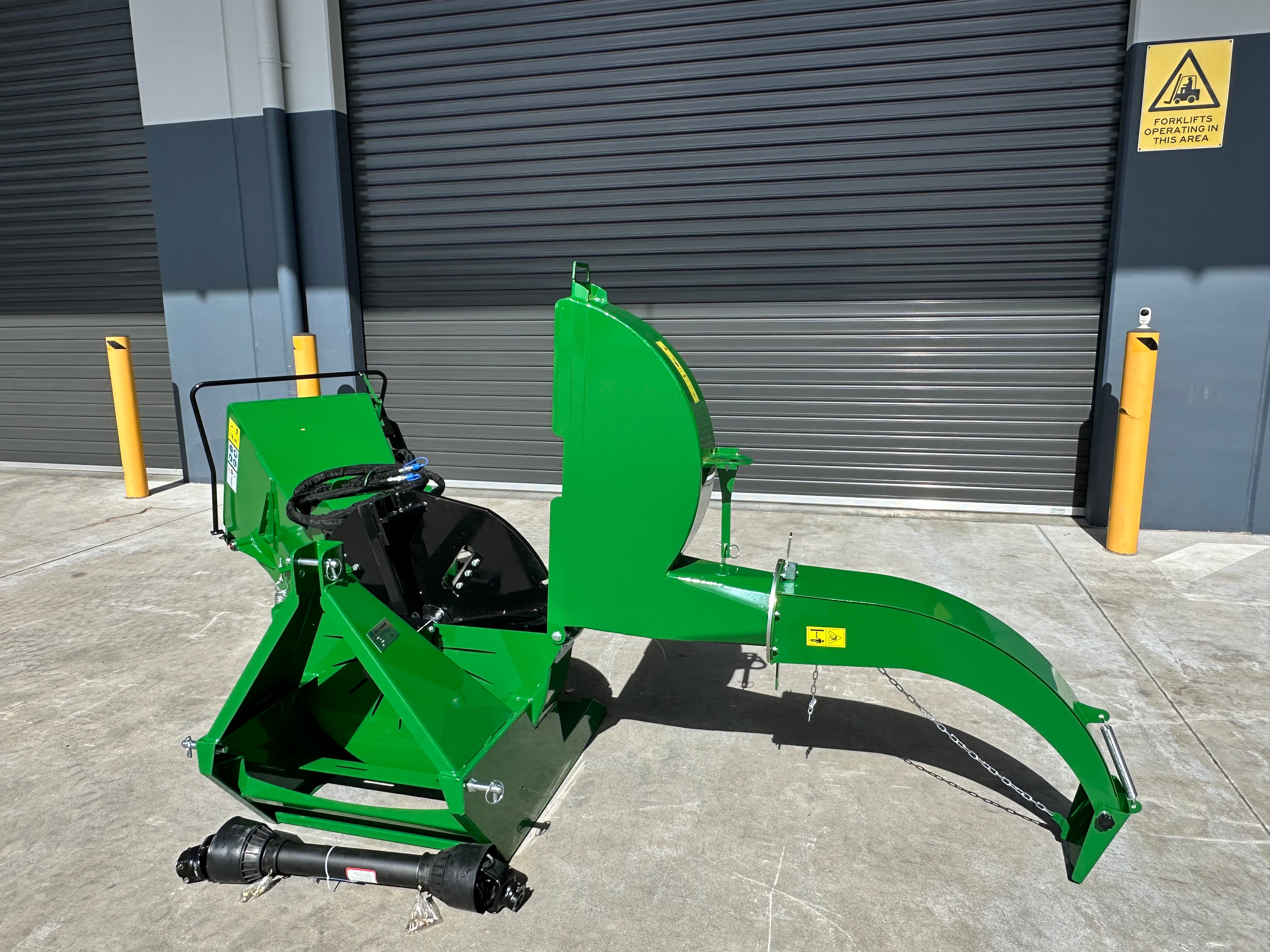

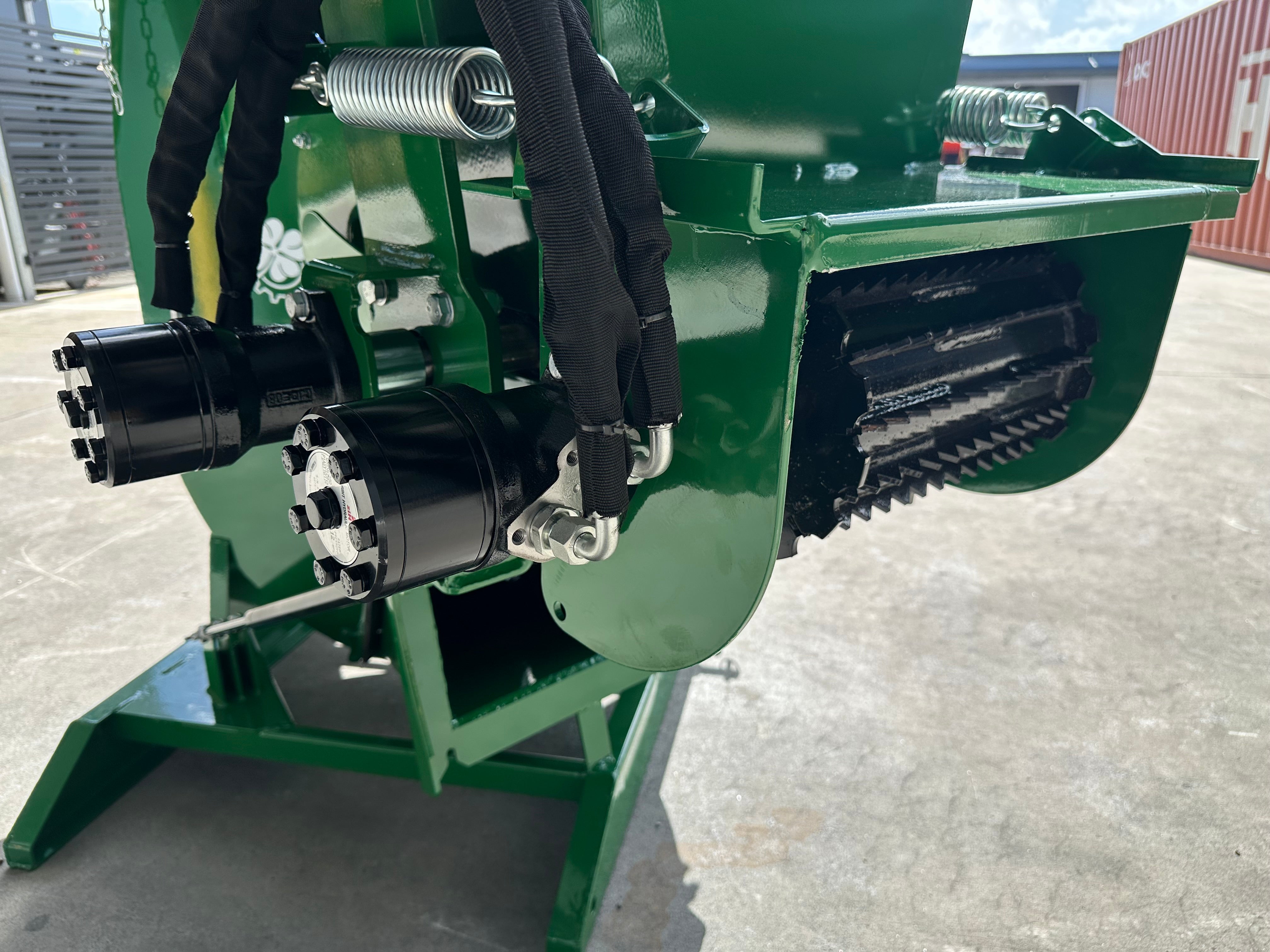

Powered by the tractor's hydraulics, this chipper requires a pressurised supply line and an unpressurised return line, or alternatively, a double-acting control unit. Transporting the unit is a breeze, as the hopper folds upward easily and is securely held in place with a cotter pin, enhanced by the assistance of two shock absorbers for a smoother folding experience.

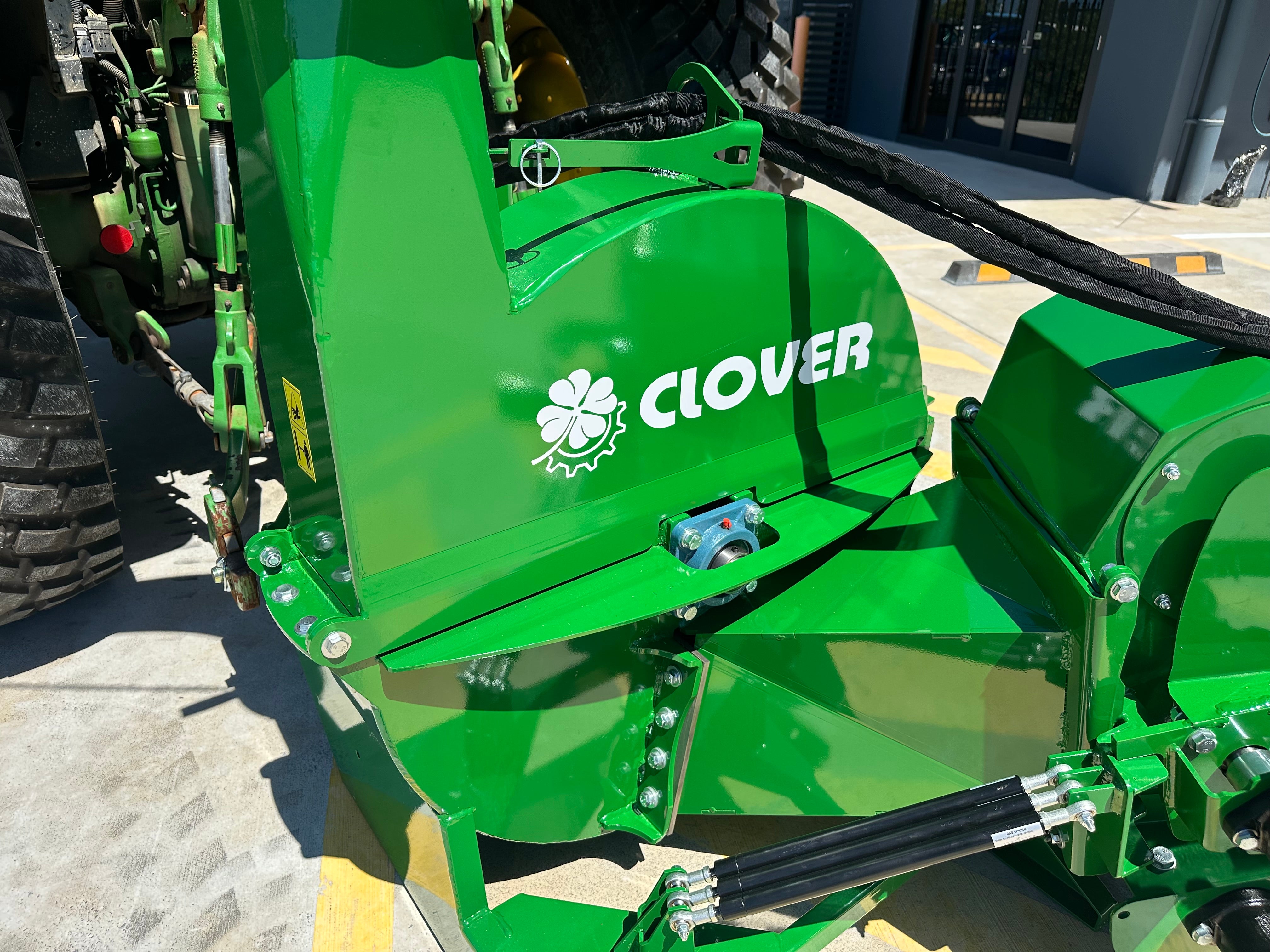

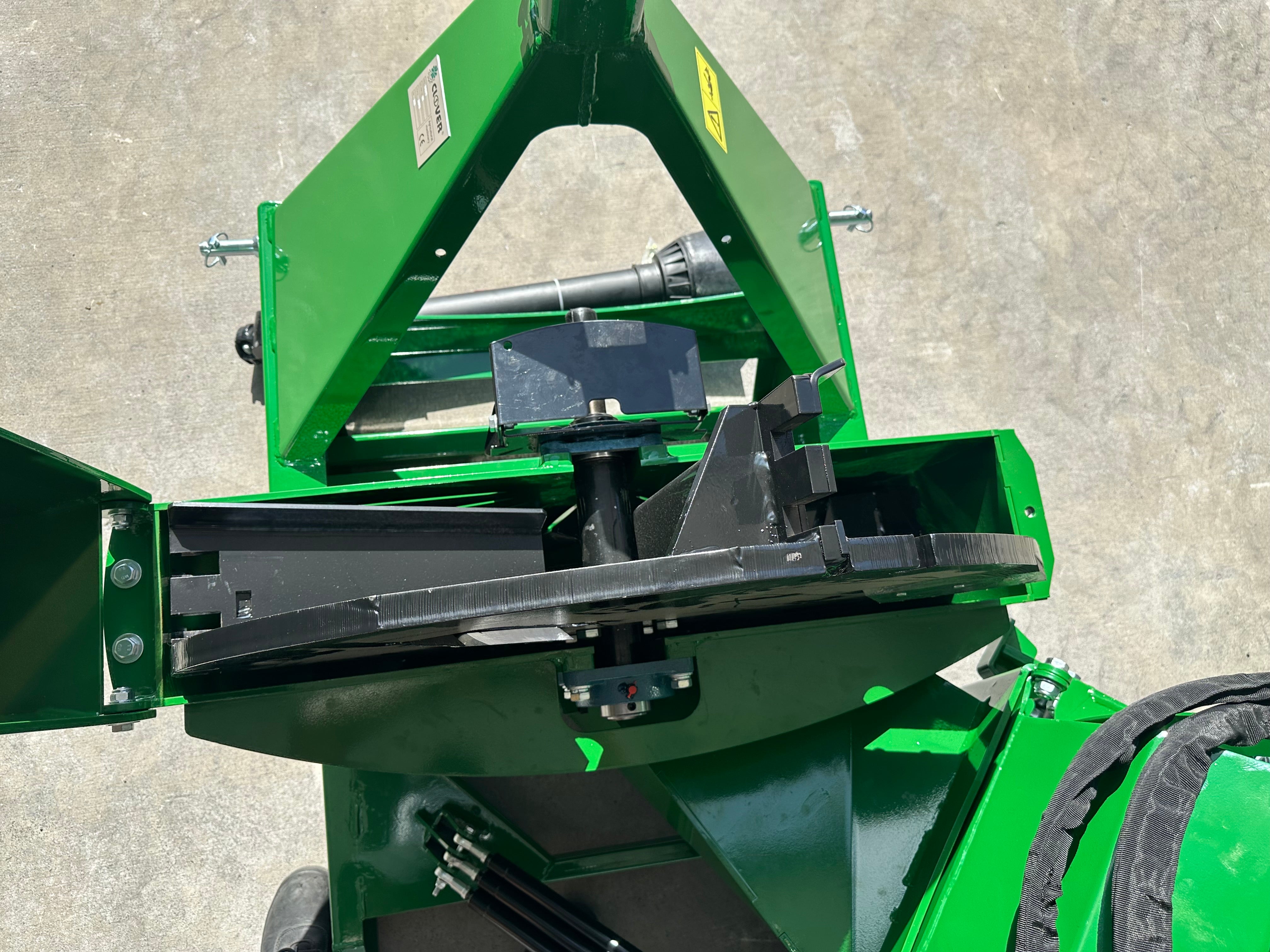

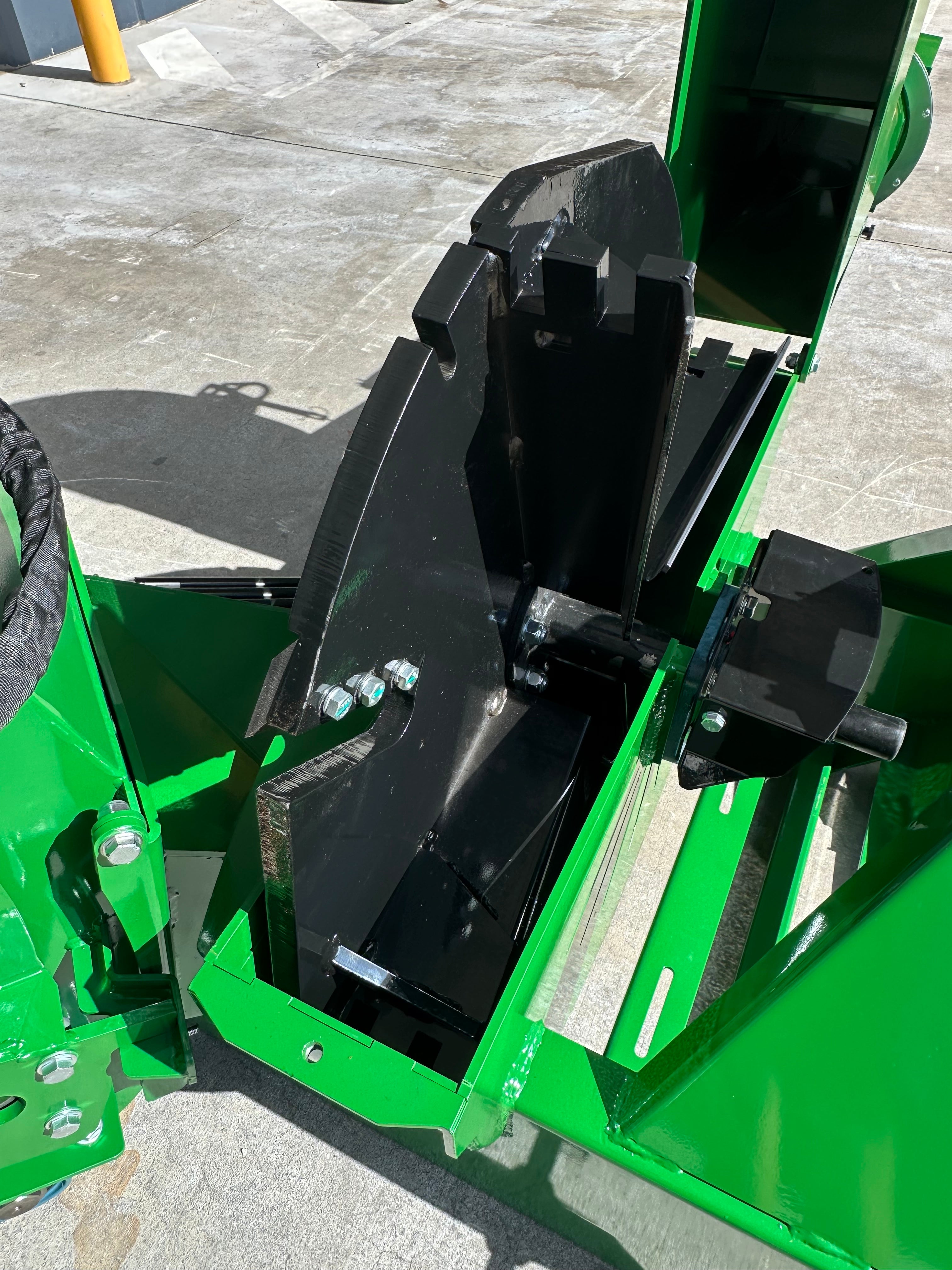

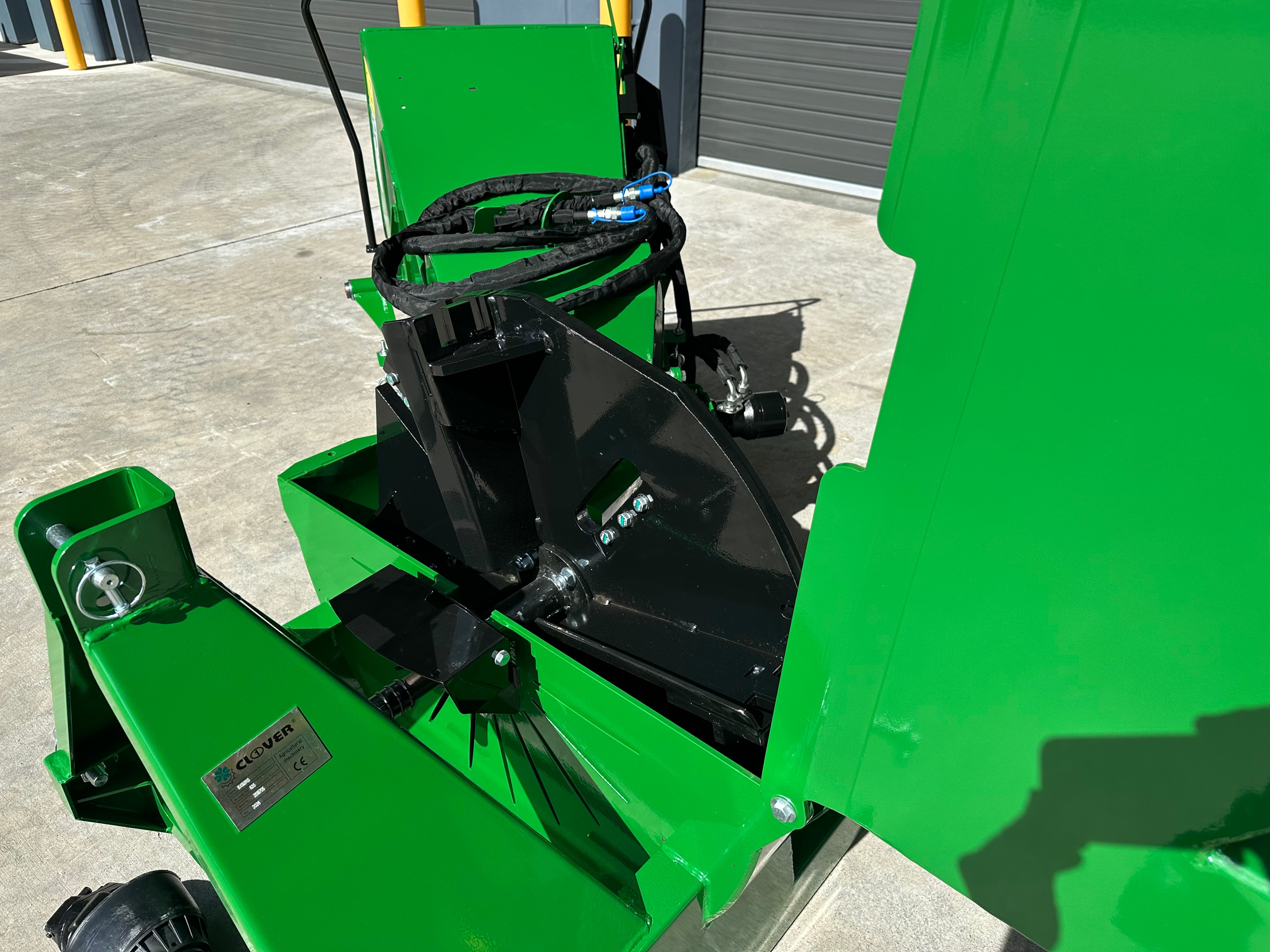

Maintenance is a hassle-free task, thanks to the fully accessible flywheel cover that can be opened with just one screw, granting you easy access to the four double-sided cutting blades. The flywheel, with a net weight of 125 kg and fitted wings, creates powerful suction, ensuring the efficient expulsion of chippings through the chute. This robust design virtually eliminates the possibility of shredding unit blockages.

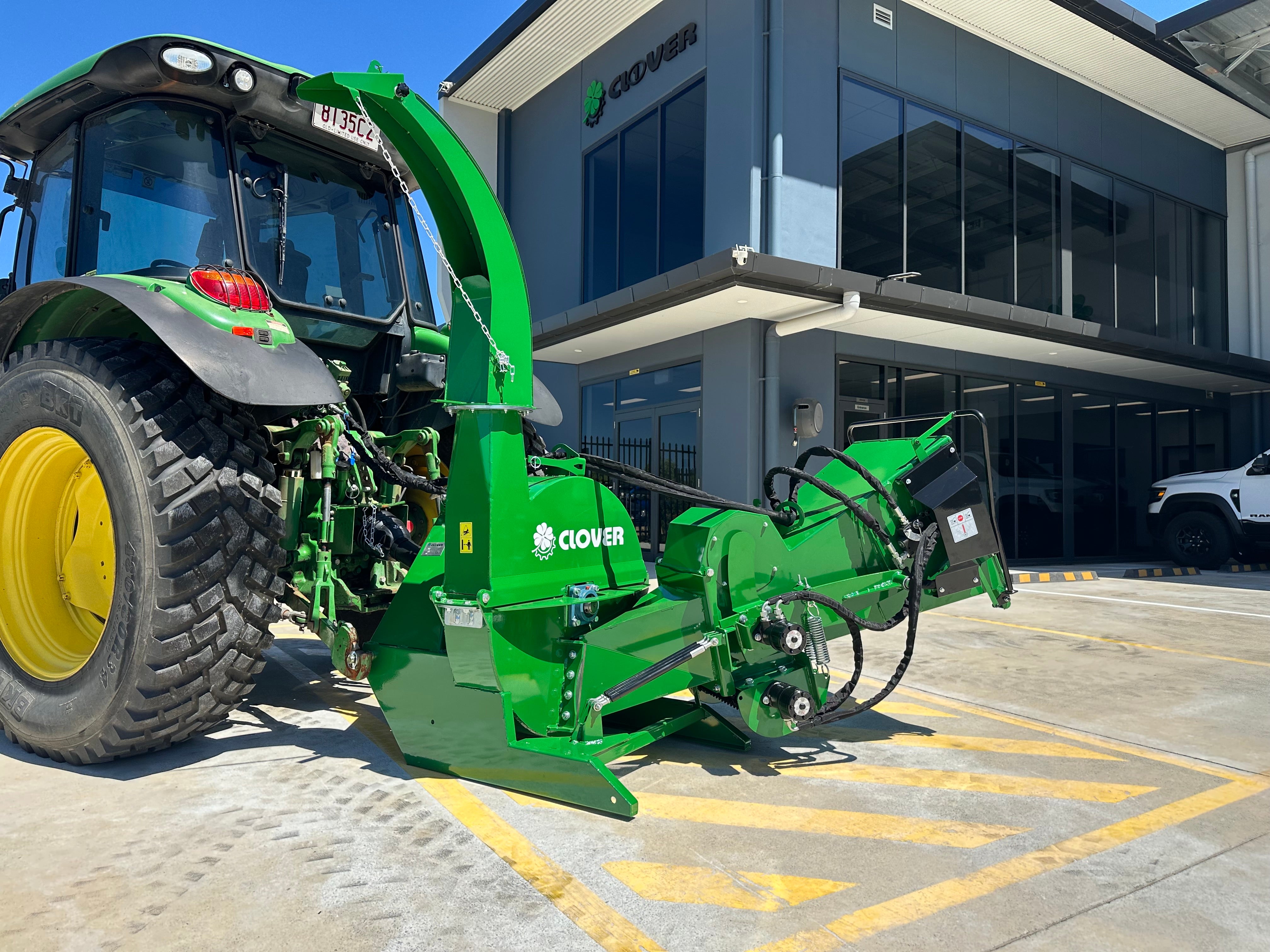

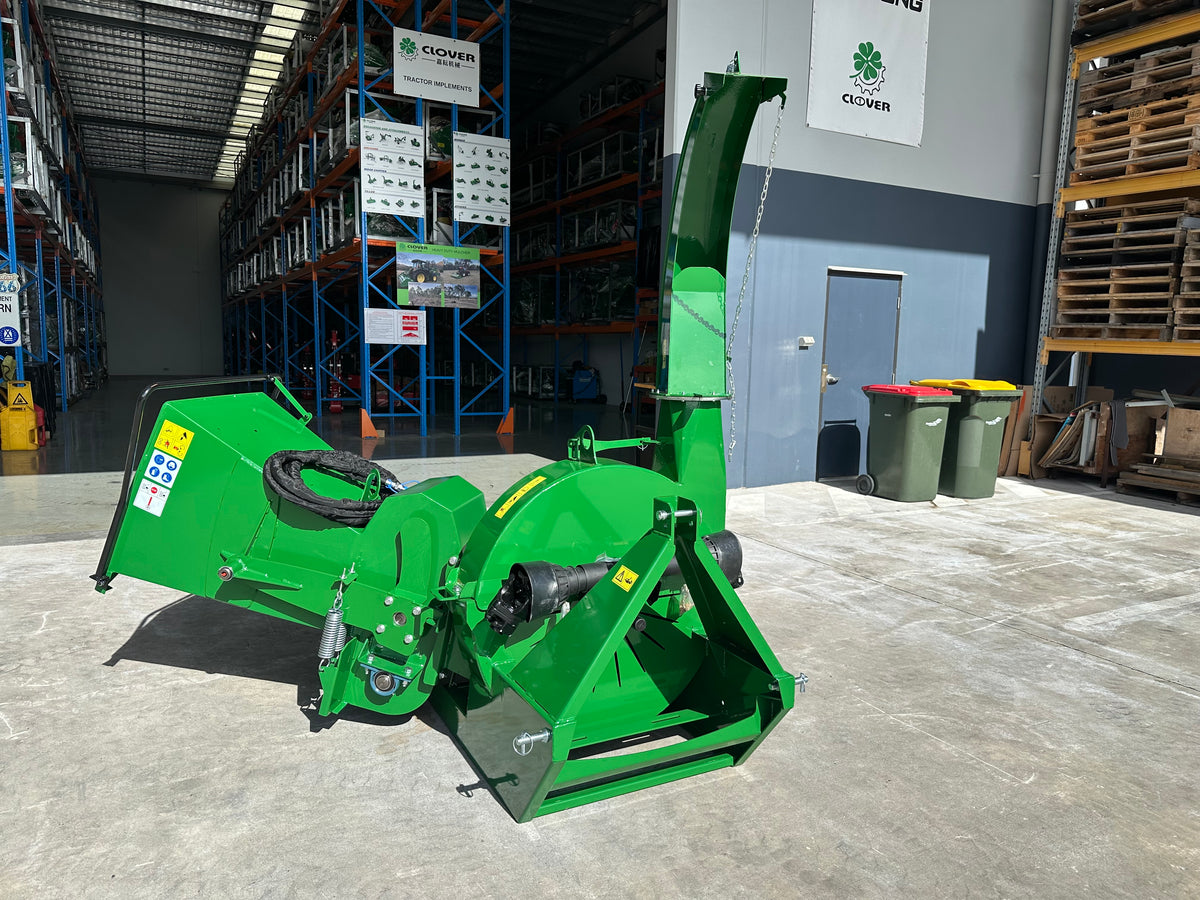

Designed for attachment to a 3-point linkage and compatible with Category I tractors, the BX series Wood Chipper is the epitome of efficiency and convenience in your wood chipping tasks.
BENEFITS & FEATURES
- Advanced hydraulic feed system for superior efficiency.

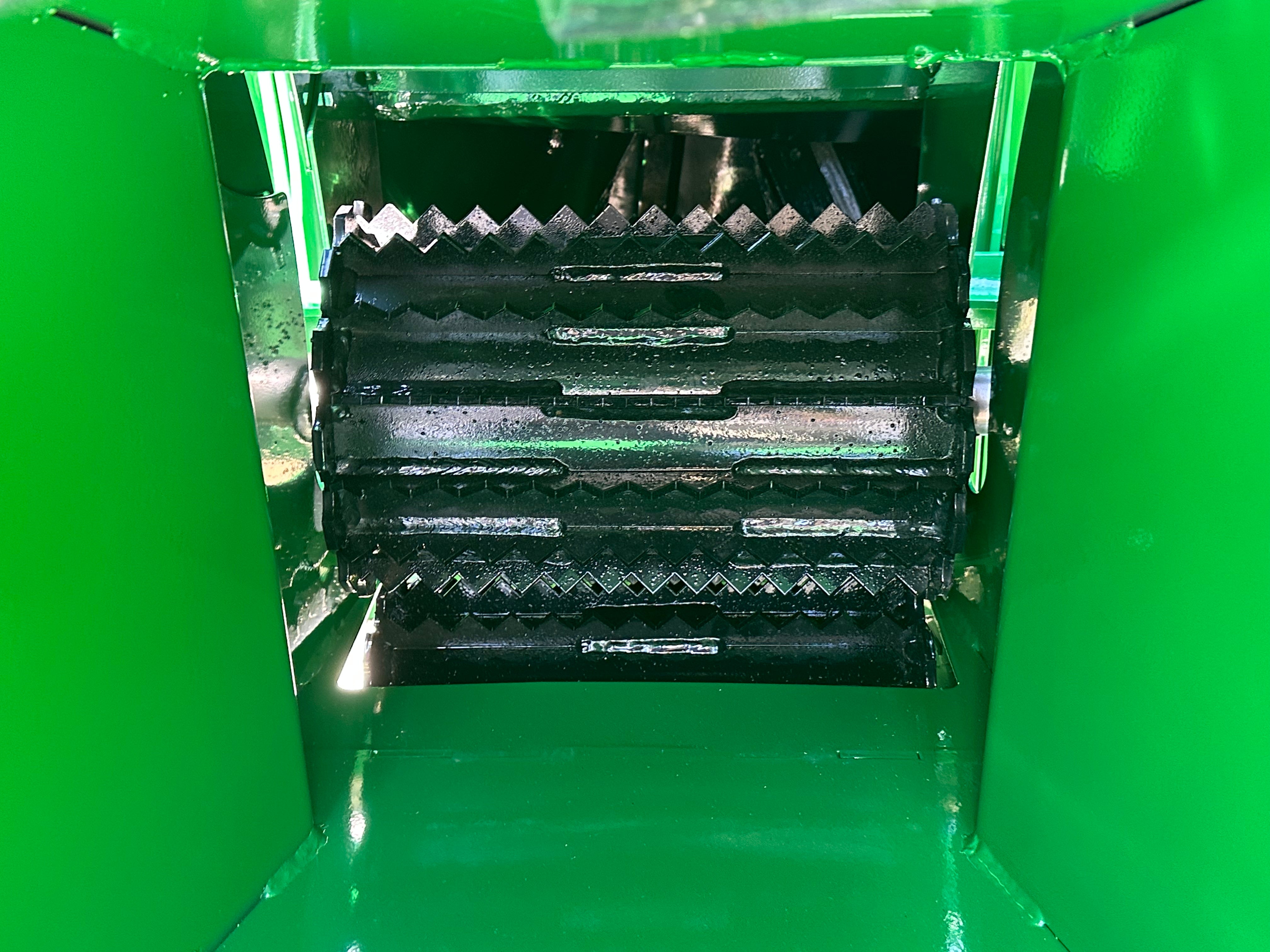

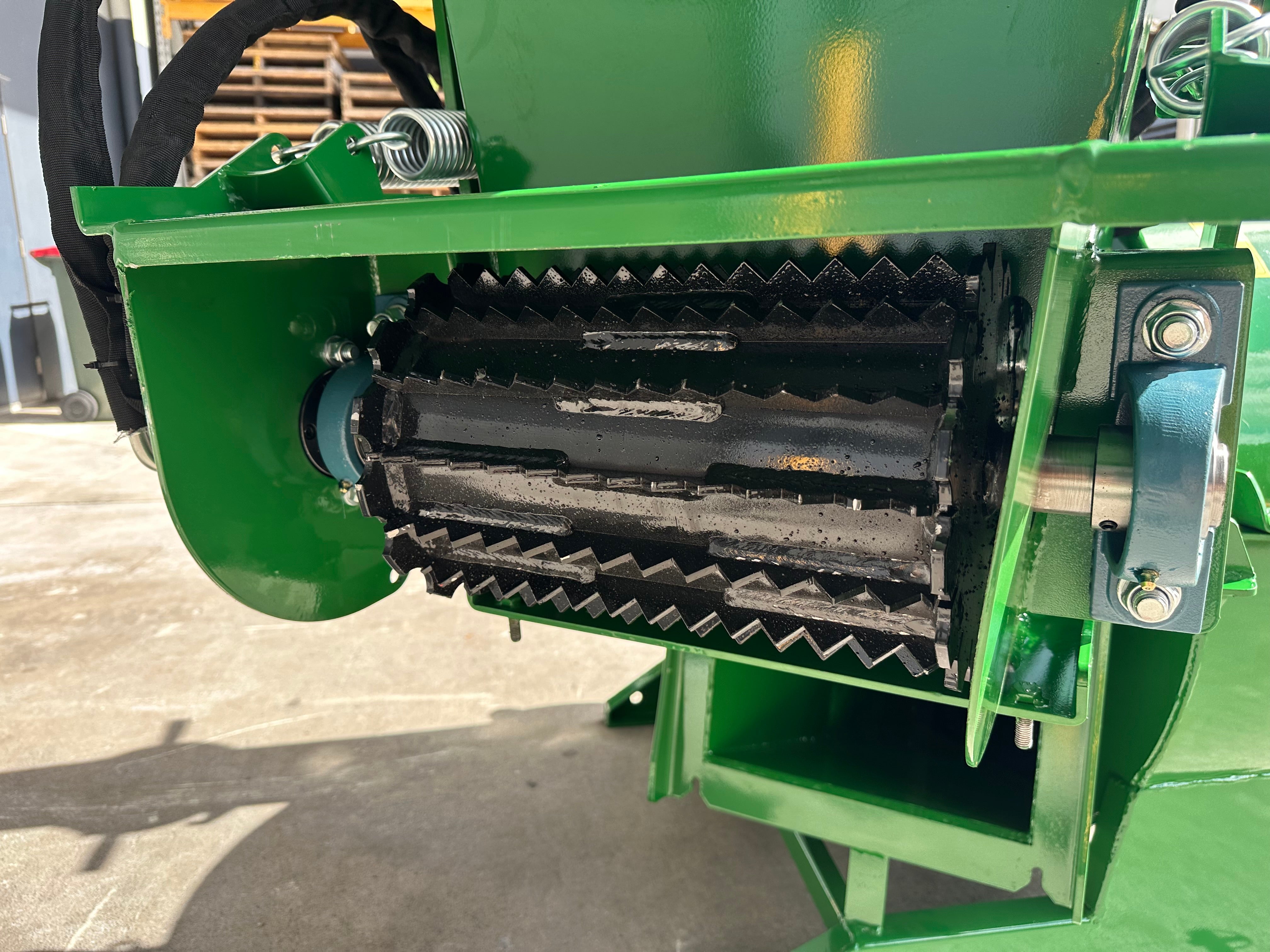

- Automation of feeding and pushing tasks with two large, independent feed rollers.
- Precise control over feed roller speed, adjustable to match material diameter.
- Quick resolution of blockages with a convenient large handle on the hopper for feed reversal or shutdown.
- Powered by tractor hydraulics, requiring a pressurised supply line and unpressurised return line or double-acting control unit.

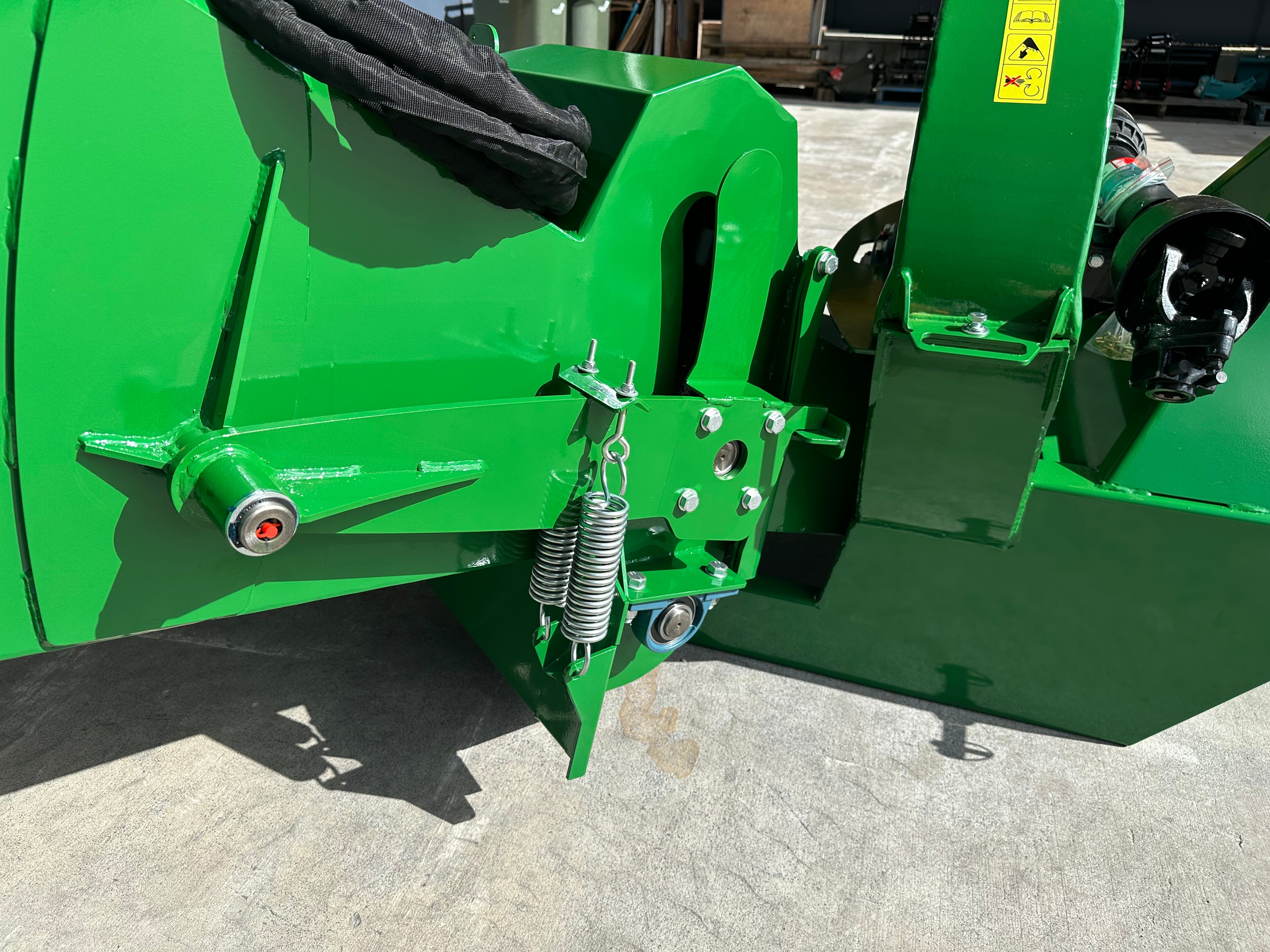

- Easy transportation with a foldable hopper securely held by a cotter pin and aided by shock absorbers.
- Hassle-free maintenance with a fully accessible flywheel cover for blade access.
- 125 kg net-weight flywheel with fitted wings for powerful chipping and blockage prevention.
- Designed for attachment to 3-point linkage and compatibility with Category I tractors.
- Fly Wheel Weight : BX42RS 42kg / BX62RS 80KG / BX92RS 136kg
MODEL SPECIFICATIONS
| Model | BX42RS | BX62RS | BX92RS |
|---|---|---|---|
| HP Range | 18-45HP | 26-65HP | 65-120HP |
| Chipper Capacity | 100mm/4'' | 150mm/6'' | 250mm/10'' |
| Rotor Size | 25" | 30" | 36" |
| Rotor Knives QTY | 4PCS | 4PCS | 4PCS |
| Mount System | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch |
| Dimensions | 1600*1600*1830mm | 1850*1550*2040mm | 1950*1750*2040mm |
| Hopper Opening | 20"x20" | 25"x25" | 27"x27" |
| Discharge Hood Rotation | 4Pcs | 4Pcs | 4Pcs |
| Discharge Hood Height | 60" | 74" | 90" |
| Rated RPM | 540-1000 | 540-1000 | 540-1000 |
| Weight (Kg) | 290 | 480 | 625 |
| Feed | hydraulic | hydraulic | hydraulic |
