S-SERIES S540 Saw Attachment

Regular price $5,999.00 Inc. GST
Model Number

Multiple Delivery Options
Reliable Customer Support
Quality You Can Trust
CE Certification Standards

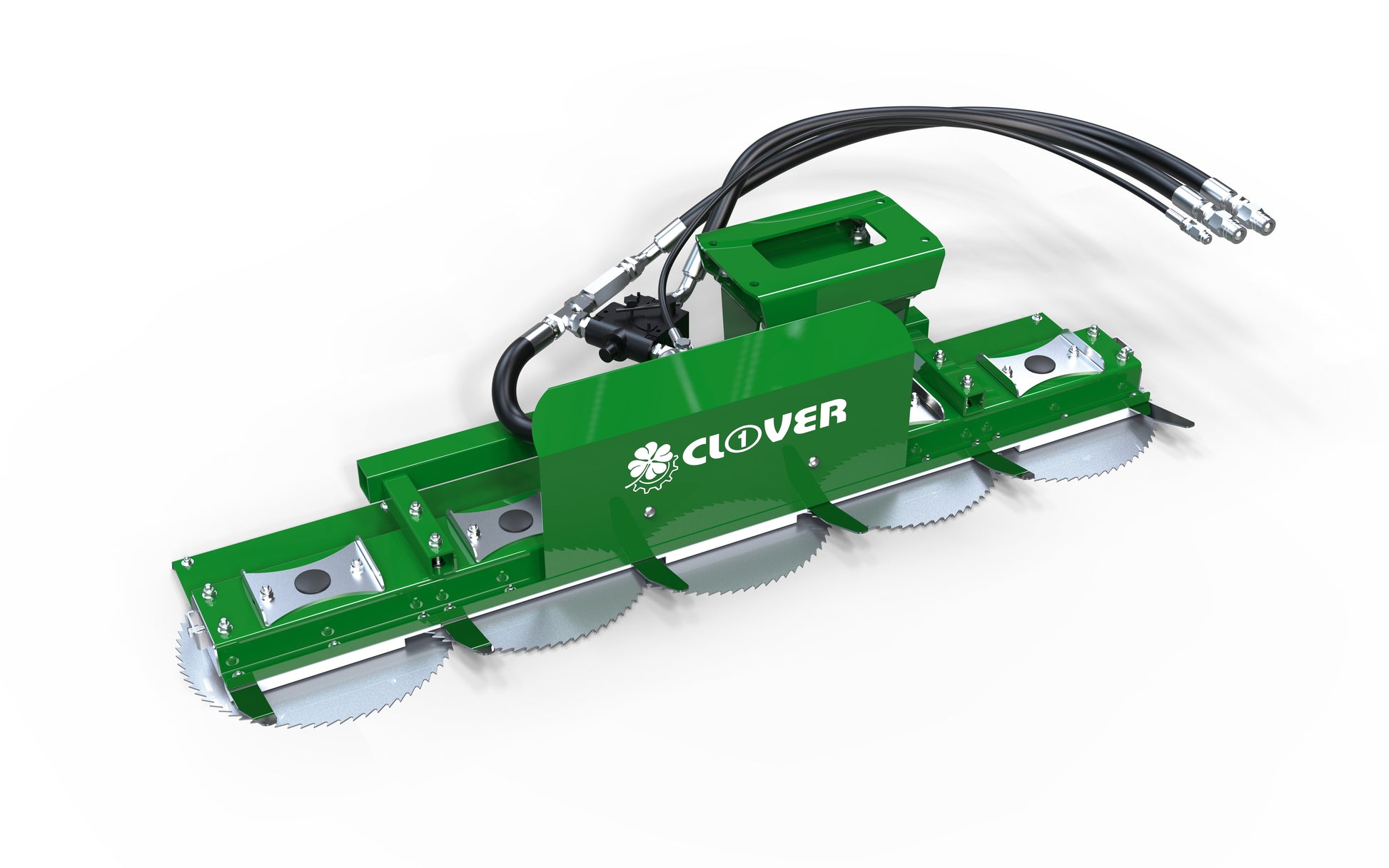

The S-Series Saw Attachment

- S540 model suitable for  Rear Mounted Hedger.

The Cloveragri S-Series saw easily cuts though branches up to 100 mm thick. The saw is smooth running with a very clean cut pattern, making it excellent for pruning shrubs and trees. Important note: Always cut thick branches from the top down to prevent the blades from jamming.


It has 5 saw blades (72 teeth each) and a diameter of 400 mm. The saw has an effective working width of approx. 1500 mm.

The S-Series saw blades are driven hydraulically. V-belts distribute power to ensure smooth saw blade operation.

This is ONLY the saw head attachment (incl. hydraulic motor and hydraulic hoses).

Required hydraulic connectors on the carrier vehicle: min. 1x double acting.

Depending on the circumstances and requirements, we recommend an operational speed of approximately 2 to 7 km/h.


S540 Technical specifications:

  • Saw blades: qty. 5
  • Saw blade diameter: Ø 400 mm
  • Saw drive: hydraulic
  • Hydraulic flow rate: min. 70 - 80 L/min.
  • Operating pressure: 160 bar
  • Required hydraulic connection: 1x double acting.
  • Saw blade drive: V-belt
  • Saw blade thickness: 3 mm
  • Saw teeth: 72 teeth per saw blade
  • Effective cutting width: 1500 mm
  • Branch diameter (max.): 100 mm
  • Operating speed: 2 - 7 km/h
  • Weight: approx. 95 kg

Notes:

The device is delivered well packed in a steel crate. The assembly is relatively simple and does not require specialist knowledge. In the event that you require any assistance, please contact Cloveragri.
