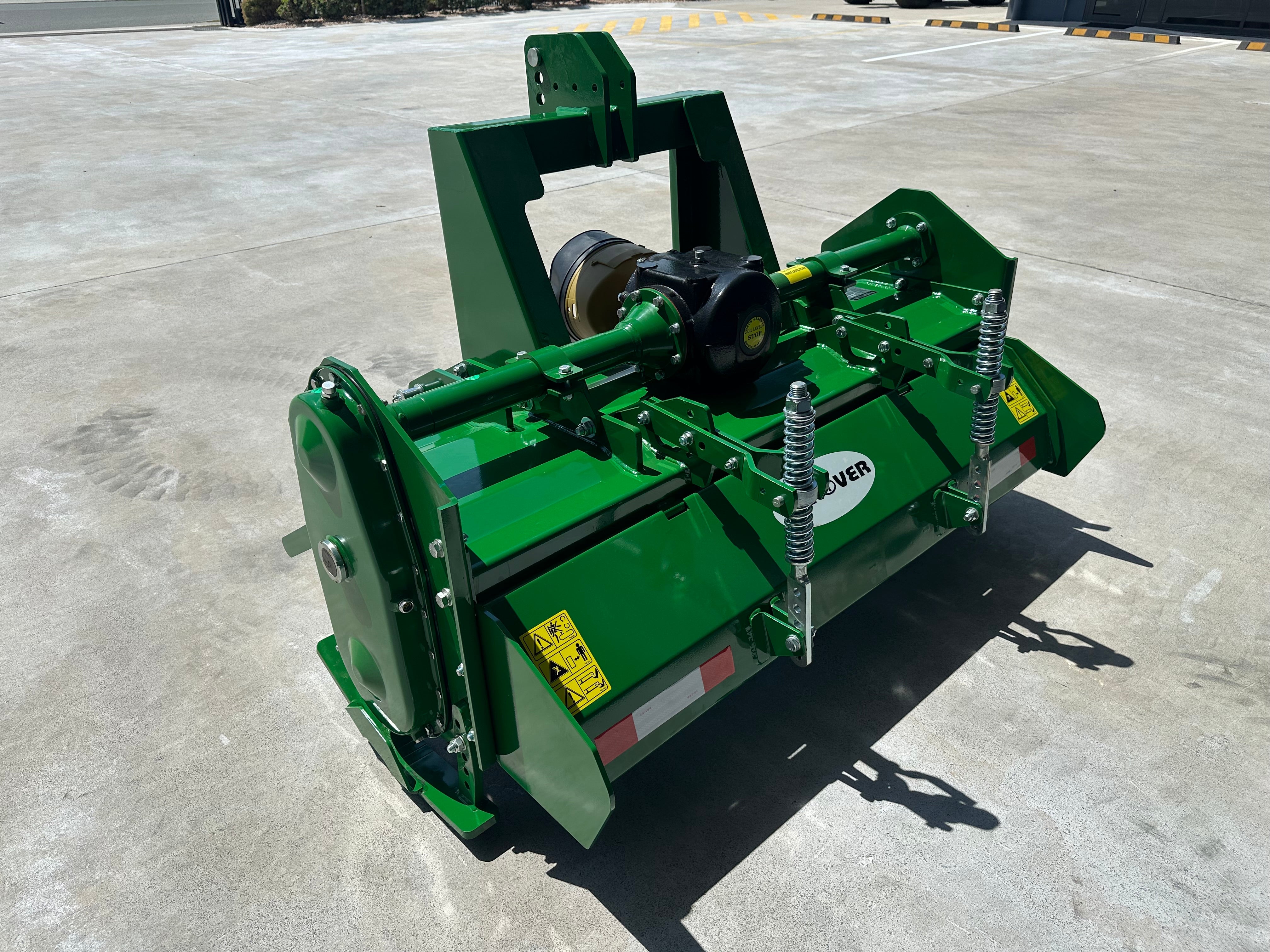

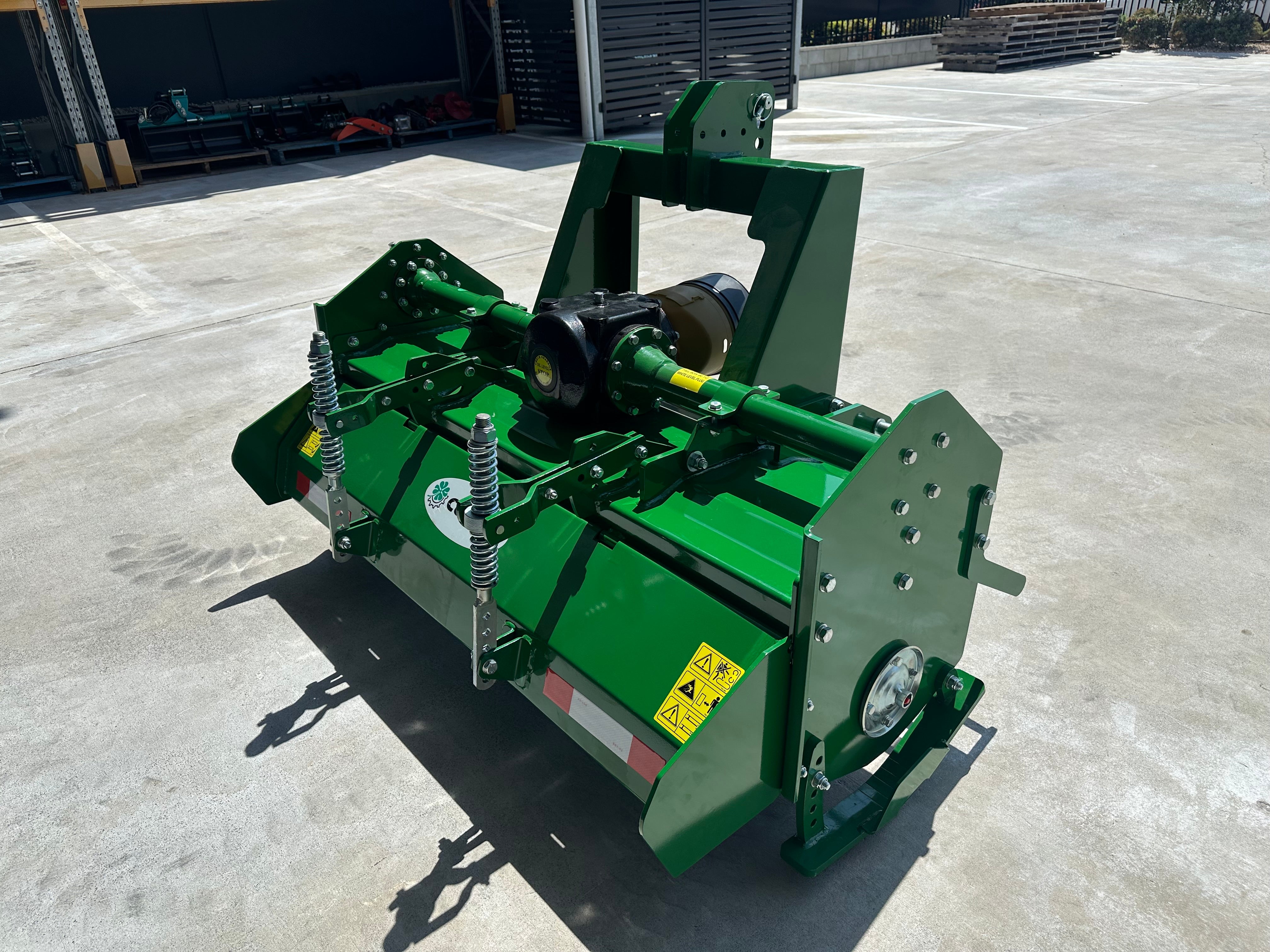

 IGNA Rotary Hoe Heavy Duty - Cloveragri

The IGNA Heavy Duty Rotary Hoe is a versatile implement suitable for small and medium-sized farms, excelling in soil preparation and cultivation on challenging terrains.

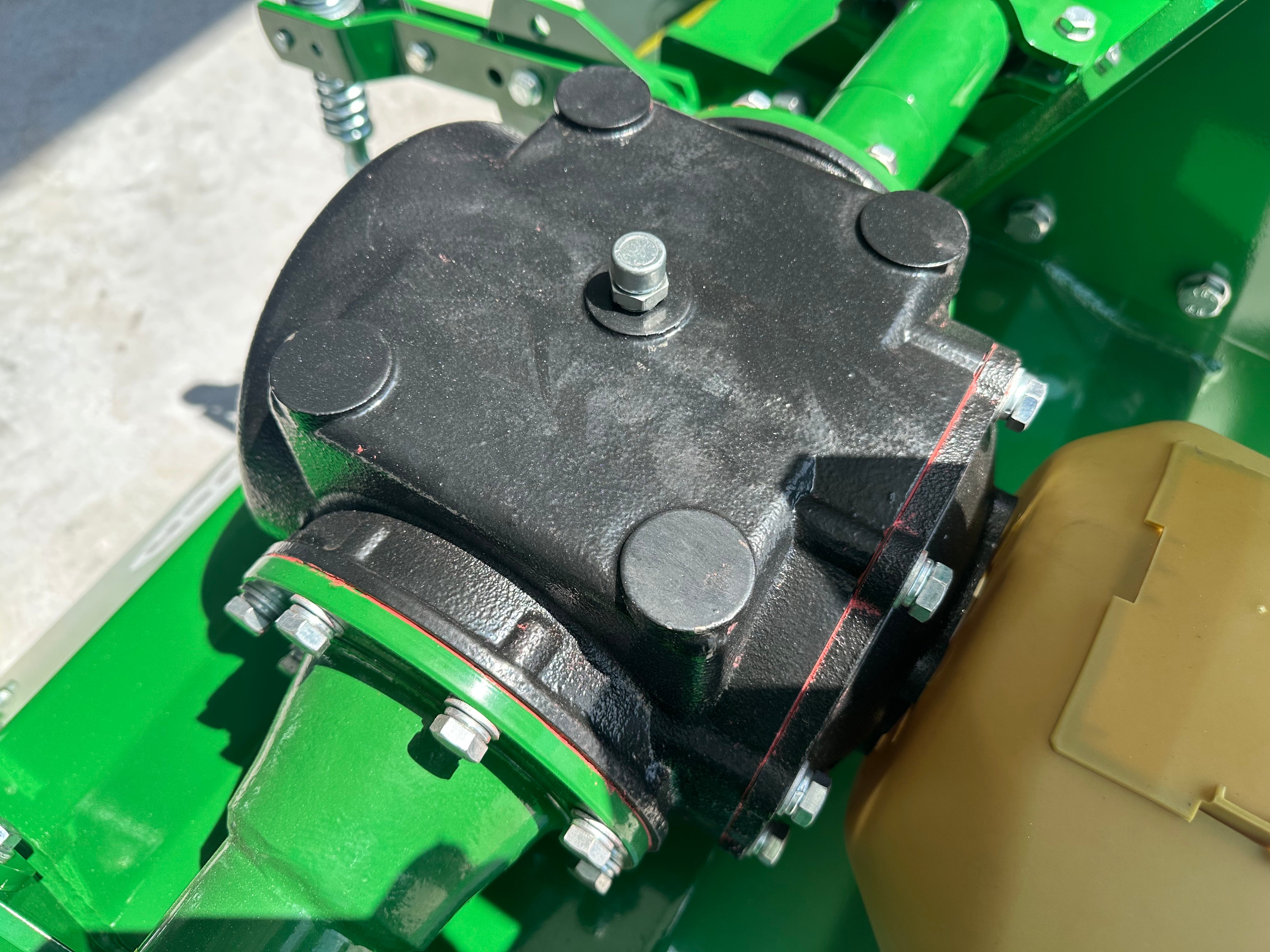

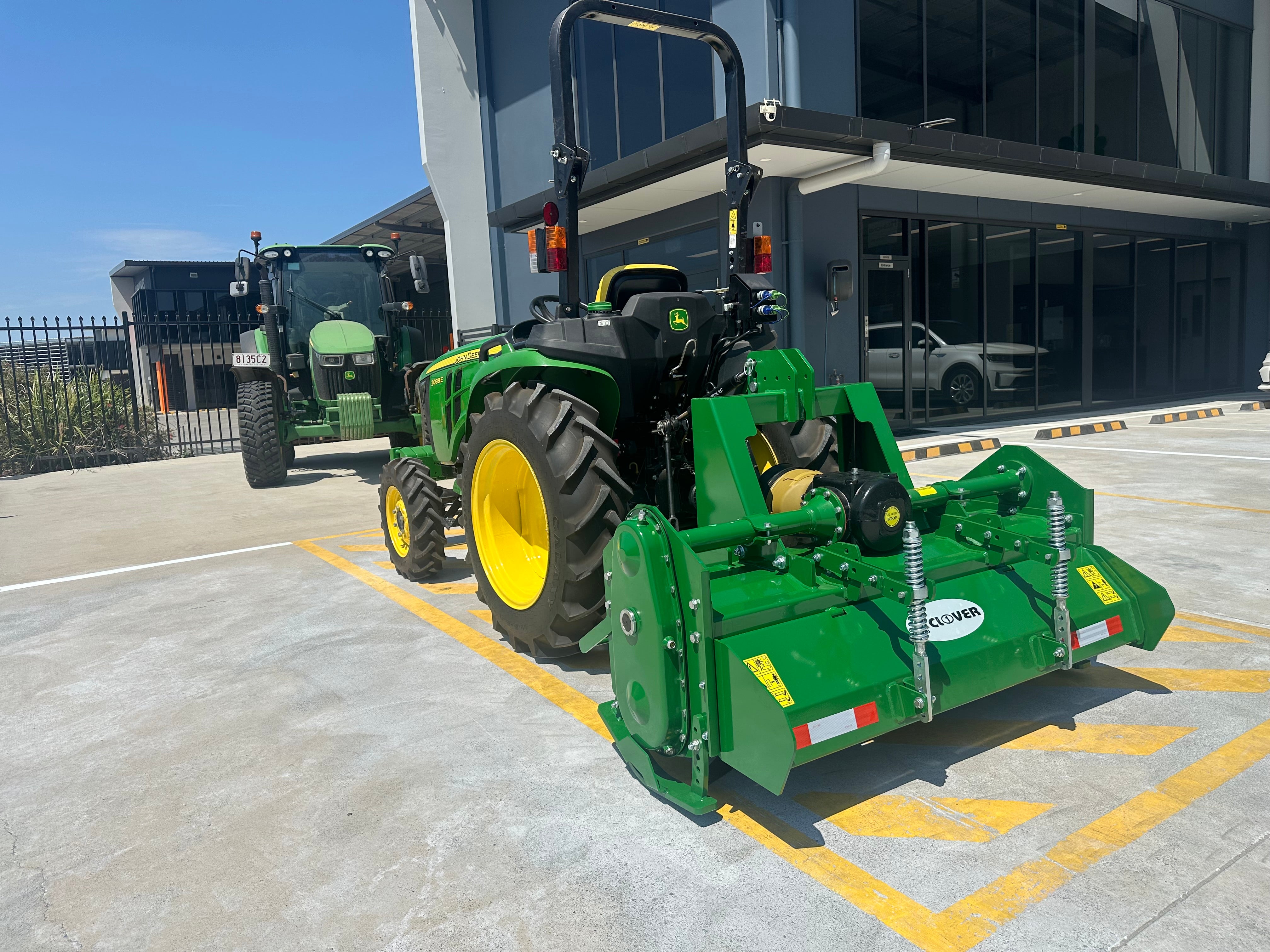

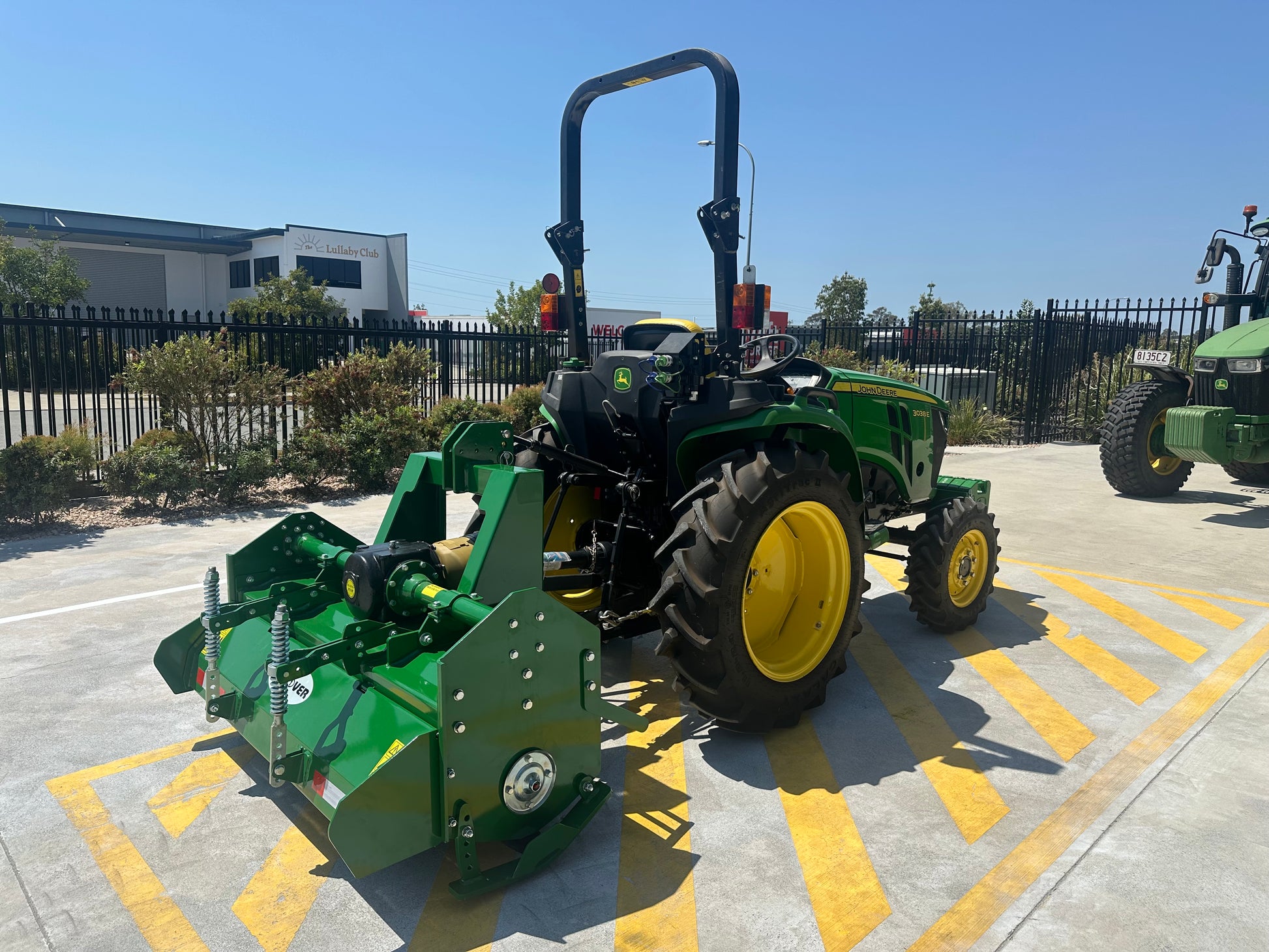

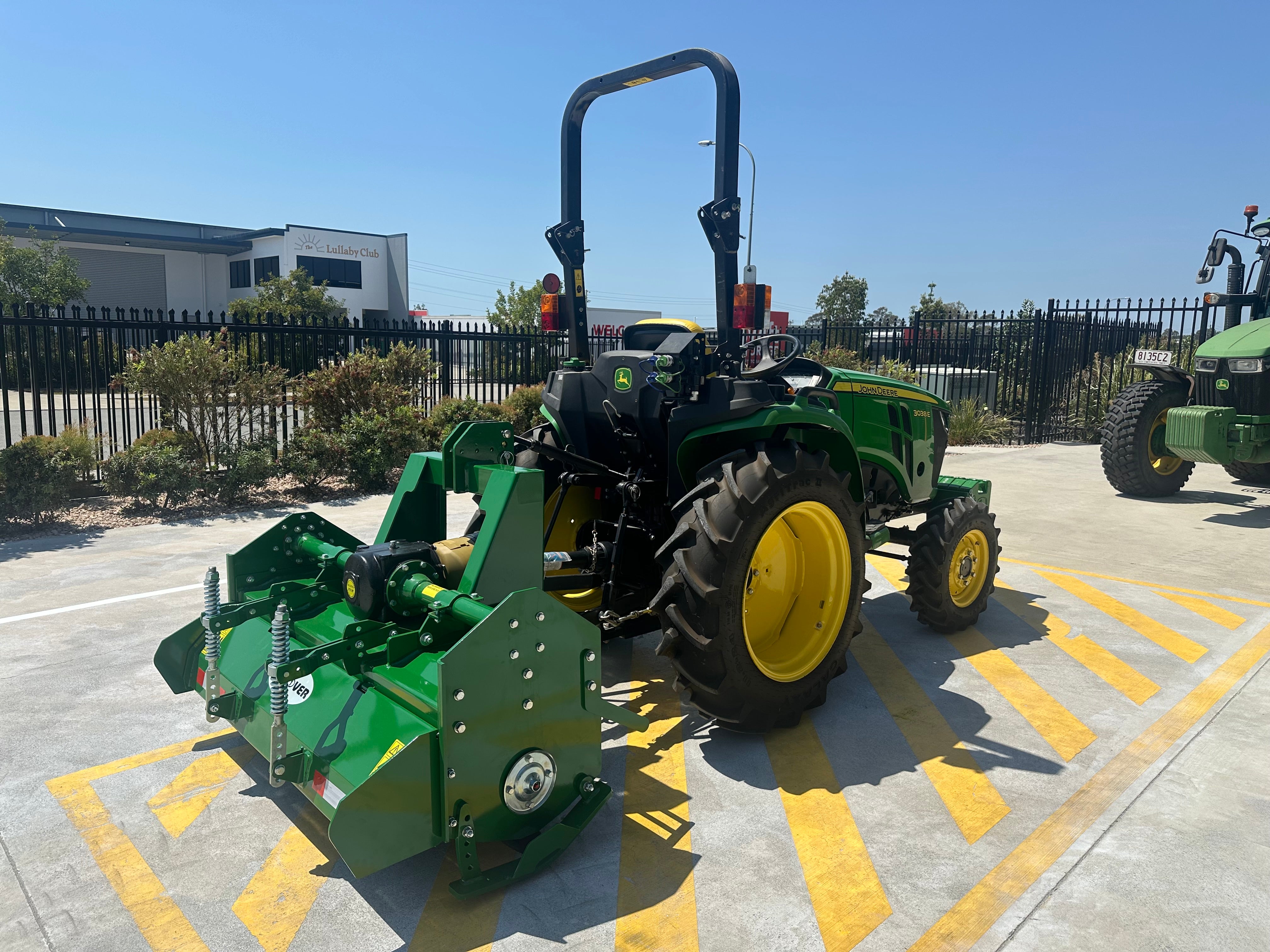

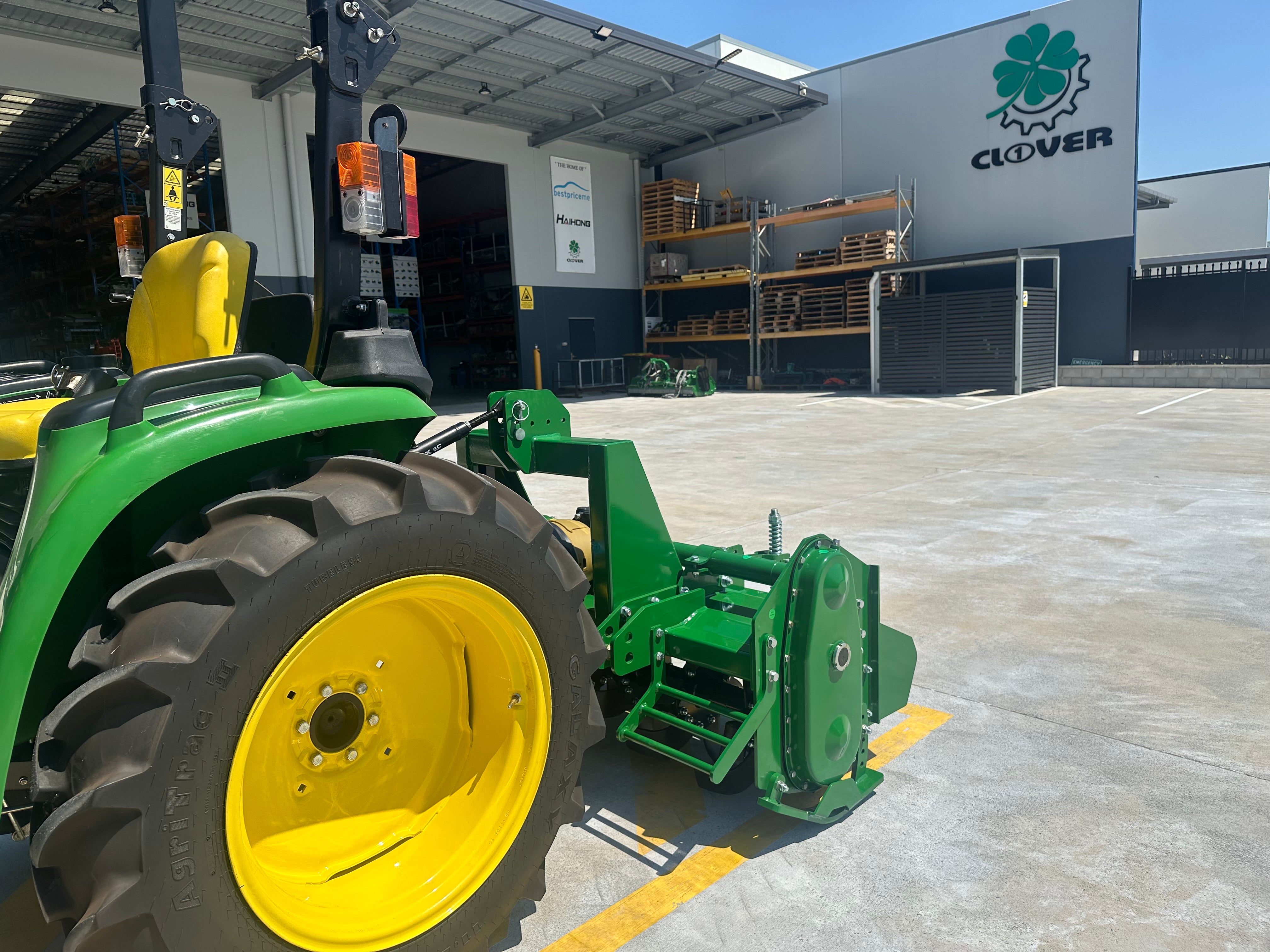

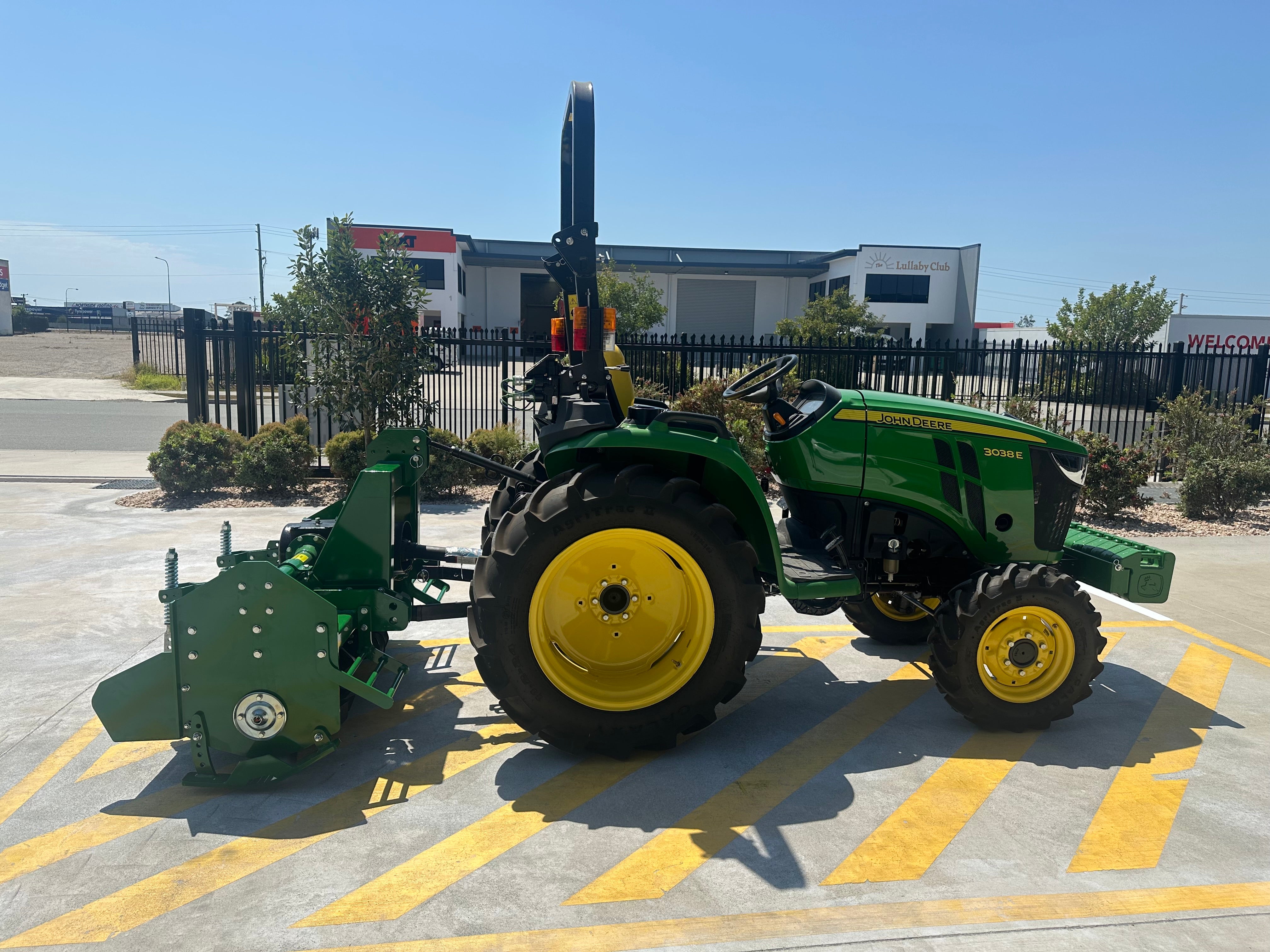

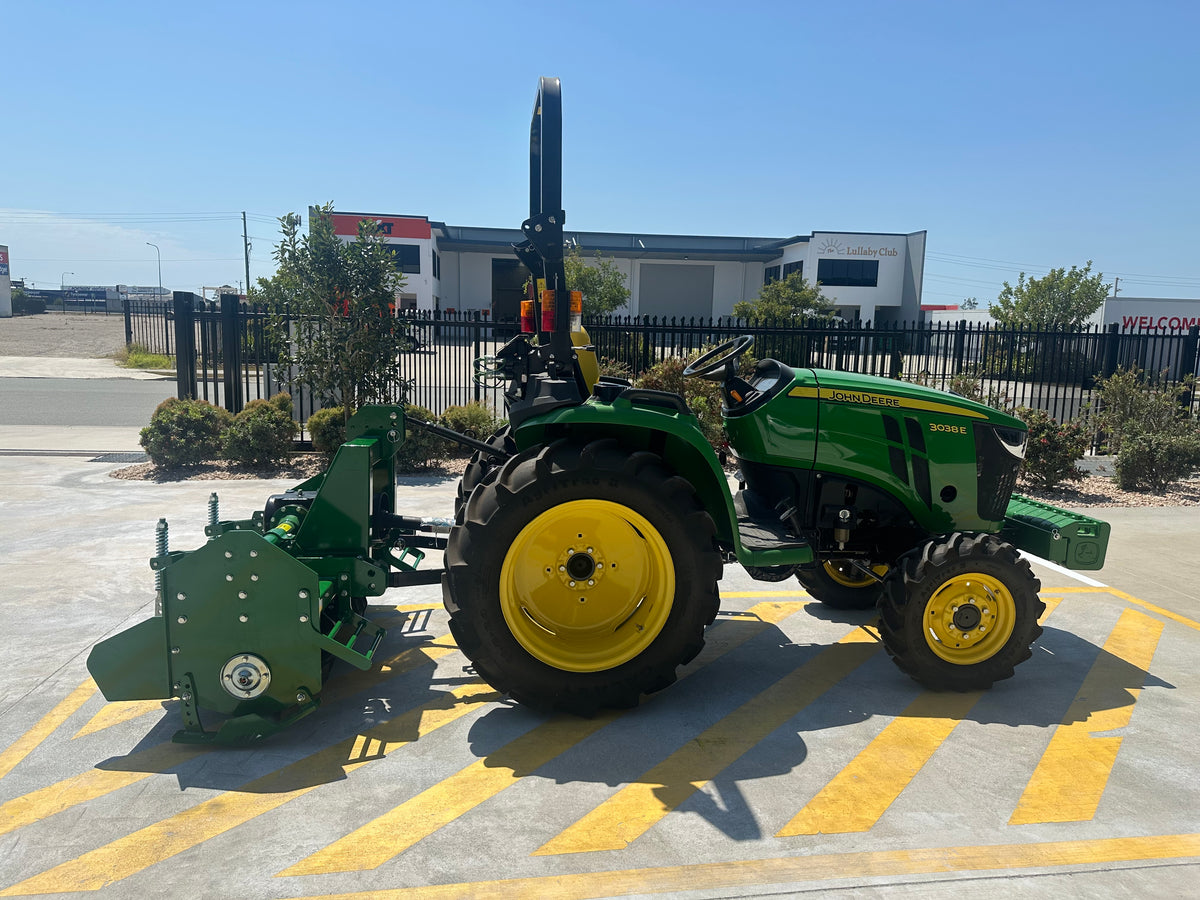

The IGNA Heavy Duty Rotary Hoe is specifically crafted for effective soil preparation and cultivation in various settings such as open fields, nurseries, orchards, vineyards and gardens, thanks to its rotating blades that efficiently break up rough uncultivated ground while also suitable for weeding and incorporating surface material into the soil. Compatible with most  tractors in the 35-100HP range, including models from Kubota, New Holland, Case IH, Massey Ferguson and John Deere, it features a Cat.2 universal three-point hitch and a robust single-speed cast-iron gearbox.

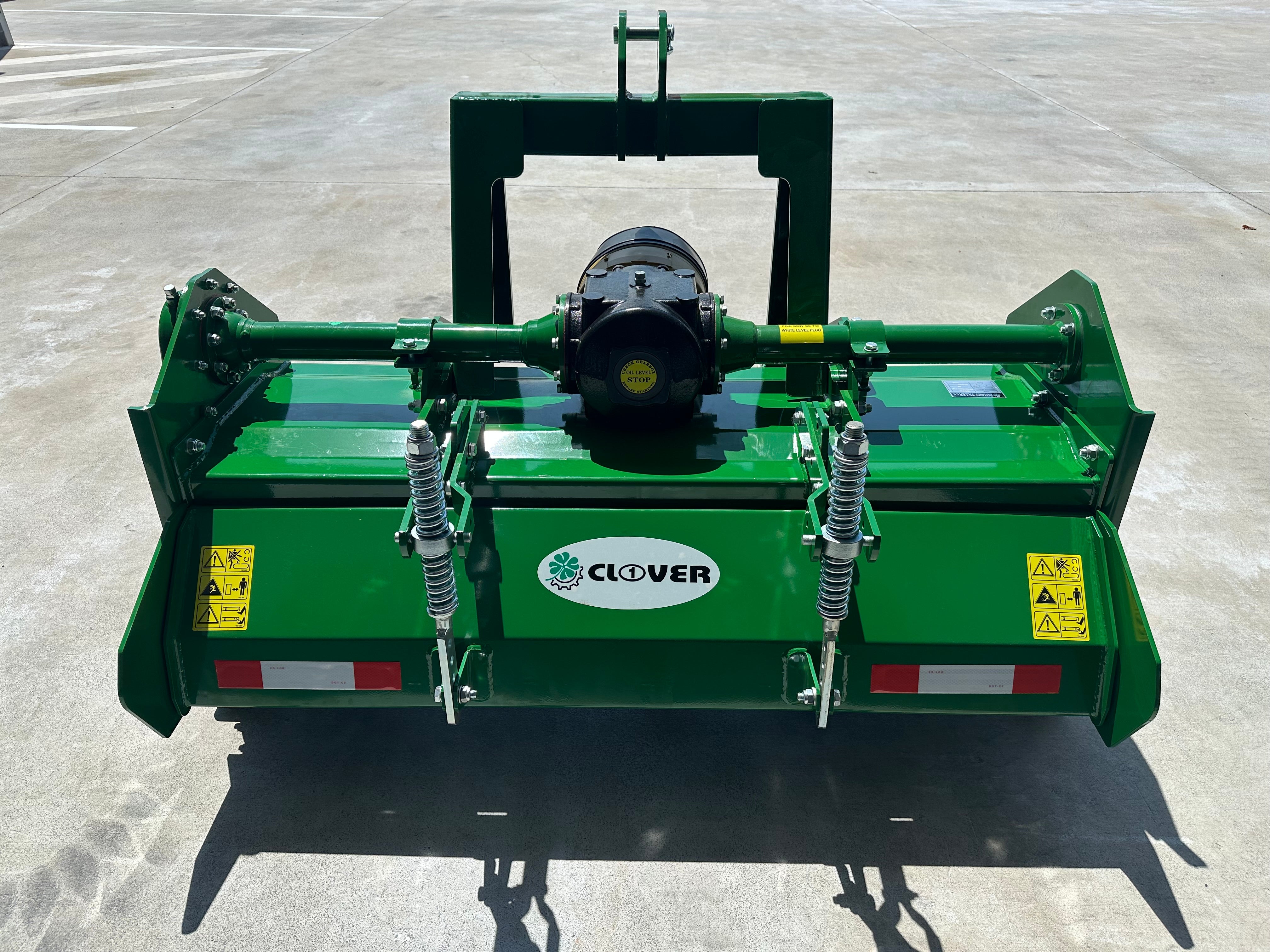

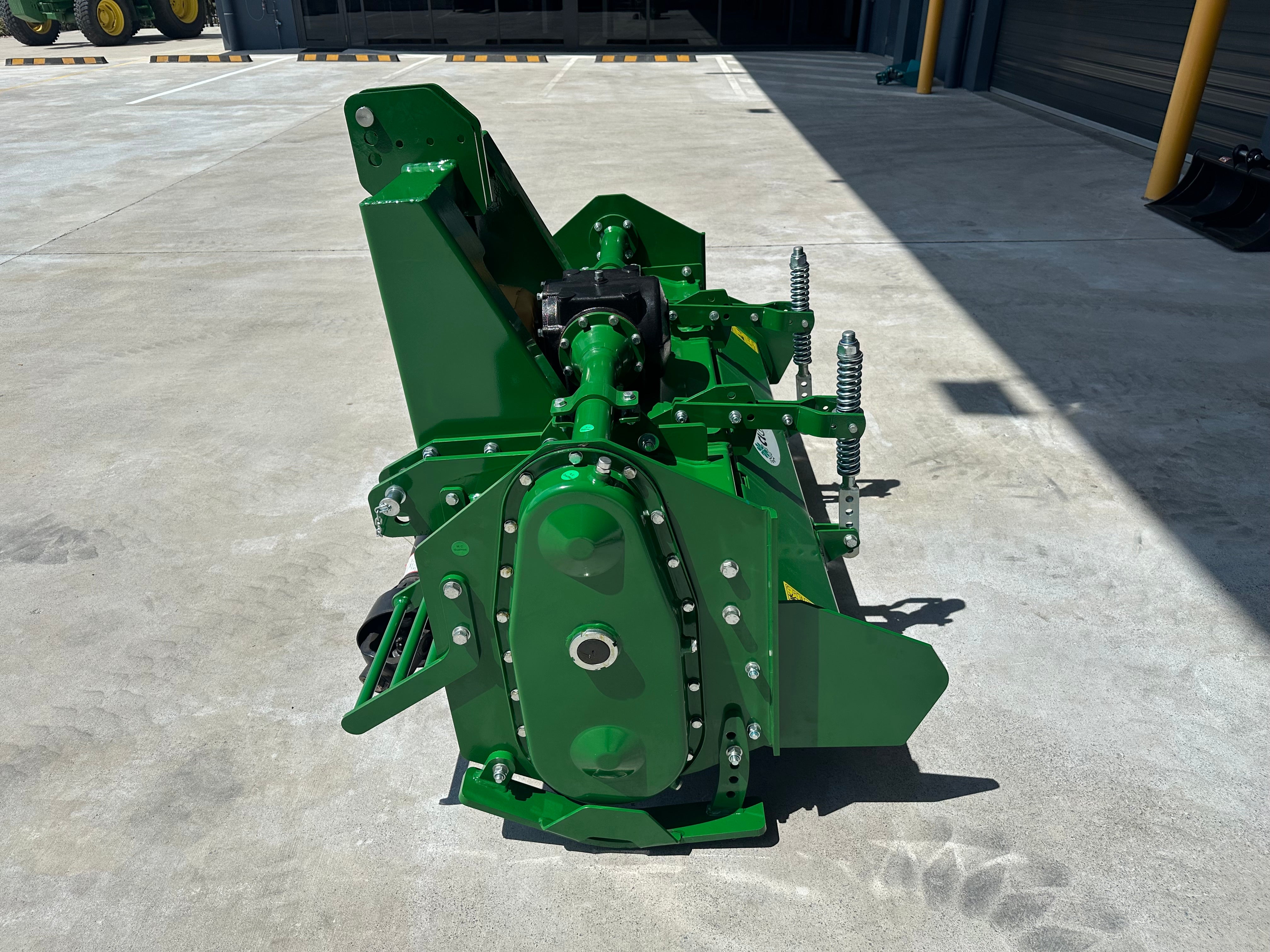

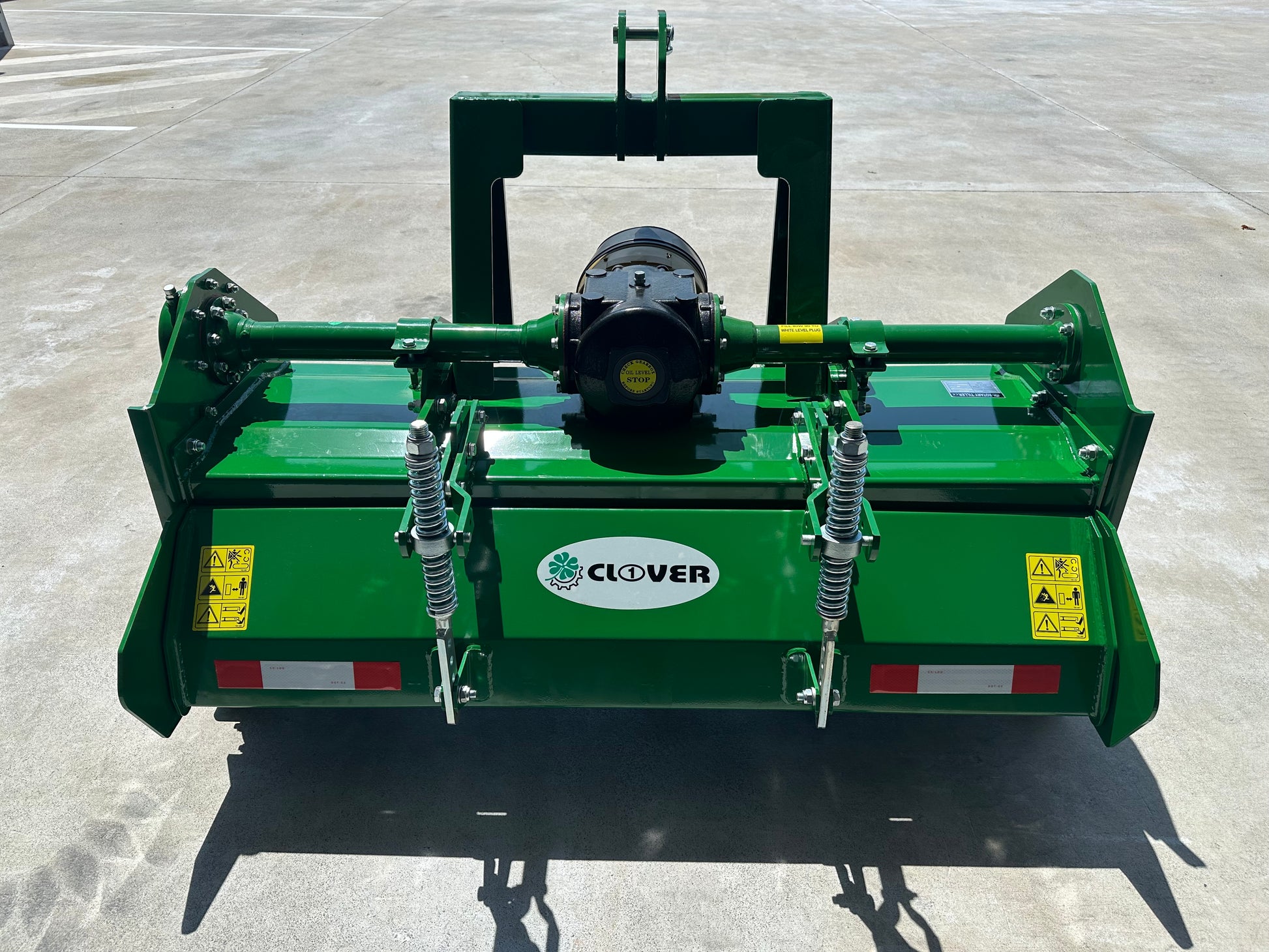

The IGNA Heavy Duty Rotary Hoe Blades are powered by the robust gearbox then through the durable side mounted gears.The rear safety flap with 4 x built-in adjustable levelling springs eliminates uneven areas in the tilled soil and ensures it is broken up finely.

One of the standout qualities of the IGNA Rotary Hoe is its ability to deliver exceptional results even on the most challenging and stubborn soils. Whether you're dealing with compacted earth, uneven terrains, or rough landscapes, this rotary hoe rises to the occasion, ensuring thorough and effective soil cultivation.

Its remarkable efficiency in conserving tractor power makes it a cost-effective choice for farmers, promoting sustainability while ensuring excellent results in agricultural operations.

FEATURES

  • Strong heavy duty design.
  • Skid thickness: 16mm / Deck thickness: 10mm / Side thickness: 5mm
  • Excellence in soil preparation and cultivation on challenging terrains.

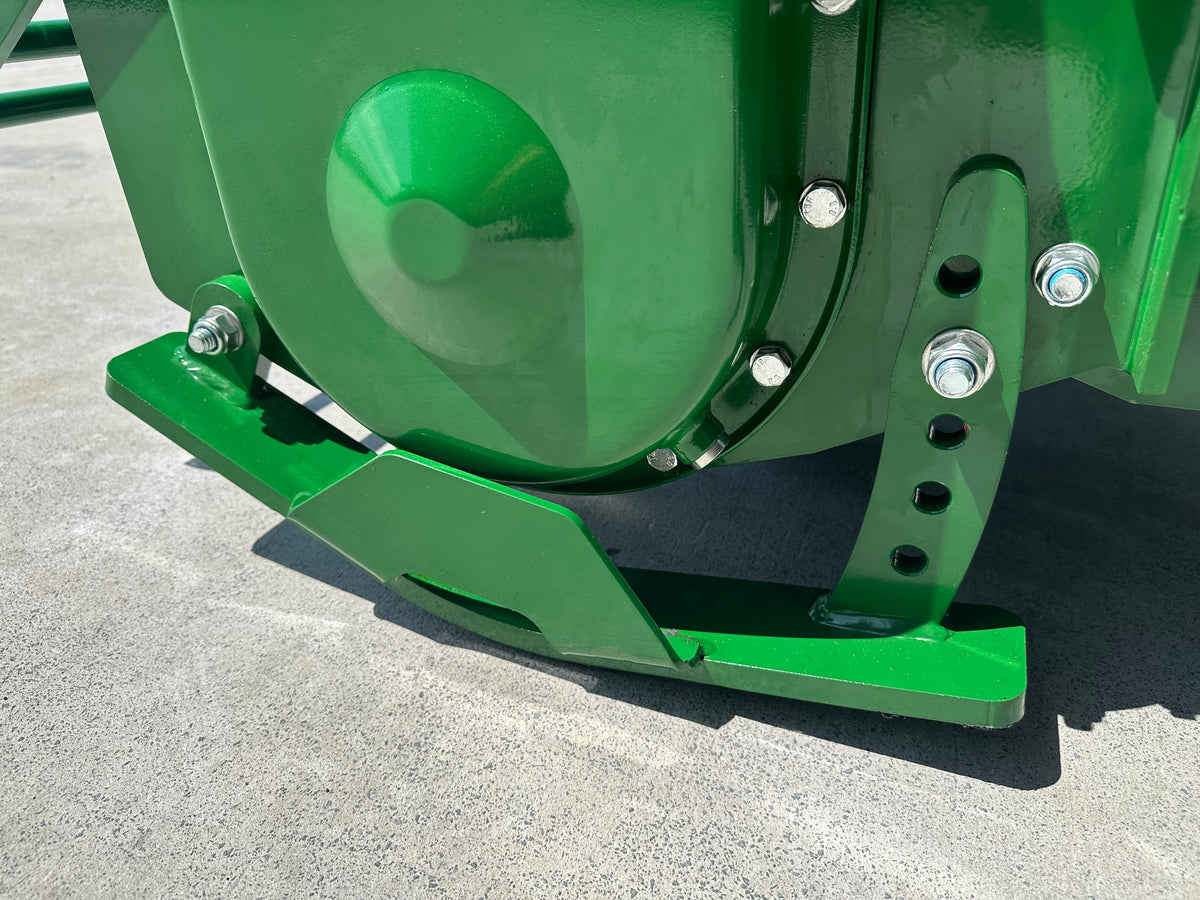

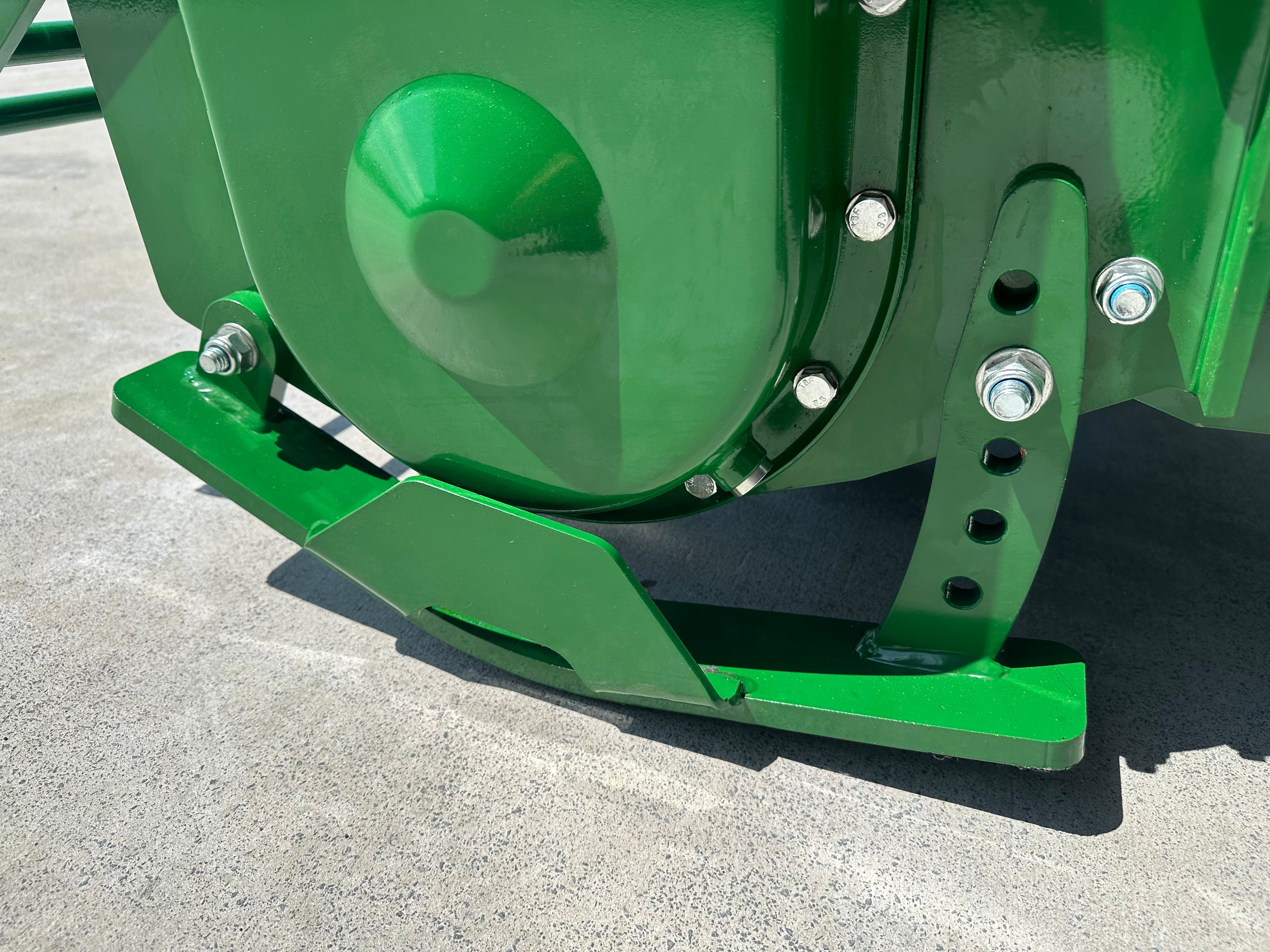

  • Adjustable side skids to obtain the desired working depth.
  • Max tilling depth: 180mm.

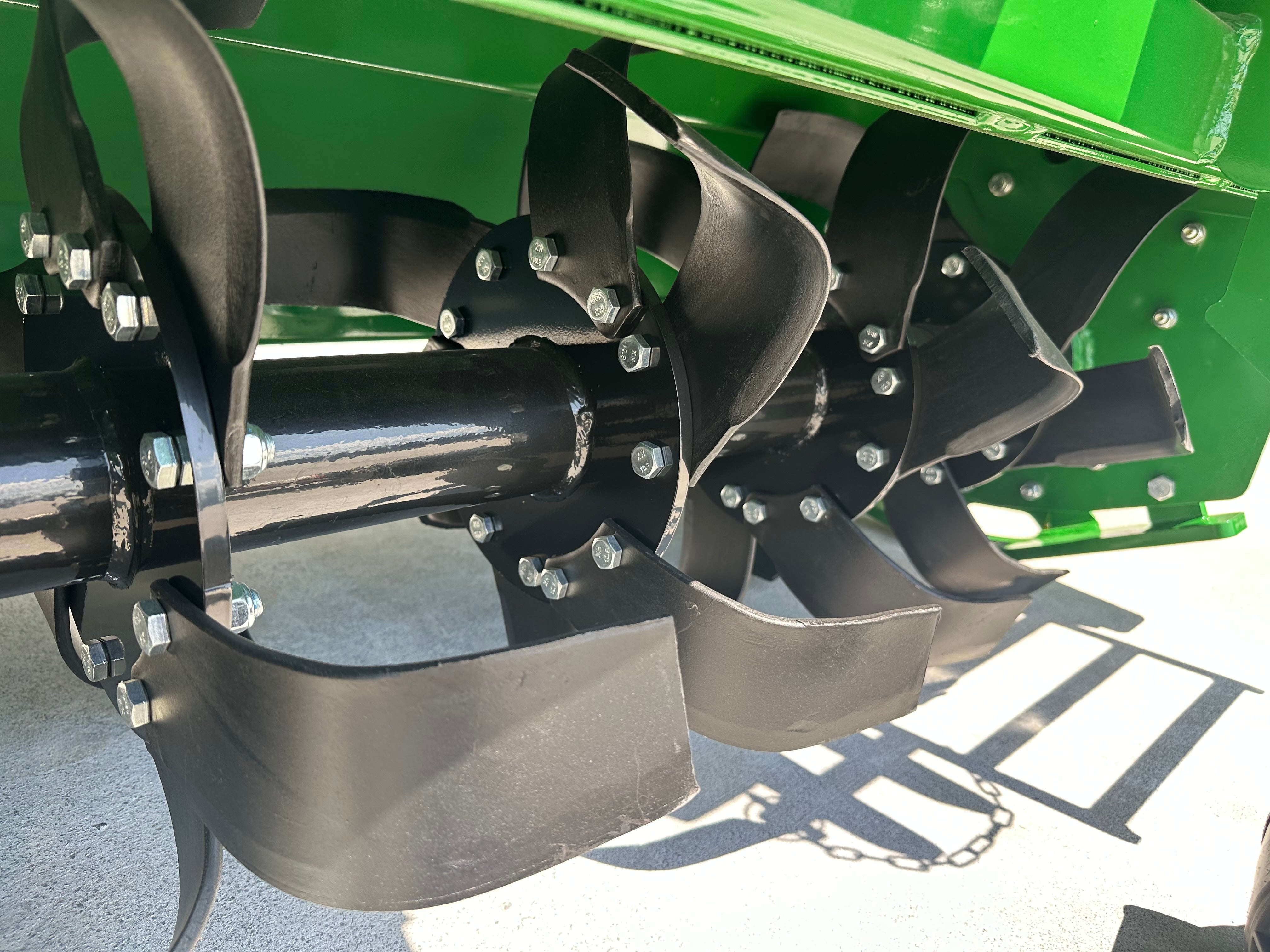

  • Six spiral blades per flange.
  • 4 x adjustable rear flap levelling springs.
  • Heavy duty 3 point hitch.

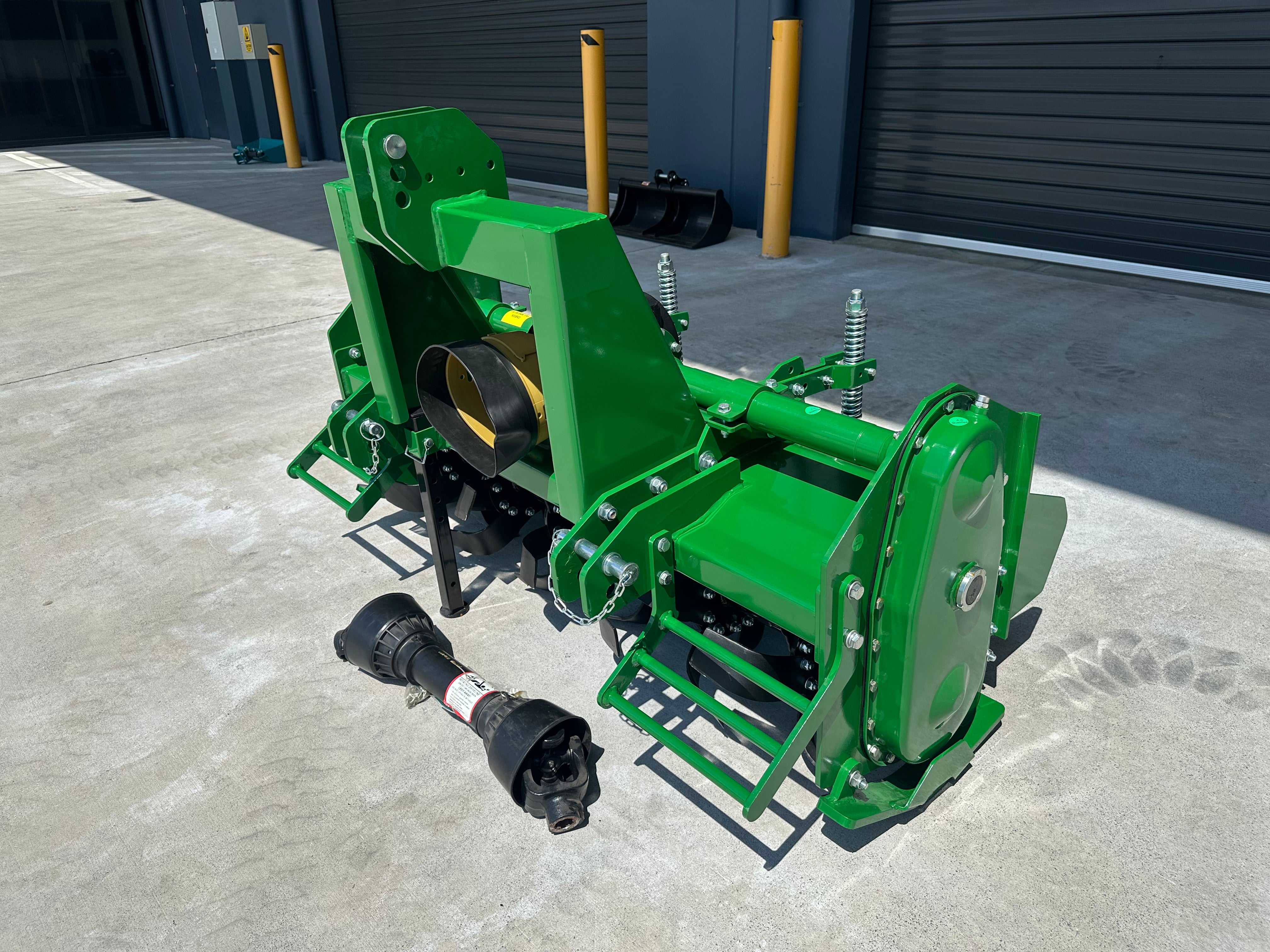

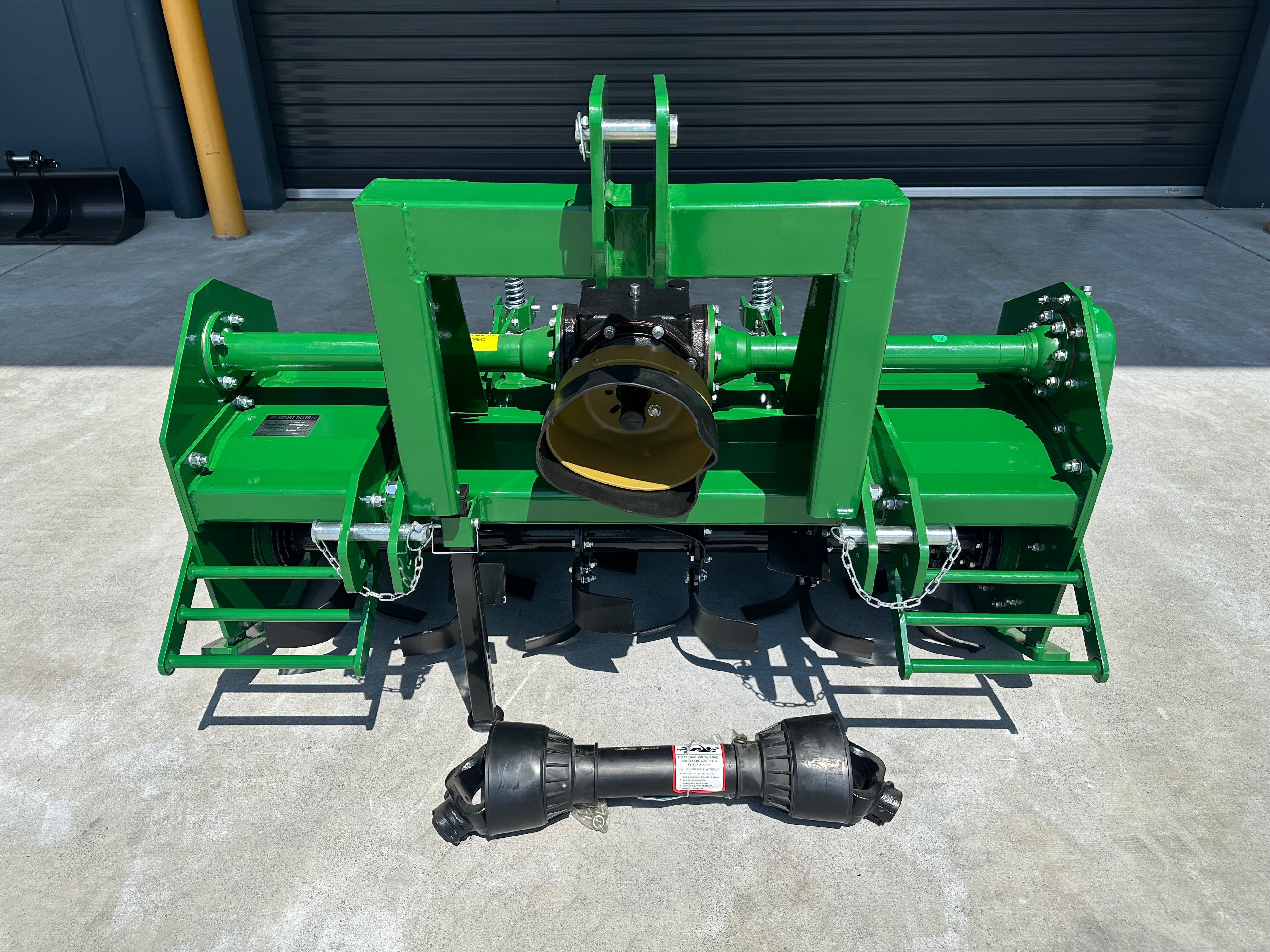

  • PTO shaft included.
  • IGNA150 465KG / IGNA180 500KG / IGNA220 560KG
  • 2 Year warranty

MODEL SPECIFICATIONS
Mod. A B C
cm Min. Max. mm RPM cm cm cm
IGNA150 150 35 65 180 6 18+18 540 167 103 114
IGNA180 180 45 85 180 7 21+21 540 197 103 114
IGNA220 220 60 100 180 9 27+27 540 237 103 114



PRODUCT DIMENSIONS DIAGRAM
