RHZ Series Verge Mulcher Heavy Duty Plus
Couldn't load pickup availability
RHZ Series Verge Mulcher Heavy Duty Plus For 70 -120HP Tractors, 540 RPM - Cloveragri

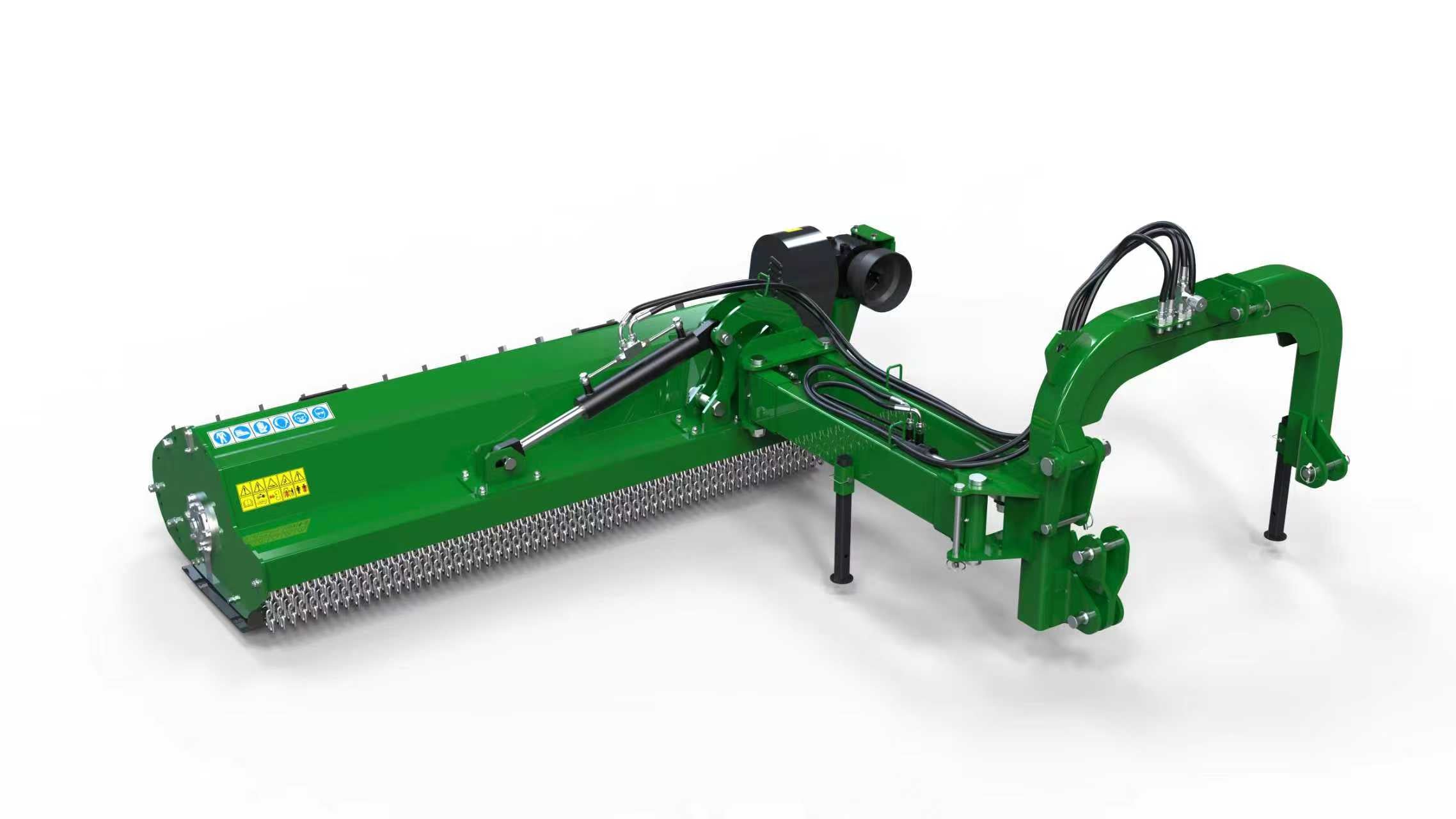

The RHZ verge mulcher is a versatile and robust implement suitable for tractors ranging from 70 to 120 HP. It excels in clearing and maintaining green areas, slopes, ditches, and roadside banks, with features like a rear open bonnet for efficient grass cutting and simplified maintenance, ensuring its effectiveness in various land maintenance tasks.
BENEFITS AND FEATURES
Oversized hydraulic pistons with block valve – Made in Italy.
Wide angle Pto shaft CE included.

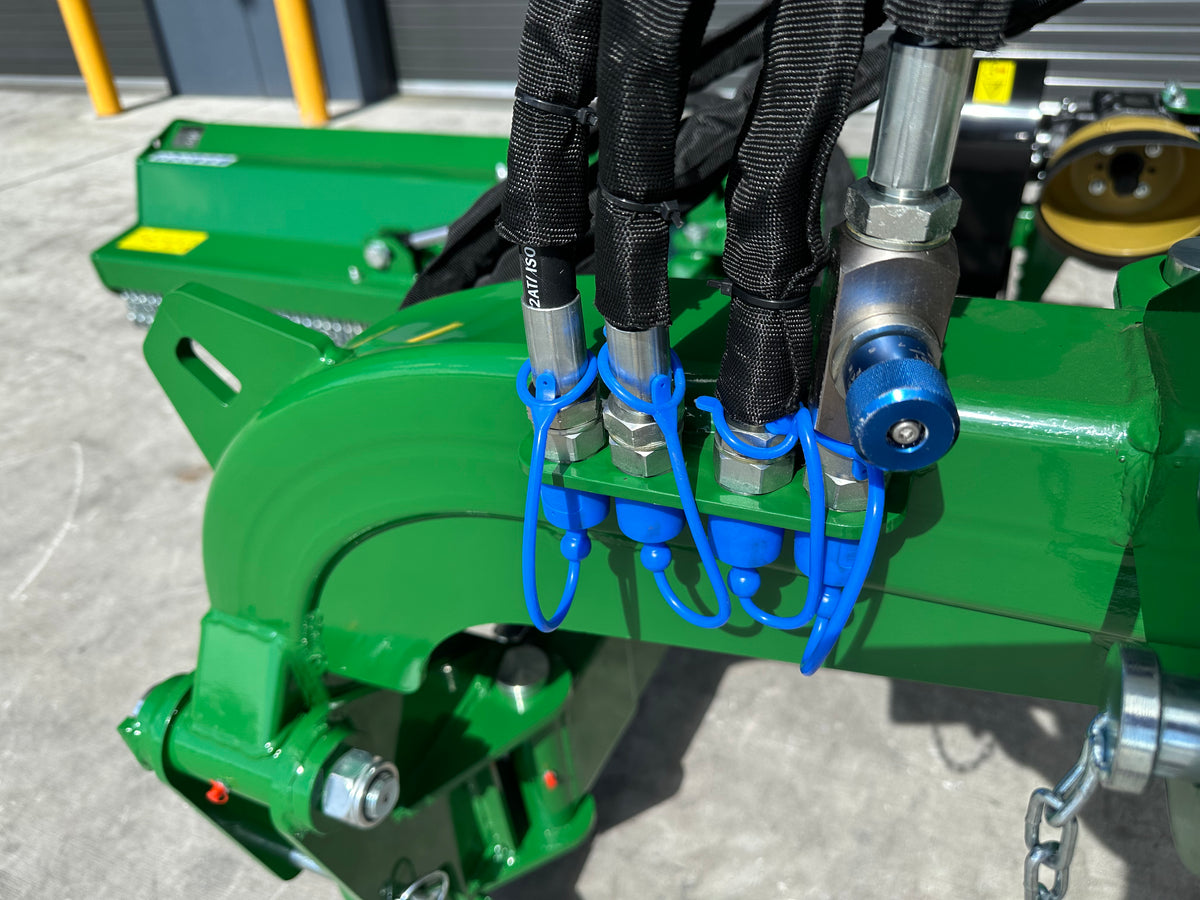

Oil flow regulation valve.
Reinforced 3-point hitch arch.
NSK brand rotor bearings Made in Japan.
Can be hydraulically angled vertically (90º) or down (60º).
External gearbox to maximize lateral reach.
Double case.
Sturdy and durable design for heavy usage.
Can operate horizontally inline or offset for verge or paddock.
Gearbox P.T.O. 540 r.p.m. with free-wheel.
Break back system to protected three point linkage.
5 high resistance toothed belts, and external belt tensioner.
152mm adjustable roller unit and skids.
168mm blade carrier
Electronically balanced rotor.
2 locking pins for road transport.
CHARACTERISTICS RHZ240
| CHARACTERISTIC | UNITS METRIC |
|---|---|
| Working width | 2395.0 mm |
| Overall width | 2590.0 mm |
| Min / Max cutting height | 35.0 - 95.0 mm |
| Weight | 790.0 kg |
| Overall height | 1150.0 mm |
| Tractor Power Range | 90 - 130 Hp |
| 3 point linkage | Cat. 2 |
| Position of the gearbox | external |
| Hood height | 470.0 mm |
| Spacing between the 2 lower points | 840.0 - 970.0 mm |
| Number of Hammers | 22 |
| Maximum cutting diameter | 50.0-60.0 mm |
| Overall length | 1750.0 mm (closed) |
| Distance between pto attachment and ground | 650.0 mm |
| Main hood thickness | 5.0 mm + reinforcements |
| Sides thickness | 10.0 mm |
| Side plates thickness | 8.0 mm |
| Gearbox: Drive method | V-Belts |
| Gearbox: Gearbox | JCTT |
| Gearbox: PTO | 540 r/min |
| Gearbox: Rotation of gearbox | Right side |
| Gearbox: Free wheel | Yes |
| Gearbox: RPM Rotor speed | 2134 rpm |
| Gearbox: Oil | 80W90 Gearbox Oil |
| Top pulley ø | 220.0 mm |
| Lower pulley ø | 165.0 mm |
| V-Belts quantity | 5 |
| V-Belts size | 17x1300 |
| Rotor: diameter | 168.0 mm |
| Rotor: bearings type and size | NSK 22309 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 1100.0 g |
| Hammer: øhole | 16.0 mm |
| Hammer: base width | 140.0 mm |
| Hammer: top width | 40.0 mm |
| Hammer: Diagonal | 97.0 mm |
| Rear roller: diameter | 152.0 mm |
| Rear roller: sheet thickness | 6.0 mm |
| Rear roller: bearings type and size | 90x40 mm - GB276-6308 |
| Displacement and Sizes | See pictures |
| Hydraulic cylinder A diam. | 80.0-35.0 mm |
| Hydraulic cylinder B diam. | 60.0-30.0 mm |
| Min./Max. Relief Pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard |
| Pto shaft | CE 6x1800 mm |
| Hood length | 770.0 mm |
BENEFITS & FEATURES
- Wide Power Range: Compatible with tractors ranging from 70 to 120 HP, ensuring it can handle a variety of tasks with ease.
- Efficient Cutting: The rear open bonnet enhances its performance in cutting long grass, contributing to efficient land maintenance.
- Residue Containment: Hammers and collecting rakes fixed in the rear bonnet effectively contain residues within the cutting chamber, promoting tidier operation and thorough crushing.
- Dependable Choice: Whether clearing overgrown areas or maintaining roadside banks, the RHZ mulcher offers efficiency and ease of use for a range of land maintenance needs.
- Heavy Duty Plus : 168mm Blade Carrier Rotor Diameter / RHZ240 - 790kg weight / 5 x drive belts / 10mm side thickness / 4.5mm deck thickness / 8mm skid thickness.
- The RMZ Verge Mulcher is designed for efficient mulching of grass, vegetable residues, bushes, and pruning materials with a diameter of up to Ø 10 cm.
- Reinforced head stock.
- Speed Regulated hydraulic cylinders.
- Versatile: Suitable for various agricultural and land maintenance tasks, making it a versatile addition to farming equipment.
- Easy Maintenance: Simplified maintenance tasks, such as changing hammers, are facilitated by its design, ensuring minimal downtime.
Please Note : Tractor requires dual rear hydraulic remotes to operate the RHZ Verge Mulcher.
Pictures for illustration purpose only. Specifications and prices are subject to change without notice.
MODEL SPECIFICATIONS
| Mod. |  |
 |
|
 |
 |
 |
Rotor Dia | Roller Dia |  |
α | β | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| cm | Min. | Max. | n° | n° | n° | cm | cm | RPM | ° | ° | cm | cm | cm | cm | cm | |
| RHZ200 | 199 | 70 | 100 | 18 | 14 | 5 | 168 | 152 | 540 | 90 | 65 | 292 | 183 | 200 | 24 | 165 |
| RHZ220 | 219 | 70 | 110 | 20 | 14 | 5 | 168 | 152 | 540 | 90 | 65 | 312 | 183 | 220 | 24 | 165 |
| RHZ240 | 239 | 90 | 120 | 22 | 16 | 5 | 168 | 152 | 540 | 90 | 65 | 312 | 183 | 240 | 24 | 165 |
PRODUCT DIMENSIONS DIAGRAM
