VMZ Series Mulchers Heavy Duty
Couldn't load pickup availability
BUY ONLINE AND RECEIVE A FREE SET OF BLADES AND DRIVE BELTS

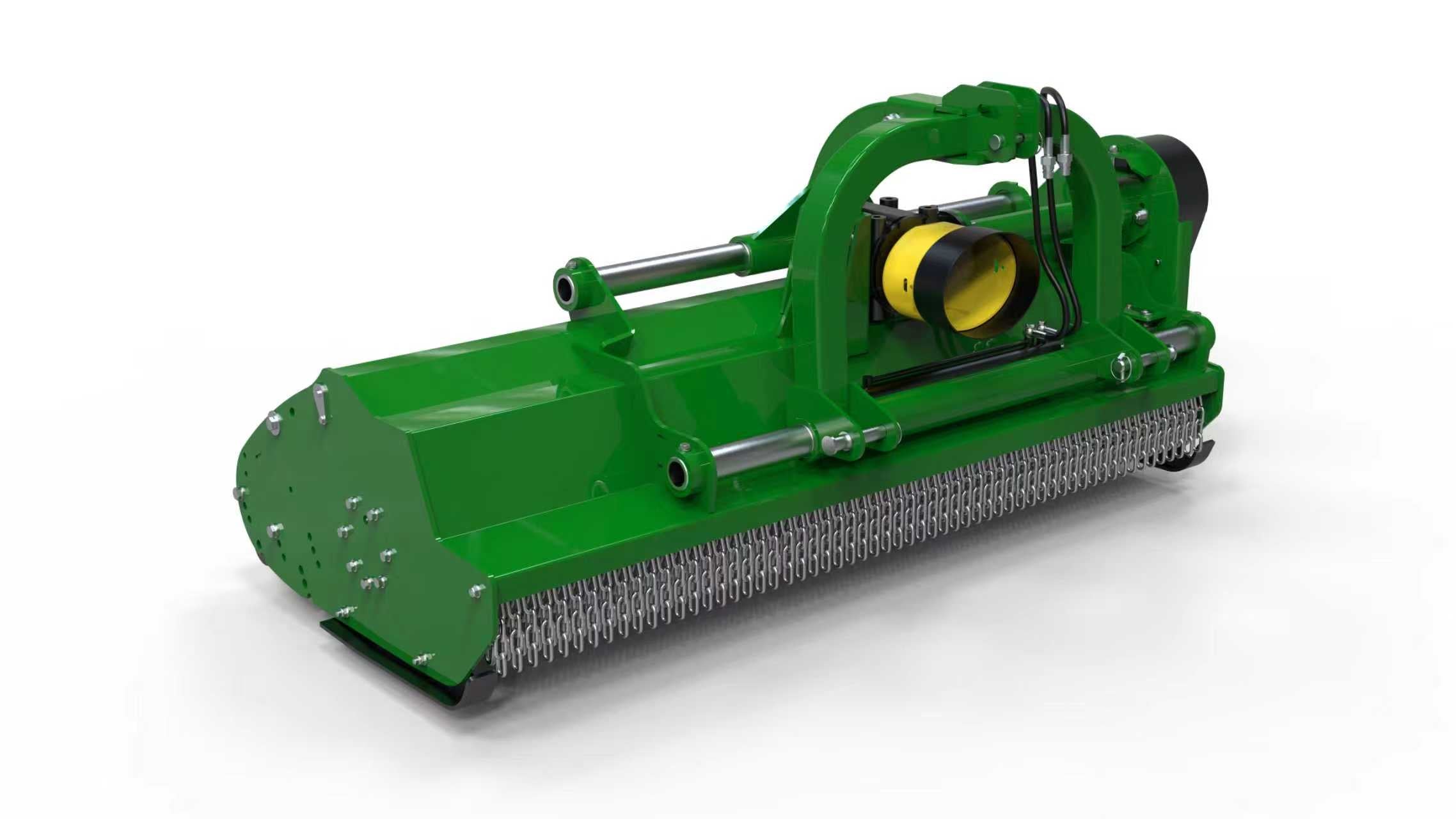

VMZ Heavy Duty Hydraulic Side Shift Mulcher For 60-110HP Tractors - Cloveragri - PTO shaft CE included.
The VMZ Series Heavy Duty Mulchers offers powerful, versatile performance for any cutting task. Its sturdy frame and high rotor rpm make it ideal for cutting grass, twigs, cornstalks, sucker re-growth and other tough materials. The mulchers hydraulic side shift and rear open bonnet ensures ease of use and maintenance.
OVERVIEW
The quality robust construction of the Cloveragri Heavy Duty VMZ Mulcher Mower Series makes them stand out from its competitors. Heavy duty special reinforced angular gearbox, heavy duty drive shaft and 1.2kg hammer blades with rear open bonnet are just some of the outstanding features.
The heavy duty VMZ Mulcher series is well suited to farm tractors from 60hp upwards.
A mulcher mower advantage over a slasher is :
1. Manoeuvrability
2. Superior finish ( no windrows )
3. Better rejuvenation of the pasture.
The Modern design and technology of a mulcher is fast replacing the old traditional Slasher. The safety is also improved with a mulcher as all pasture is cut inside the main body and only discharged as finer less dangerous clippings.
The heavy duty mulcher series are driven using a supplied P.T.O shaft via the tractors rear mounted Power Take Off ( PTO ). Being offset to the right hand side of the tractor allows the mulcher to easily cut close to fence lines or under trees.
Due to the open rear bonnet, maintenance work or changing hammer blades is easily accessible. Please be informed that the bonnet has to be closed while operating.
The specially hardened, 1.2 kg hammer blades, which are arranged on a double spiral drive shaft, shred clippings to a minimum size. Even very high grass, bushy or straw-like re-growth are no problem for this mower!

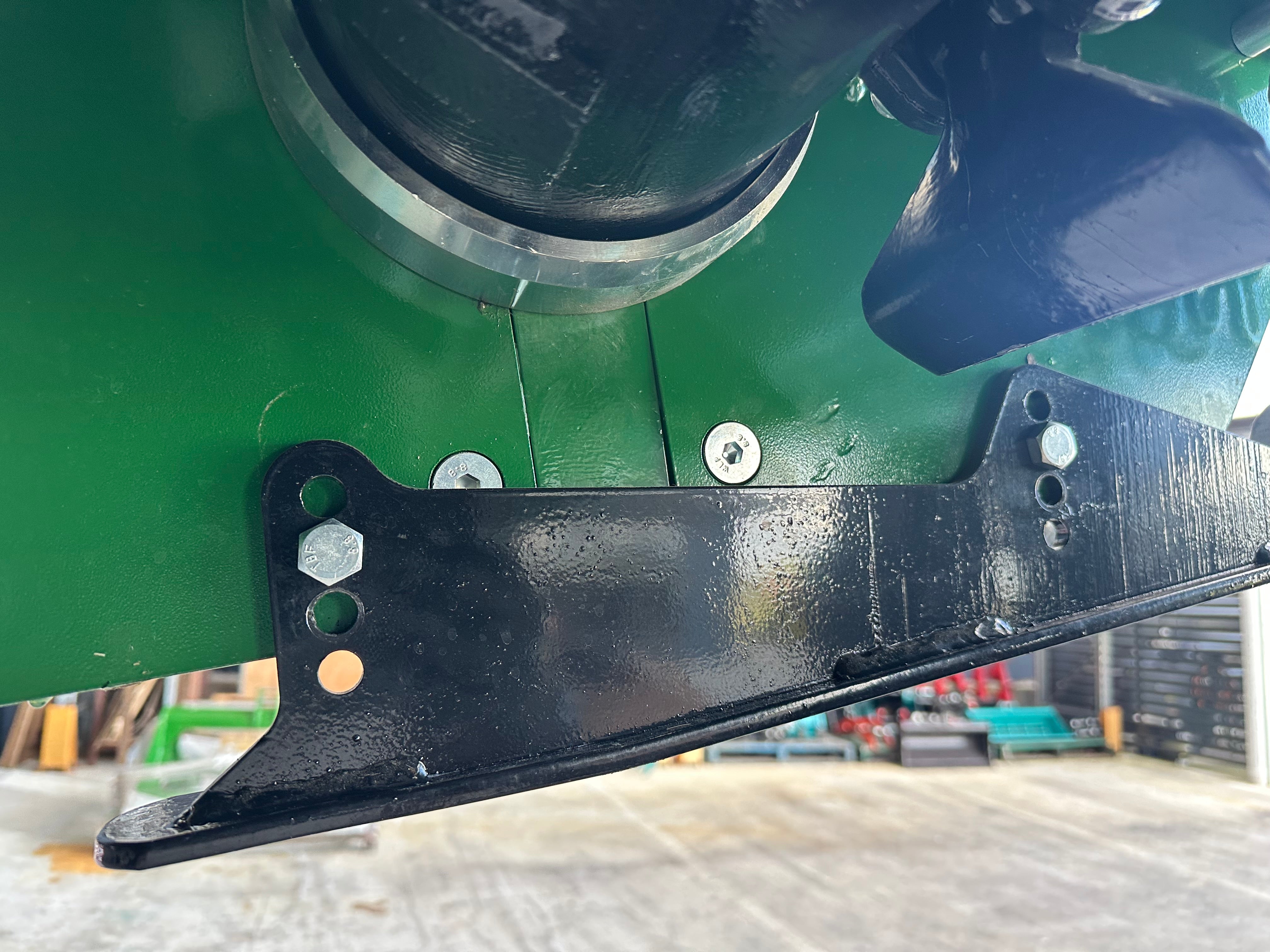

The mulcher additionally has a trailing roller and a freewheel gearbox. The cutting height can be set with the adjustable roller and side mounted skids. The suspended, galvanized safety covers at the front of the mower unit prevents stones or other foreign objects escaping.
Hydraulic side shift comes standard on the VMZ Series. By using the hydraulic side shift function the mulcher can be moved to both left and right. For this function you need a hydraulic control circuit on your tractor ( hydraulic remote outlet ), as the mower unit has a double-action hydraulic cylinder for this purpose.
The VMZ heavy Duty Mulcher Series is compatibility with various tractor brands equipped with Cat. 2 three-point linkages, including Fiat, Ford, New Holland T4, Deutz-Fahr, Landini Rex, John Deere 4, Kubota L-M, Lamborghini, Goldoni, CASE and more, ensures its adaptability to different agricultural setups. Whether you're tending to crops, cleaning uncultivated land, or maintaining pastures, the VMZ Heavy Duty Mulcher offers reliable performance and compatibility across diverse agricultural environments.
BENEFITS & FEATURES
- Hydraulic side shift.
- Specially hardened, 1.2 kg hammer blades
- 5 high resistance b section drive belts, and external belt tensioner.
- 168mm electronically balanced rotor.
- Self-cleaning rear roller and side skids. Rear bonnet can be opened for maintenance purposes.
- Reinforced rotor support fixed to the frame by 6 strong bolts for additional strength.
- PTO shaft CE included.
- 10mm sidewall thickness, 5mm double skinned thickness, 8mm skid thickness
- Stick Rakes ( removable )
- Adjustable trailing roller 150 mm diameter
VMZ SPECIFICATIONS
|
Models |
VMZ190 |
VMZ220 |
|
Working width |
1900mm |
2200mm |
|
Overall width |
2050mm |
2350mm |
|
Min / Max cutting height |
10 - 75mm |
10 - 75mm |
|
Weight |
640kg |
730kg |
|
Overall height |
990mm |
990mm |
|
Tractor Power Range |
60 – 80hp |
70 – 100hp |
|
3 point linkage |
Cat. 2 |
Cat. 2 |
|
Gearbox rating |
75hp |
75hp |
|
Hood height |
550mm |
550mm |
|
Cutting Blades |
Hammers |
Hammers |
|
Maximum cutting diameter |
50 - 60mm |
50 - 60mm |
|
Overall length |
1050mm |
1050mm |
|
Distance between pto attachment and ground |
580mm |
580mm |
|
Main hood thickness |
5mm |
5mm |
|
Sides thickness |
10mm |
10mm |
|
Skid thickness |
8mm |
8mm |
|
Paint |
Powder coated |
Powder coated |
|
Transmission: Drive method |
V-Belts |
V-Belts |
|
Transmission: PTO |
540 r/min |
540 r/min |
|
Transmission: Rotation of gearbox |
Right side |
Right side |
|
Transmission: Free wheel |
Yes |
Yes |
|
Transmission: RPM Rotor speed |
2403rpm |
2403rpm |
|
Transmission: Oil in the gearbox |
80W-90 Gear Oil |
80W-90 Gear Oil |
|
Transmission: Top pulley ø |
230mm |
230mm |
|
Transmission: Lower pulley ø |
155mm |
155mm |
|
Transmission: V-Belts quantity |
5 |
5 |
|
Transmission: V-Belts size |
17x1321 |
17x1321 |
|
Rotor: diameter |
168mm |
168mm |
|
Rotor: bearings type and size |
1309 |
1309 |
|
Rotor: balancing |
Electronic |
Electronic |
|
Rotor: sheet thickness |
10mm |
10mm |
|
Hammers: Weight |
1.2 kg |
1.2 kg |
|
Hammer: øhole |
16mm |
16mm |
|
Hammer: base width |
140mm |
140mm |
|
Hammer: top width |
40mm |
40mm |
|
Hammer: Diagonal |
97mm |
97mm |
|
Rear roller: diameter |
152mm |
152mm |
|
Rear roller: sheet thickness |
6mm |
6mm |
|
Rear roller: bearings type and size |
6308 |
6308 |
|
PTO shaft |
08B-900 |
08B-900 |
|
Packing sizes |
2150*1150*950mm |
2450*1150*950mm |
- Please Note : Tractor requires single rear hydraulic remotes to operate the VMZ Hydraulic Side Shift.
- Pictures for illustration purpose only. Specifications and prices are subject to change without notice.
VMZ PRODUCT SPECIFICATIONS
| Mod. |  |
 |
|
 |
 |
 |
 |
 |
 |
A |
B |
C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CM |
Min. |
Max. |
CM |
n° |
n° |
n° |
RPM |
n° |
CM |
CM |
CM |
|
VMZ190 |
189 |
60 |
80 |
52 137 / 102 87 |
18 |
N/M |
5 |
540 |
12 |
205 |
105 |
110 |
|
VMZ220 |
219 |
70 |
100 |
52 167 / 102 117 |
20 |
N/M |
5 |
540 |
14 |
235 |
105 |
110 |
|
VMZ240 |
239 |
80 |
110 |
52 187 / 102 137 |
22 |
N/M |
5 |
540 |
16 |
255 |
105 |
110 |
PRODUCT DIMENSIONS DIAGRAM
